Putlog, Putlog Truss for Frame Scaffolding

Scaffold Putlogs are used to span doorways to build around obstructions to connect frame towers and to solve other long-span applications.

Item NO.:
PUTLOG
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
200PCS
Color:
Powder Coated / Painted Blue, Red, Orange, Yellow
Ｍaterial:
Steel

Inquire now

Product Detail

Scaffold Putlogs

Code	Description	Materials	Size	Weight(kg)	Weight(lbs)
P.8N	8' Putlog (Narrow)	Ø42x2.3mm, Ø25x1.8mm, Q235-Q355; (Tube dia.1.65"x0.09"t, dia.1"x0.071"t)	2438mm (8')	11.92	26.28
P.12N	12' Putlog (Narrow)		3658mm (12')	17.67	38.96
P.12W	12' Putlog (Wide)		3658mm (12')	24.69	54.44
P.16W	16' Putlog (Wide)		4877mm (16')	32.63	71.95
P.17W	17' Putlog (Wide)		5182mm (17')	34.30	75.63
P.20W	20' Putlog (Wide)		6096mm (20')	40.56	89.43
P.22W	22' Putlog (Wide)		6706mm (22')	44.53	98.19
P.24W	24' Putlog (Wide)		7315mm (24')	48.50	106.94
P.16T	16' Putlog Truss		4877mm (16')	27.57	60.79
P.17T	17' Putlog Truss		5182mm (17')	28.94	63.81
P.18T	18' Putlog Truss		5486mm (18')	30.31	66.83
P.22T	22' Putlog Truss		6706mm (22')	41.66	91.86
P.PSP3	3' Putlog Spreader		914mm (3')	4.45	9.81
P.PSP4	4' Putlog Spreader		1219mm (4')	5.97	13.16
P.PSP5	5' Putlog Spreader		1524mm (5')	7.49	16.52
P.PSP6	6' Putlog Spreader		1829mm (6')	9.01	19.87
P.PHP6	6" Putlog Hanger Parallel	Plate t=6-8mm; Q235; (Plate t=0.236", 0.315")	152mm (6")	2.07	4.56
P.PHRA6	6" Putlog Hanger Right Angle		152mm (6")	2.31	5.09
P.PHRA12	12" Putlog Hanger Right Angle		305mm (12")	4.02	8.86

*Surface Treatment: Powder Coated, Painted

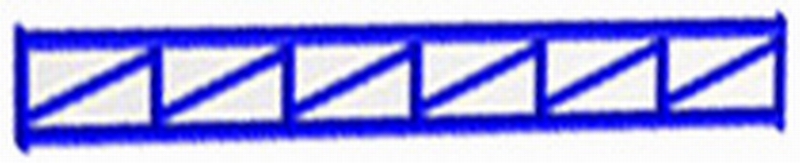

Putlog Narrow

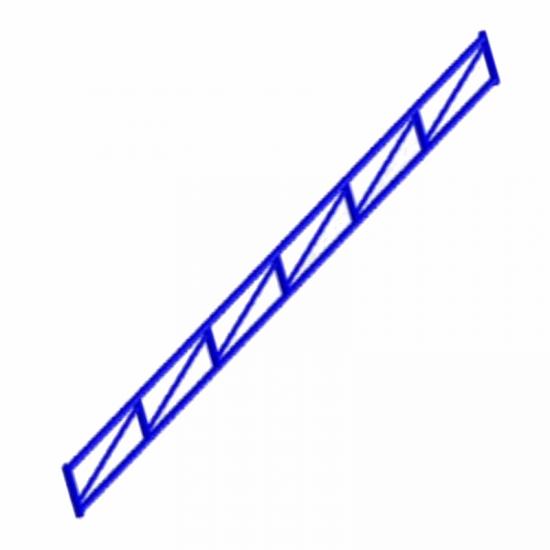

Putlog Wide

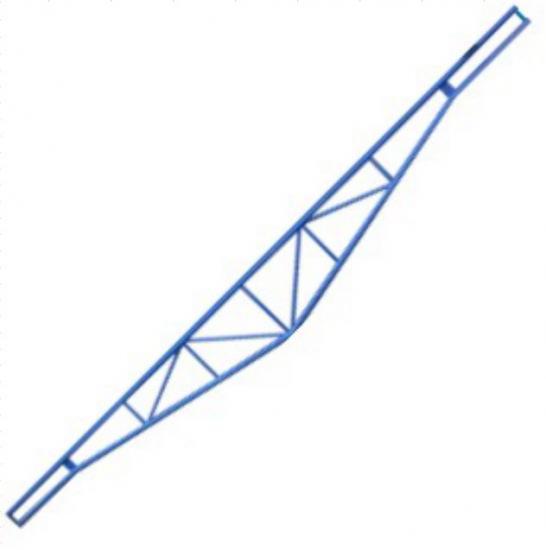

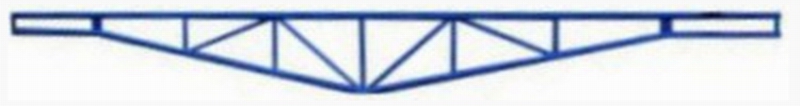

Putlog Truss

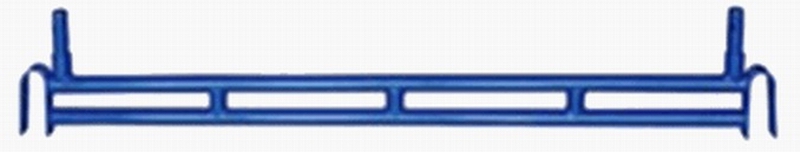

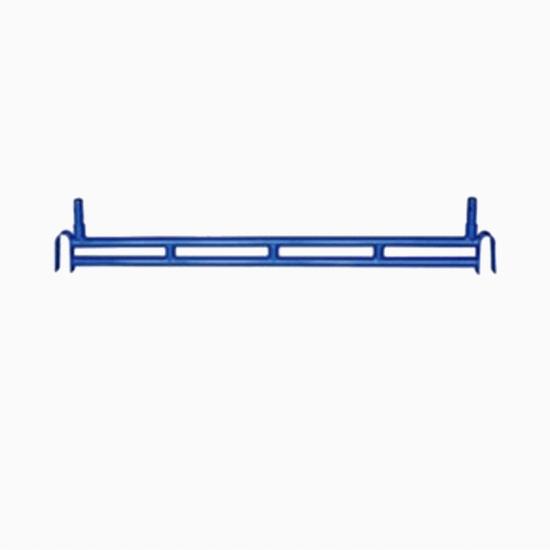

Putlog Spreader

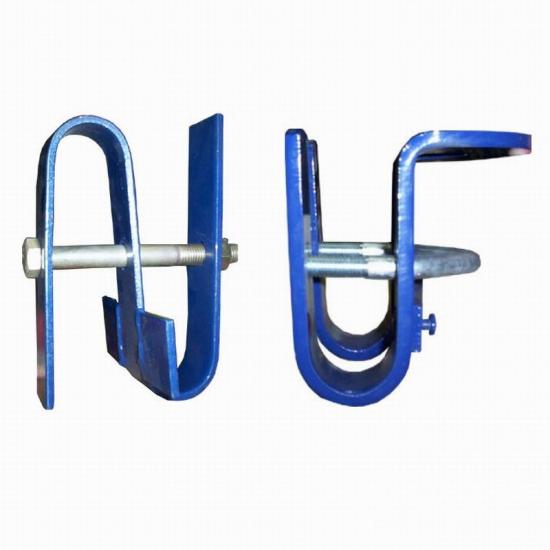

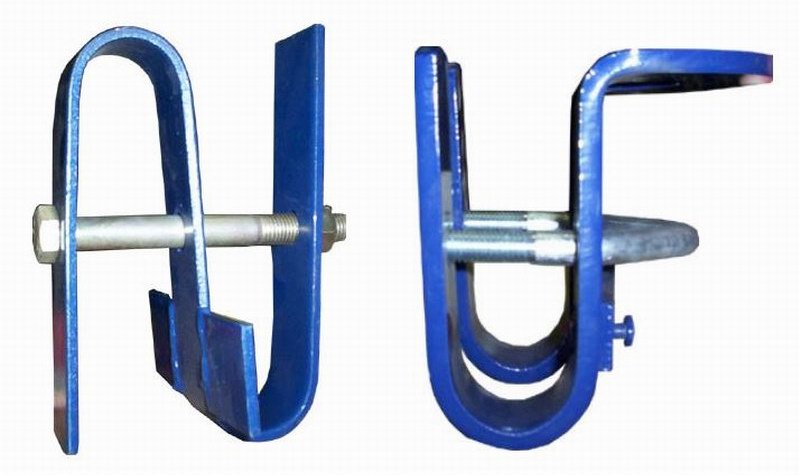

Putlog Hangers
