DROP LOCK SERIES FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.43x2.5mm (OD.1.69"x0.095" thickness)
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Drop Lock
* First lock down 152mm(6") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2')
* Coupling Pin: CP1 (Coupling Pin with 1" Collar) or CP2 (Taped Coupling Pin with 1" Collar)
* Finishing options: Powder Coating, Hot dip galvanized

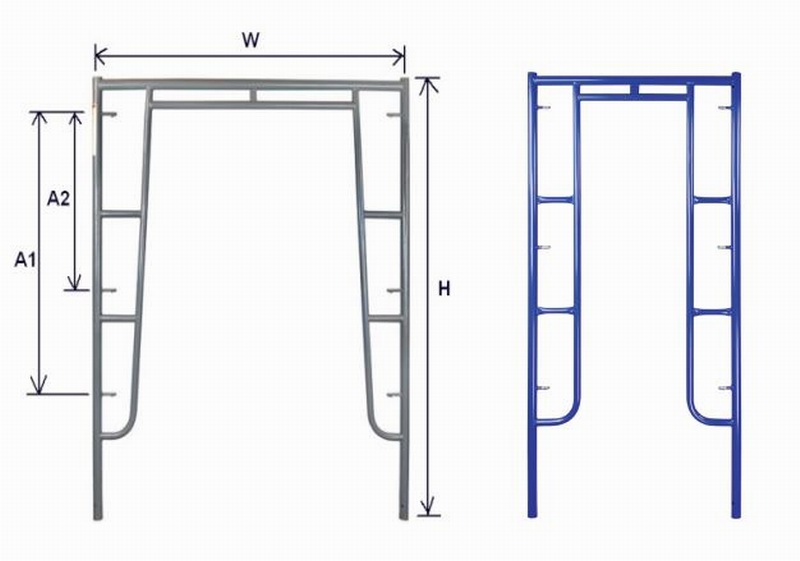

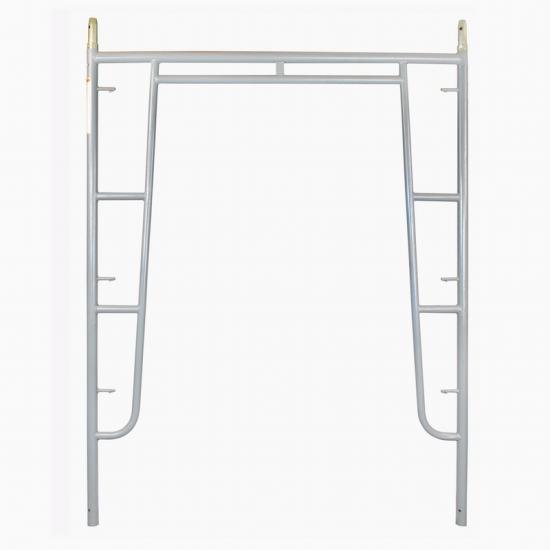

Walk Thru Frame / Arch Frame with Drop Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| TF.DL.564 | 5'x6'4" Walk Thru Frame | 1524mm (5') | 1930mm (6'4") | 48",28" | 22.20 | 48.95 |
| TF.DL.464 | 4'x6'4" Walk Thru Frame | 1219mm (4') | 1930mm (6'4") | 48",24" | 20.42 | 45.03 |
| TF.DL.364 | 3'x6'4" Walk Thru Frame | 914mm (3') | 1930mm (6'4") | 48",24" | 19.21 | 42.36 |
| TF.DL.264 | 2'x6'4" Walk Thru Frame | 610mm (2') | 1930mm (6'4") | 48",24" | 17.86 | 39.38 |
| TF.DL.55 | 5'x5' Walk Thru Frame | 1524mm (5') | 1524mm (5') | 48",24" | 18.23 | 40.20 |
| TF.DL.45 | 4'x5' Walk Thru Frame | 1219mm (4') | 1524mm (5') | 48",24" | 16.62 | 36.65 |
| TF.DL.35 | 3'x5' Walk Thru Frame | 914mm (3') | 1524mm (5') | 48",24" | 15.41 | 33.98 |

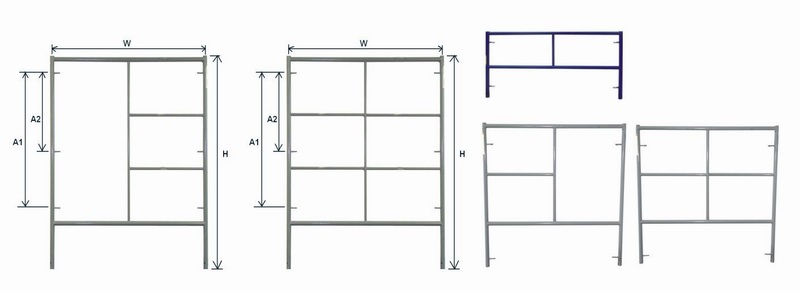

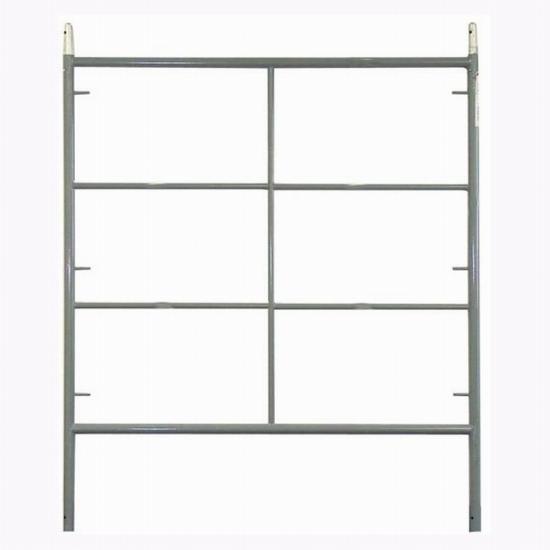

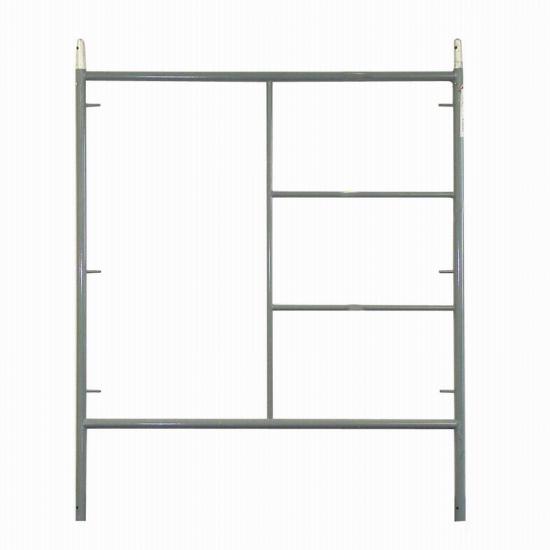

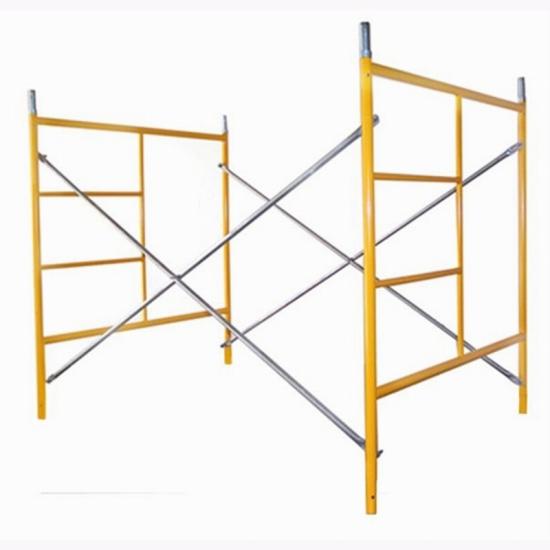

Masonry Frame / Box Frame with Drop Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| SBF.DL.564 | 5'x6'4" Single Box Frame | 1524mm (5') | 1930mm (6'4") | 48",28" | 21.18 | 46.70 |
| DBF.DL.564 | 5'x6'4" Double Box Frame | 1524mm (5') | 1930mm (6'4") | 48",28" | 22.68 | 50.01 |
| SBF.DL.55 | 5'x5' Single Box Frame | 1524mm (5') | 1524mm (5') | 48“ | 17.80 | 39.25 |
| SBF.DL.54 | 5'x4' Single Box Frame | 1524mm (5') | 1219mm (4') | 36” | 15.99 | 35.26 |
| SBF.DL.45 | 4'x5' Single Box Frame | 1219mm (4') | 1524mm (5') | 48“ | 16.15 | 35.61 |
| SBF.DL.44 | 4'x4' Single Box Frame | 1219mm (4') | 1219mm (4') | 36” | 14.39 | 31.73 |
| DBF.DL.55 | 5'x5' Double Box Frame | 1524mm (5') | 1524mm (5') | 48“ | 18.55 | 40.90 |
| DBF.DL.54 | 5'x4' Double Box Frame | 1524mm (5') | 1219mm (4') | 36” | 16.73 | 36.89 |
| DBF.DL.45 | 4'x5' Double Box Frame | 1219mm (4') | 1524mm (5') | 48“ | 16.74 | 36.91 |
| DBF.DL.44 | 4'x4' Double Box Frame | 1219mm (4') | 1219mm (4') | 36” | 14.99 | 33.05 |
| BX.DL.43 | 4'x3' Box Frame | 1219mm (4') | 914mm (3') | 24“ | 11.92 | 26.28 |
| BX.DL.53 | 5'x3' Box Frame | 1524mm (5') | 914mm (3') | 24“ | 13.45 | 29.66 |

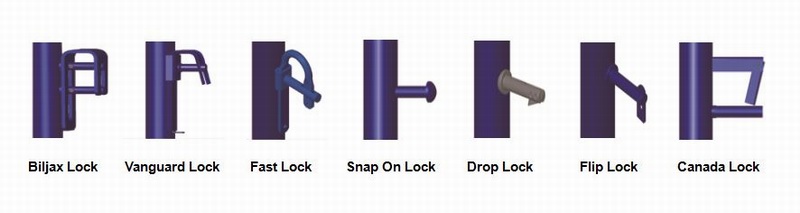

Typical Locking Device Options for American Scaffolding Frame
