Snap On Cross Braces for American Scaffolding Frames

Snap On Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.

  • Item NO.:

    BRSO
  • Lead Time:

    20days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500pairs
  • Color:

    Galvanized Colour
  • Material:

    Steel
  • Product Detail

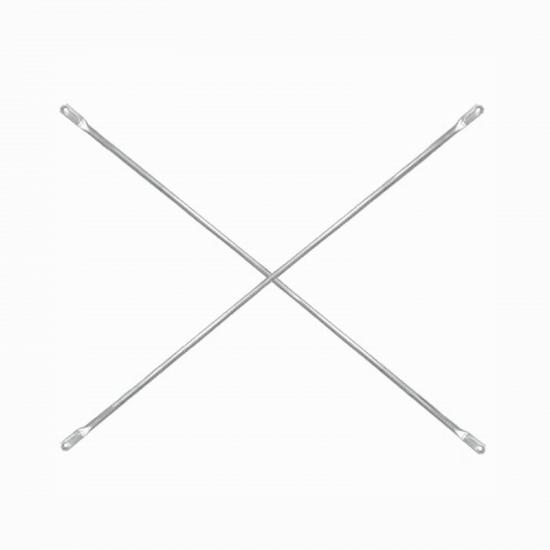

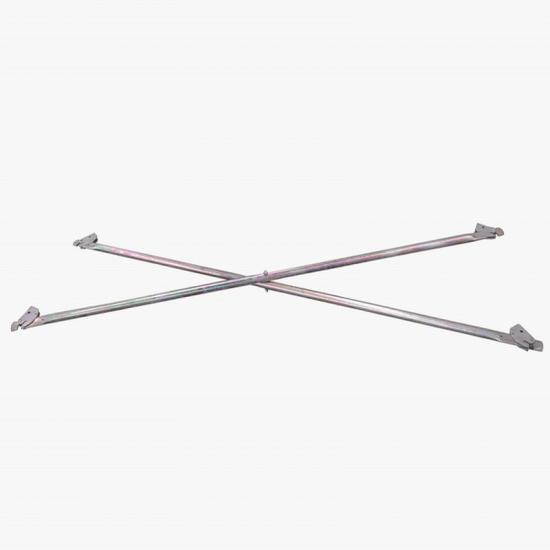

Snap On Cross Brace / X-Braces for Scaffolding Frames

Features:

* They are used for Snap on Lock Frame Scaffolding Only.

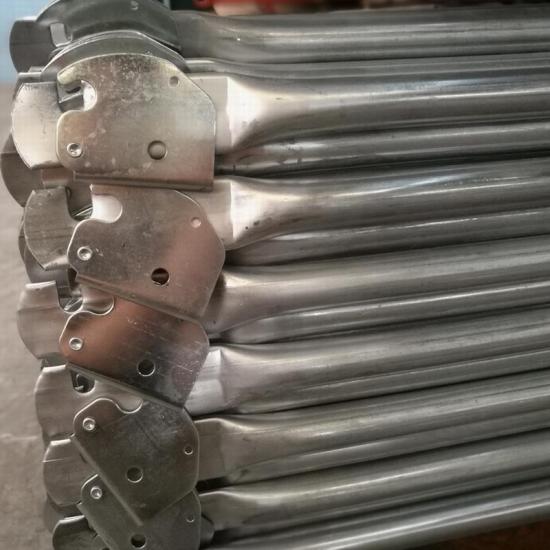

* They are made by dia. 1" x 0.071"t (O.D25.4x1.8mm) pre-galvanized tubes, or made by black tubes and then do electric galvanized. Various lengths are available.

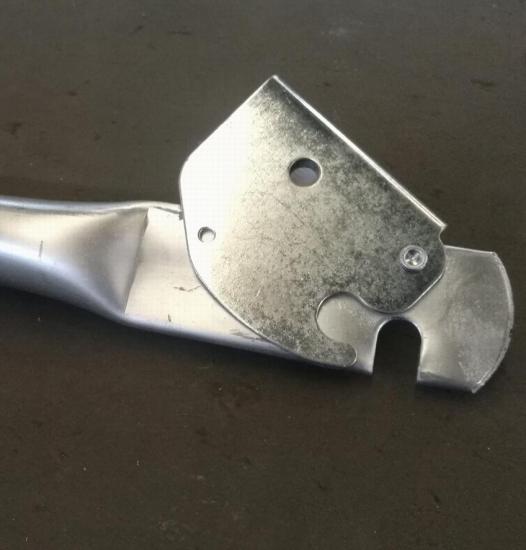

* No cracking at two ends atfer punching.

* Long lasting from being rusted.

* Save much cost, cheaper than hot dip galvanized

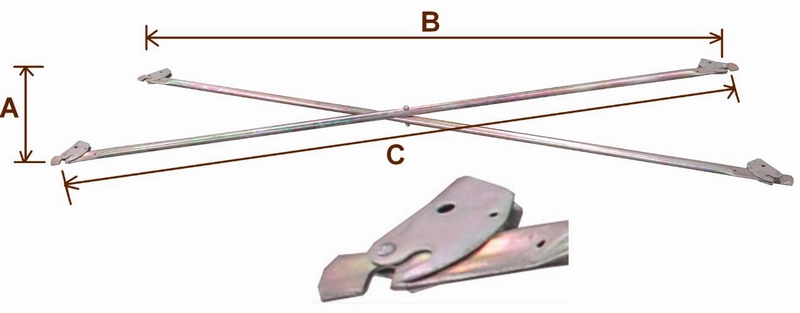

Code Size BxA (Metric) Size BxA (Imperial) Weight(kg) Weight(lbs)
 BRSO.104 3048x1219mm 10'x4' 7.41  16.34
 BRSO.103 3048x914mm 10'x3' 7.20  15.88
 BRSO.1034 3048x864mm 10'x34" 7.17  15.81
 BRSO.1032 3048x813mm 10'x32" 7.15  15.77
 BRSO.102 3048x610mm 10'x2' 7.05  15.55
 BRSO.101 3048x305mm 10'x1' 6.96  15.35
 BRSO.84 2438x1219mm 8'x4' 6.26  13.80
 BRSO.83 2438x914mm 8'x3' 6.01  13.25
 BRSO.82 2438x610mm 8'x2' 5.82  12.83
 BRSO.74 2134x1219mm 7'x4' 5.71  12.59
 BRSO.742 2134x1067mm 7'x42" 5.56  12.26
 BRSO.73 2134x914mm 7'x3' 5.43  11.97
 BRSO.734 2134x864mm 7'x34" 5.39  11.88
 BRSO.732 2134x813mm 7'x32" 5.35  11.80
 BRSO.72 2134x610mm 7'x2' 5.22  11.51
 BRSO.71 2134x305mm 7'x1' 5.09  11.22
 BRSO.64 1829x1219mm 6'x4' 5.18  11.42
 BRSO.62 1829x610mm 6'x2' 4.62  10.19
 BRSO.54 1524x1219mm 5'x4' 4.67  10.30
 BRSO.53 1524x914mm 5'x3' 4.31  9.50
 BRSO.534 1524x864mm 5'x34" 4.26  9.39
 BRSO.532 1524x813mm 5'x32" 4.21  9.28
 BRSO.52 1524x610mm 5'x2' 4.03  8.89

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we

how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
Related products
Puched Hole Cross Braces
Punched Hole Cross Braces for H Frames
Punched Hole Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.
View More
Punched Hole Guard Rail Brace
Punched Hole Guard Rail Brace for Frame Scaffolding
Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform. Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person f1
View More
Snap On Guard Rail
Galvanized Snap On Guard Rail Braces for Scaffolding Frames
Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform. Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person f1
View More
7' Bay Internal Stair
7' Bay Internal Stair for American Frame Scaffolding
Internal Stair is the stairway solutions for temporary access. 7' Bay Internal Stairs towers are constructed utilizing scaffolding frames,cross braces, guardrail brace, planks, stairs. The stair towers are set for7' scaffolding bay, and for 5', 6'4", 6'6", 6'7", 6'8" heights to meet different frame heights.
View More
Ring Lock Scaffolding Standard
Ring Lock Scaffolding Standard / Vertical (Short Spigot)
Ringlock Scaffolding,also called Allround scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in build1
View More
Tubular Side Bracket
Powder Coated Tubular Side Bracket with Saddle Hanger
Side brackets allow for the extension of the scaffold platform beyond the legs, usually by a multiple of plank widths. When used with frame scaffolds, the side bracket is placed at the leg and is parallel to the frame or bearer. Tubular Side Bracket is the kind of bracket that made by dia.1.65"x0.09"t (O.D 42x2.3mm) steel tube and with saddle hange1
View More

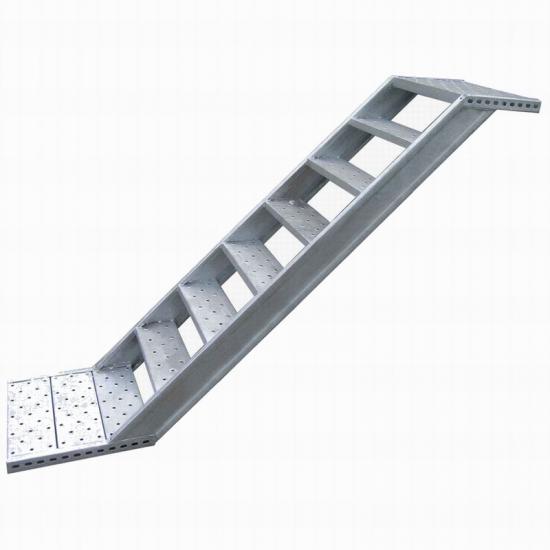

1.5m Kwistage Scaffolding Stairway
