Ring Lock Scaffolding System for Residential Construction

Galvanized Snap On Guard Rail Braces for Scaffolding Frames

Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform.


Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person from leaving the area bounded by the platform.

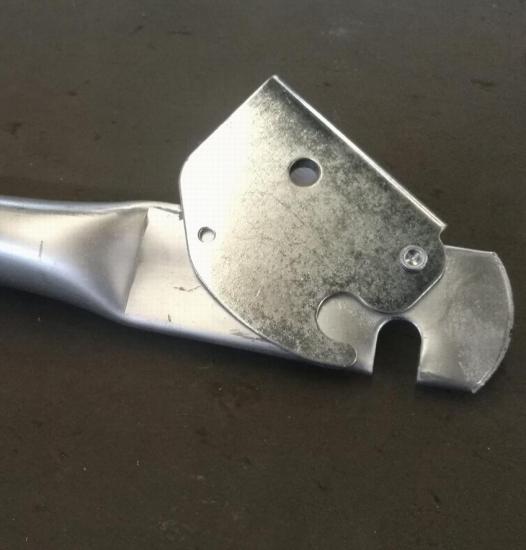

Snap On Guard Rail is matched for Snap on Series Frame Scaffolding and Guardrail Post.

  • Item NO.:

    GRSO
  • Lead Time:

    20days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500PCS
  • Color:

    Galvanized Colour
  • Material:

    Steel
  • Product Detail

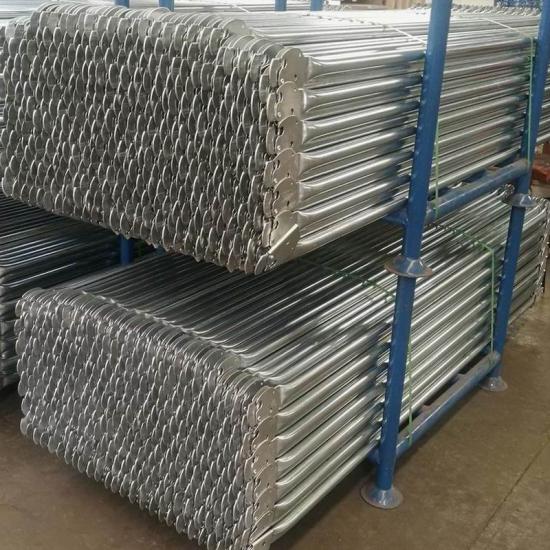

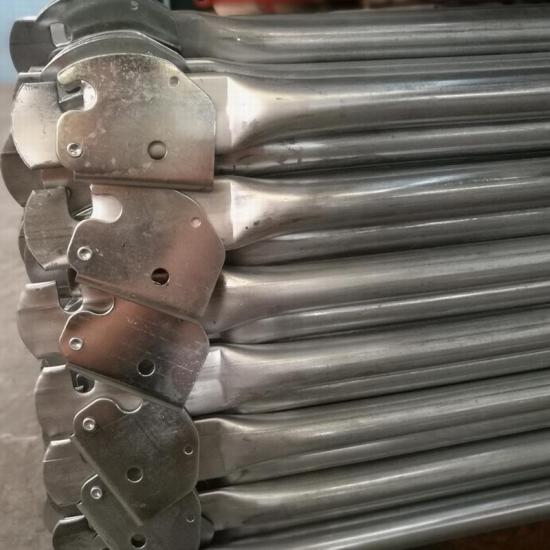

Snap On Guard Rails

Code Size (Metric) Size  (Imperial) Weight(kg) Weight(lbs)
 GRSO.10 3048mm 10' 4.93  10.87
 GRSO.8 2438mm 8' 4.03  8.89
 GRSO.7 2134mm 7' 3.58  7.89
 GRSO.6 1829mm 6' 3.13  6.90
 GRSO.5 1524mm 5' 2.67  5.89
 GRSO.4 1219mm 4' 2.22  4.90
 GRSO.3 914mm 3' 1.77  3.90
 GRSO.2 610mm 2' 1.32  2.91
