Ring Lock Scaffolding System for Residential Construction
Aluminum Scaffolding Tower
Home

Aluminum Scaffolding

Aluminum Scaffolding Tower

6061-T6 Aluminium Mobile Scaffolding Tower

Aluminium Mobile Scaffolding Tower
Aluminium Mobile Scaffolding Tower Aluminium Mobile Scaffolding Tower Aluminium Mobile Scaffolding Tower Aluminium Mobile Scaffolding Tower Aluminium Mobile Scaffolding Tower

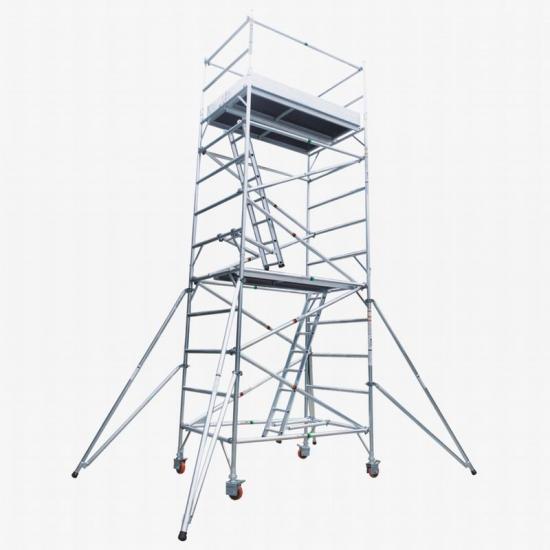

6061-T6 Aluminium Mobile Scaffolding Tower

Aluminum Mobile scaffolding tower is widely used in exhibition setups, indoor decoration or outside construction. It can be movable with caster wheels.We also can customize it according to your drawings.


Components of a complete set scaffolding tower: Rung Frame, Rung Ladder Frame,Horizontal Brace, Diagonal Brace, Plain Brace, Stabilizer, Joint Pin/Spigot, Handrail, Platform/Trapdoor Platform, Toe Board, Caster Wheel.

  • Item NO.:

    AMS

  • Lead Time:

    40days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    200PCS

  • Color:

    Self-Colour; Powder Coating Colour
Inquire now
  • Product Detail
Advantages of Aluminum Scaffolding:
* Light weight but high strength
* Anti-corrosion
* Anti-rust
* Easy assembly and dismantlement
* Safe and firm structure
* Easy to transport and store

* Adjustable to different working heights


EN1004:2004 Design Requirements:

Tower Type Width (m) Length (m) Height (m) Material Safety Working Load Load Class
Single Width 0.75m 1.8m, 2.0m, 2.5m, 3.0m Inner Door: 12m;  Outer door: 8m Alloy tube Ø50.8x2.0mm, 6061-T6 2kN/m2 3
Double Width 1.35m 1.8m, 2.0m, 2.5m, 3.0m 2kN/m2 3



Scaffolding Component Details:

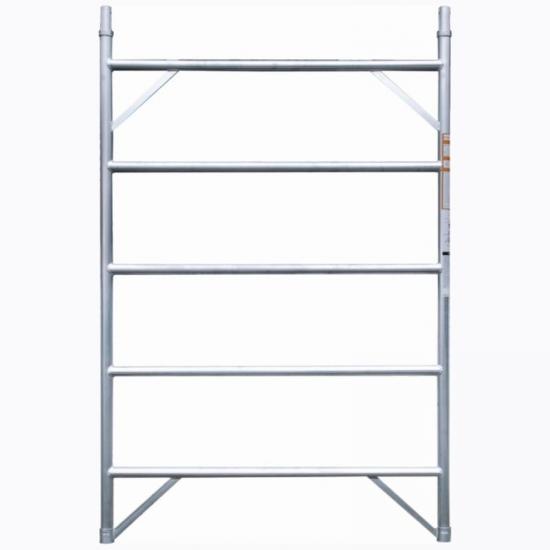

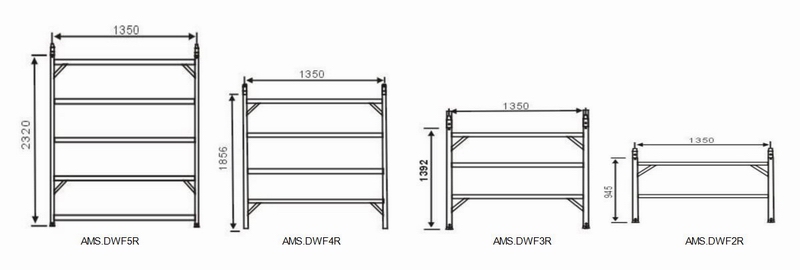

Aluminum Mobile Scaffold Rung Frame

Code Description Frame Size (WxH) Weight (kg) Weight (lbs)
AMS.DWF5R 5-Rung Double Width Frame 1350x2320mm 11.36  25.05
AMS.DWF4R 4-Rung Double Width Frame 1350x1856mm 9.49  20.93
AMS.DWF3R 3-Rung Double Width Frame 1350x1392mm 7.62  16.80
AMS.DWF2R 2-Rung Double Width Frame 1350x945mm 4.68  10.32

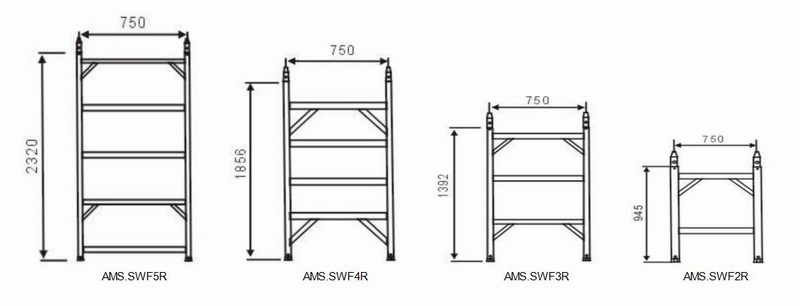

AMS.SWF5R 5-Rung Single Width Frame 750x2320mm 8.86  19.54
AMS.SWF4R 4-Rung Single Width Frame 750x1856mm 7.49  16.52
AMS.SWF3R 3-Rung Single Width Frame 750x1392mm 6.12  13.49
AMS.SWF2R 2-Rung Single Width Frame 750x945mm 3.69  8.14

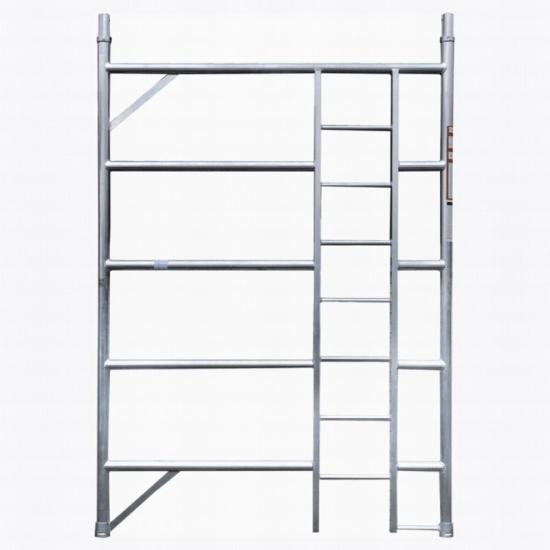

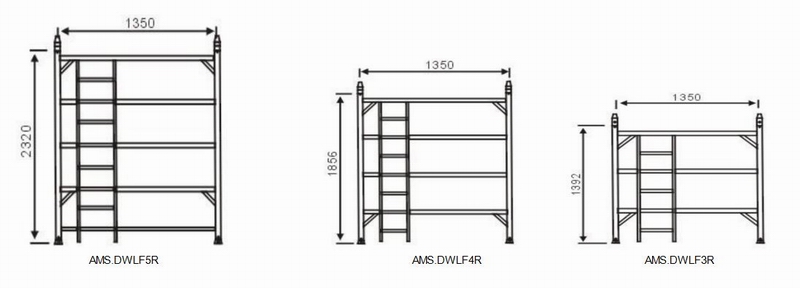

AMS.DWLF5R 5-Rung Double Width Ladder Frame 1350x2320mm 13.98  30.83
AMS.DWLF4R 4-Rung Double Width Ladder Frame 1350x1856mm 11.45  25.25
AMS.DWLF3R 3-Rung Double Width Ladder Frame 1350x1392mm 9.03  19.91

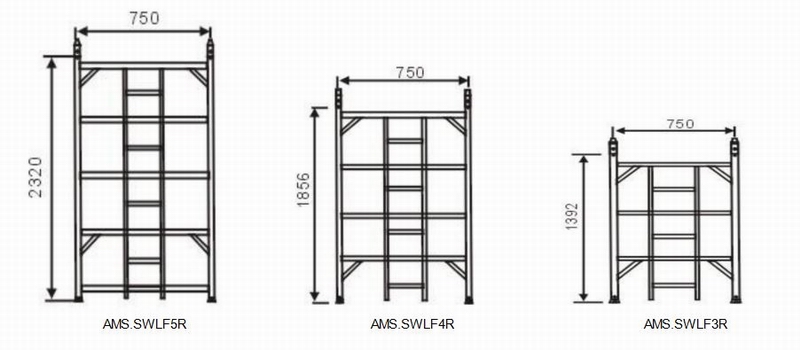

AMS.SWLF5R 5-Rung Single Width Ladder Frame 750x2320mm 11.49  25.34
AMS.SWLF4R 4-Rung Single Width Ladder Frame 750x1856mm 9.46  20.86
AMS.SWLF3R 3-Rung Single Width Ladder Frame 750x1392mm 7.54  16.63

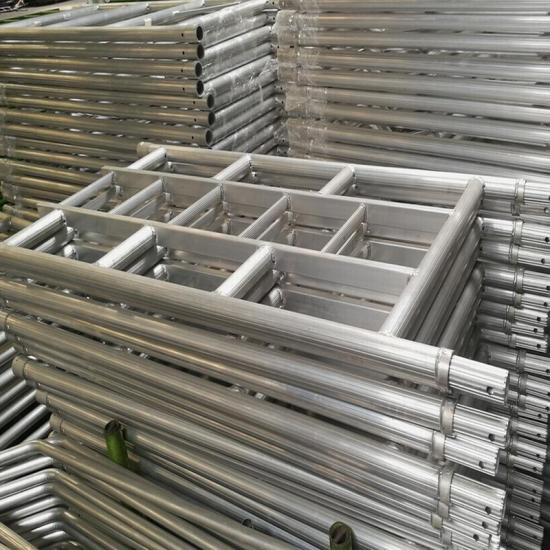

Aluminium Mobile Scaffolding
Mobile Scaffolding Tower
aluminum tower scaffold
aluminum scaffold tower


Aluminum Mobile Scaffold Horizontal Brace (Ledger)


Code Description Size Weight (kg) Weight (lbs)
AMS.HB.180 1.8M Horizontal Brace 1800mm 2.16  4.76
AMS.HB.200 2.0M Horizontal Brace 2000mm 2.32  5.12
AMS.HB.250 2.5M Horizontal Brace 2500mm 2.74  6.04
AMS.HB.300 3.0M Horizontal Brace 3000mm 3.15  6.95

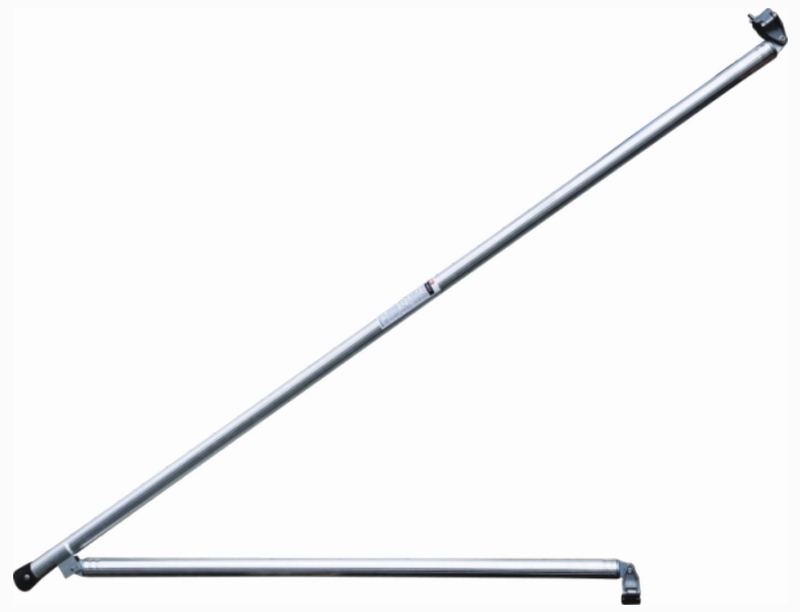

Aluminum Mobile Scaffold Diagonal Brace


Code Description Size Weight (kg) Weight (lbs)
AMS.DB.2025 Diagonal Brace 2025mm 1800x928mm 2.34  5.16
AMS.DB.2205 Diagonal Brace 2205mm 2000x928mm 2.49  5.49
AMS.DB.2666 Diagonal Brace 2666mm 2500x928mm 2.88  6.35
AMS.DB.3140 Diagonal Brace 3140mm 3000x928mm 3.27  7.21

Aluminum Diagonal Brace



Aluminum Mobile Scaffold Plain Brace


Code Description Size Weight (kg) Weight (lbs)
AMS.PB.1950 Plain Brace 1950mm 750x1800mm 2.28  5.03
AMS.PB.2136 Plain Brace 2136mm 750x2000mm 2.44  5.38
AMS.PB.2610 Plain Brace 2610mm 750x2500mm 2.83  6.24
AMS.PB.3092 Plain Brace 3092mm 750x3000mm 3.23  7.12
AMS.PB.2250 Plain Brace 2250mm 1350x1800mm 2.53  5.58
AMS.PB.2413 Plain Brace 2413mm 1350x2000mm 2.67  5.89
AMS.PB.2841 Plain Brace 2841mm 1350x2500mm 3.02  6.66
AMS.PB.3290 Plain Brace 3290mm 1350x3000mm 3.40  7.50

 Aluminum Plain Brace

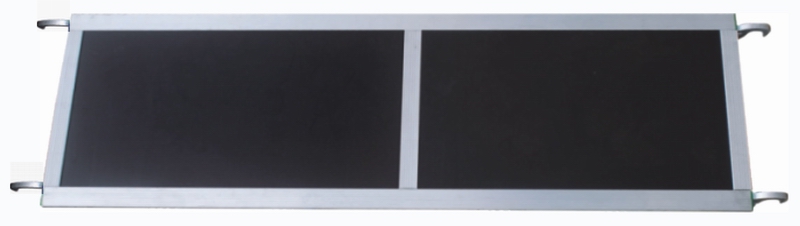

Aluminum Mobile Scaffold Plain Platform


Code Description Weight (kg) Weight (lbs)
AMS.PF.180 Plain Platform 610x1800mm 13.72  30.25
AMS.PF.200 Plain Platform 610x2000mm 14.98  33.03
AMS.PF.250 Plain Platform 610x2500mm 18.66  41.15
AMS.PF.300 Plain Platform 610x3000mm 22.38  49.35

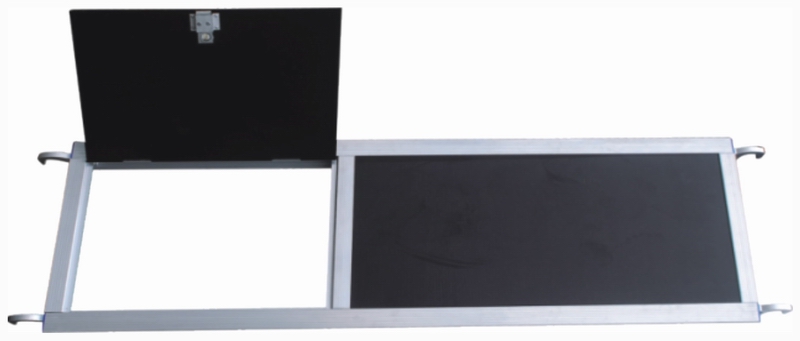

Aluminum Mobile Scaffold Trapdoor Platform

Code Description Weight (kg) Weight (lbs)
AMS.TPF.180 Trapdoor Platform 610x1800mm 14.62  32.24
AMS.TPF.200 Trapdoor Platform 610x2000mm 15.88  35.02
AMS.TPF.250 Trapdoor Platform 610x2500mm 19.60  43.22
AMS.TPF.300 Trapdoor Platform 610x3000mm 23.29  51.35

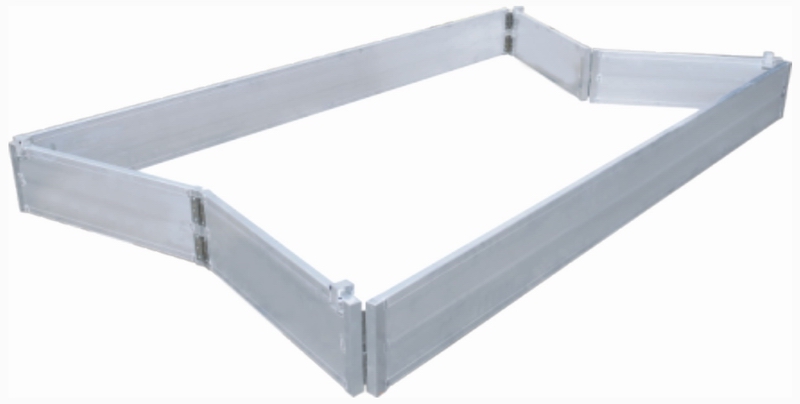

Aluminum Mobile Scaffold Toe Boards

Code Description Weight (kg) Weight (lbs)
AMS.TBD.135180 Toe Board 1350x1800mm 11.55  25.47
AMS.TBD.135200 Toe Board 1350x2000mm 12.19  26.88
AMS.TBD.135250 Toe Board 1350x2500mm 13.80  30.43
AMS.TBD.135300 Toe Board 1350x3000mm 15.40  33.96
AMS.TBD.075180 Toe Board 750x1800mm 9.63  21.23
AMS.TBD.075200 Toe Board 750x2000mm 10.27  22.65
AMS.TBD.075250 Toe Board 750x2500mm 11.88  26.20
AMS.TBD.075300 Toe Board 750x3000mm 13.40  29.55

aluminium working platform

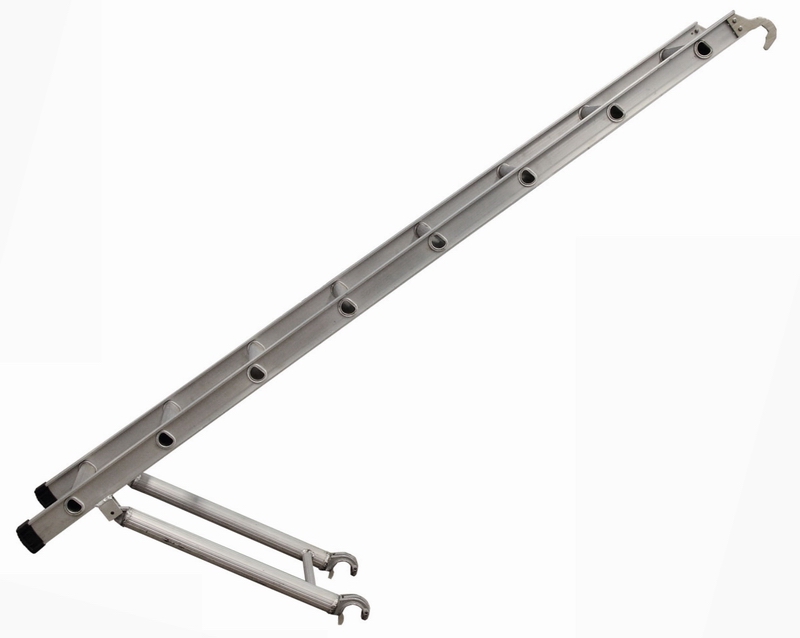

Aluminum Mobile Scaffold Inclined Ladder


Code Description Weight (kg) Weight (lbs)
AMS.CL.10 10-step Ladder 9.86  21.74
AMS.CL.9 9-step Ladder 9.18  20.24
AMS.CL.8 8-step Ladder 8.31  18.32
AMS.CL.7 7-step Ladder 7.19  15.85
AMS.CL.6 6-step Ladder 6.54  14.42
AMS.CL.5 5-step Ladder 5.71  12.59

aluminium working platform


Aluminum Mobile Scaffold Stabilizers


Code Description Weight (kg) Weight (lbs)
AMS.STB.250 Fixed Stabilizer 2.5M 4.93  10.87
AMS.STB.500 Large Stabilizer 5M 9.19  20.26

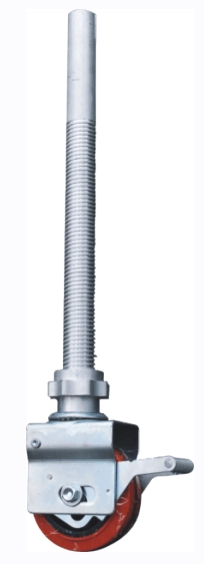

Aluminum Mobile Scaffold Caster Jack and Wheel

Code Description Weight (kg) Weight (lbs)
AMS.CJW.600 600mm Aluminium Caster Jack and 6" wheel 5.37  11.84
