Powder Coated Flip Lock American Scaffolding Frame

American Type Flip Lock Series Scaffolding Frame is designed and complied to the requirements of OHSA & ANSI A10.8. It is made by dia.1.625" or 1.69" high quality steel tubes with thickness 0.09" or 0.095". The locking device is flip lock. The frame is in 3' or 5' wide, and finishing is powder coating.

Item NO.:
FL
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Powder Coated Blue
Ｍaterial:
Steel

Inquire now

Product Detail

FLIP LOCK SERIES FRAME SCAFFOLDING

Product Features:

* Material Specification: Steel grade Q235/Q355, frame leg OD.42x2.3mm (OD.1.625"x0.09" thickness)

* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')

* Locking Device: Flip Lock

* First lock down 178mm(7") on frame leg

* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2')

* Coupling Pin: CP4 (Coupling Pin no Collar)

* Finishing options: Powder Coated, Painted, Hot dip galvanized.

Scaffolding Flip Lock Joint Pin with no Collar

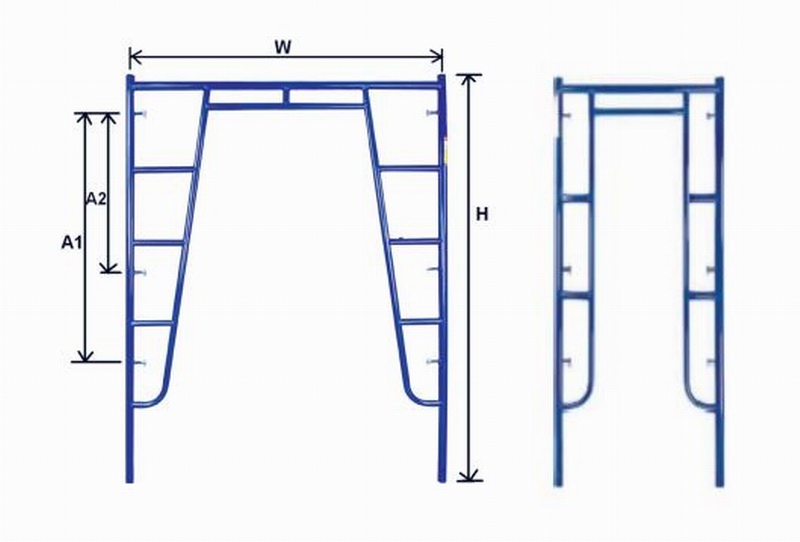

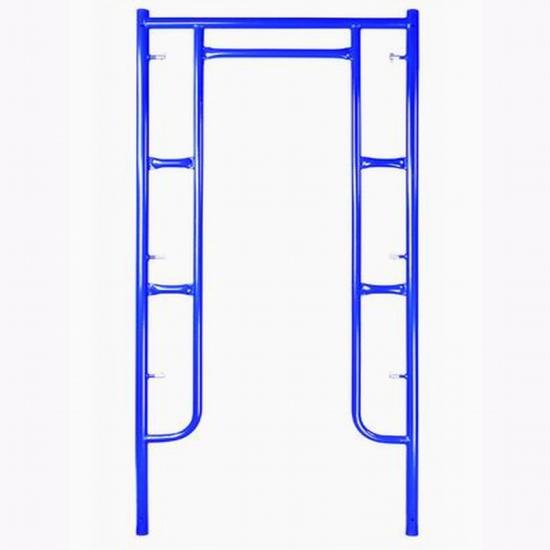

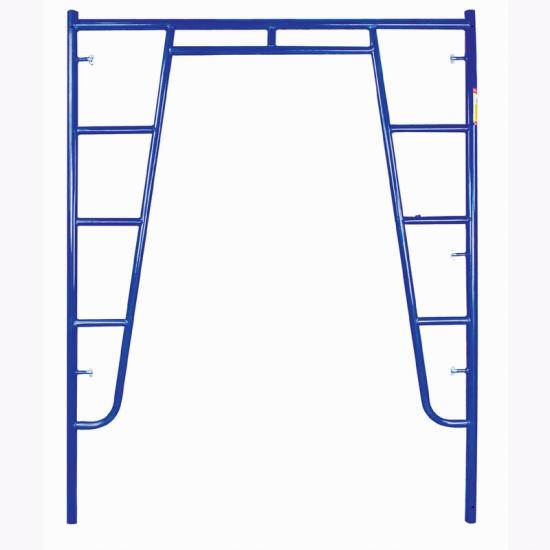

Walk Thru Frame / Arch Frame with Flip Lock

Code	Description	Width (W)	Height (H)	Lock Space (A)	Weight(kg)	Weight(lbs)
TF.FL.567	5'x6'7" Walk Thru Frame	1524mm (5')	2007mm (6'7")	48",30"	21.54	47.50
TF.FL.367	3'x6'7" Walk Thru Frame	914mm (3')	2007mm (6'7")	48",30"	18.42	40.62
TF.FL.3667	3'6"x6'7" Walk Thru Frame	1067mm (3'6")	2007mm (6'7")	48",30"	19.27	42.49

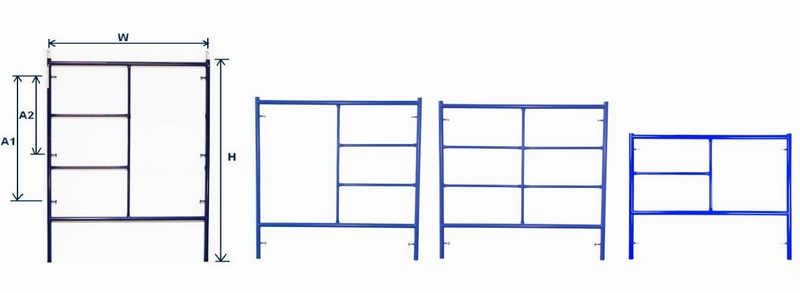

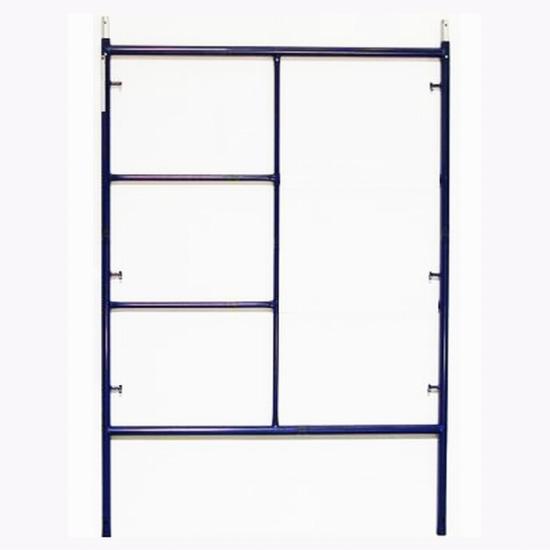

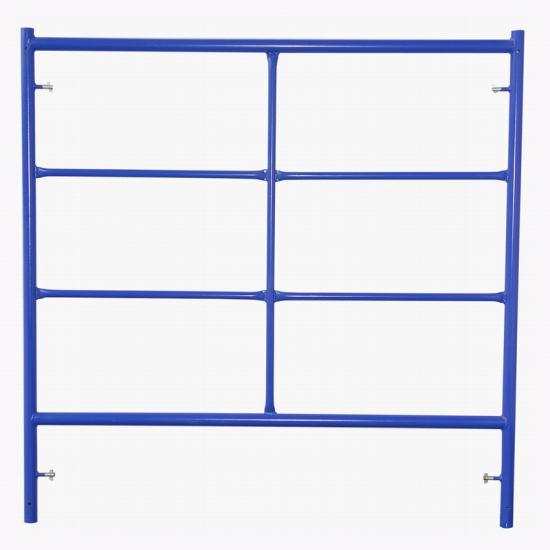

Masonry Frame / Box Frame with Flip Lock

Code	Description	Width (W)	Height (H)	Lock Space (A)	Weight(kg)	Weight(lbs)
SBF.FL.551	5'x5'1" Single Box Frame	1524mm (5')	1549mm (5'1")	48"	17.20	37.93
SBF.FL.567	5'x6'7" Single Box Frame	1524mm (5')	2007mm (6'7")	48",30"	19.68	43.39
DBF.FL.551	5'x5'1" Double Box Frame	1524mm (5')	1549mm (5'1")	48"	18.70	41.23
DBF.FL.567	5'x6'7" Double Box Frame	1524mm (5')	2007mm (6'7")	48",30"	21.18	46.70
SBF.FL.531	5'x3'1" Single Box Frame	1524mm (5')	940mm (3'1")	24"	13.00	28.67
SBF.FL.541	5'x4'1" Single Box Frame	1524mm (5')	1245mm (4'1")	36"	14.71	32.44
DBF.FL.531	5'x3'1" Double Box Frame	1524mm (5')	940mm (3'1")	24"	13.75	30.32
DBF.FL.541	5'x4'1" Double Box Frame	1524mm (5')	1245mm (4'1")	36"	15.47	34.11

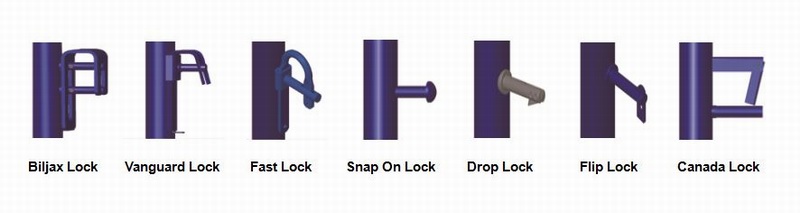

Typical Locking Device Options for American Scaffolding Frame

Scaffolding Accessories Locking Device
