Ring Lock Scaffolding System for Residential Construction
American Ring Lock Scaffolding
Home

Modular Scaffolding

American Ring Lock Scaffolding

Ring Lock Scaffolding Standard / Vertical (Short Spigot)

Ring Lock Scaffolding Standard
Ring Lock Scaffolding Standard Ring Lock Scaffolding Standard Ring Lock Scaffolding Standard

Ring Lock Scaffolding Standard / Vertical (Short Spigot)

Ringlock Scaffolding,also called Allround scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform / grandstand for events, and also plays a heavy load duty in many kinds of project.


Scaffolding Components: Standard, Ledger, Level Braces, Diagonal Brace, Side Bracket, Plank, Stair.

  • Item NO.:

    RS.S

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou or Shenzhen

  • Payment:

    T/T

  • Min order:

    20tons

  • Color:

    Silver Colour, Hot dip galvanized

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

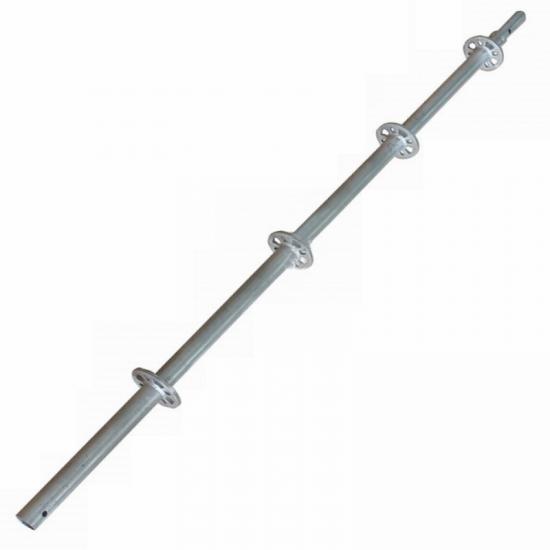

Ring Lock Scaffolding Standard / Vertical (Short Spigot)


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
RS.S.400 4.00M Standard Ø48.3x3.25mm; Q235-Q355 4000mm (13'1") 18.68  41.19
RS.S.350 3.50M Standard 3500mm (11'6") 16.42  36.21
RS.S.300 3.00M Standard 3000mm (9'10") 14.17  31.24
RS.S.250 2.50M Standard 2500mm (8'2") 11.92  26.28
RS.S.200 2.00M Standard 2000mm (6'7") 9.66  21.30
RS.S.150 1.50M Standard 1500mm (4'11") 7.41  16.34
RS.S.100 1.00M Standard 1000mm (3'3") 5.16  11.38
RS.S.050 0.50M Standard 500mm (1'8") 2.90  6.39

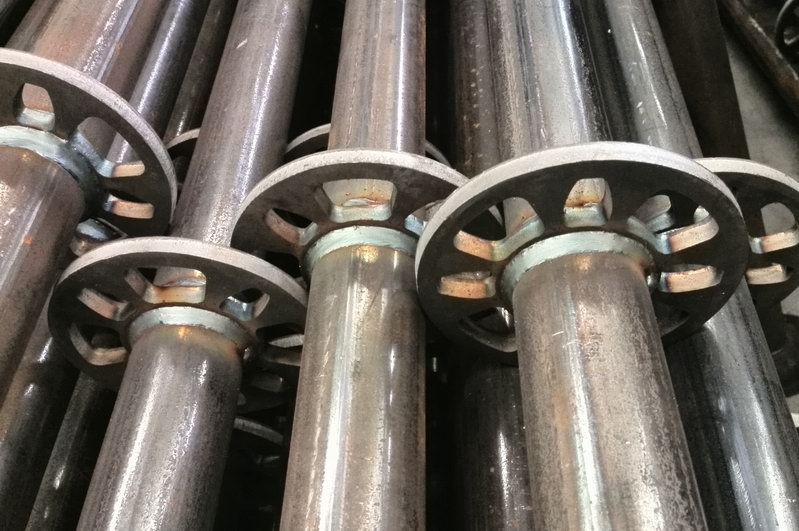

Ring Lock Scaffolding Standard



Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Spigot Size: O.D 38x3x220mm

Steel Tube Grade: Q235-Q355

Rossette Distance: 500mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: ANSI A10.8, EN12810

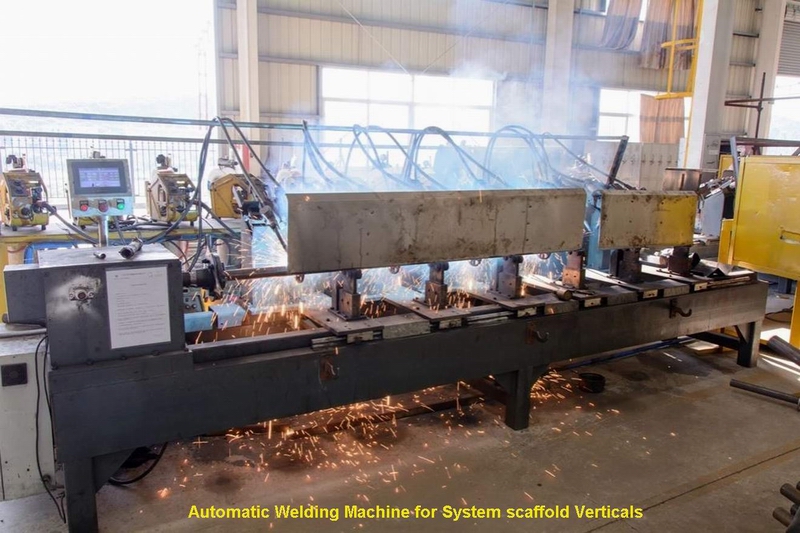

Welding Process: Automatic welding

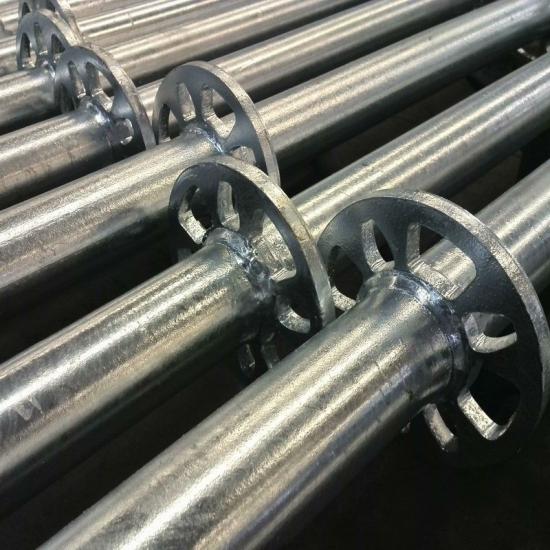

High Quality All Round Scaffolding


Packing: Steel Racks

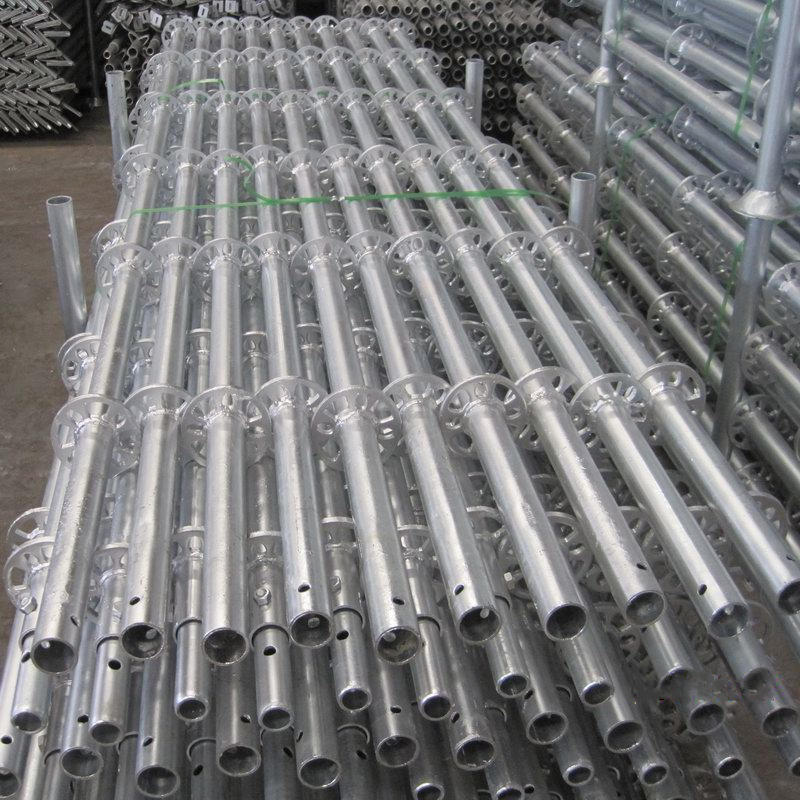

Hot Dip Galvanized System Scaffolding


Click to view other Ring Lock Scaffolding Components.

Click to view System Stringer Stair,  Aluminum Stair

Click to view System Scaffolding Plank
