Ring Lock Scaffolding System for Residential Construction

Ring Lock System Scaffolding Diagonal Brace / Bay Brace

Scaffolding brace or diagonal gives additional strength to the structure and keep it stable. These are available in modular lengths to meet specific scaffold project requirements. Tube diameter 48.3 mm with 2.5 mm thickness is used with steel casted ends which can be easily assembled with hammering.

  • Item NO.:

    RS.DB
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou
  • Payment:

    T/T
  • Min order:

    500
  • Product Detail

Ring Lock Scaffolding Diagonal Brace / Bay Brace


Product Details:

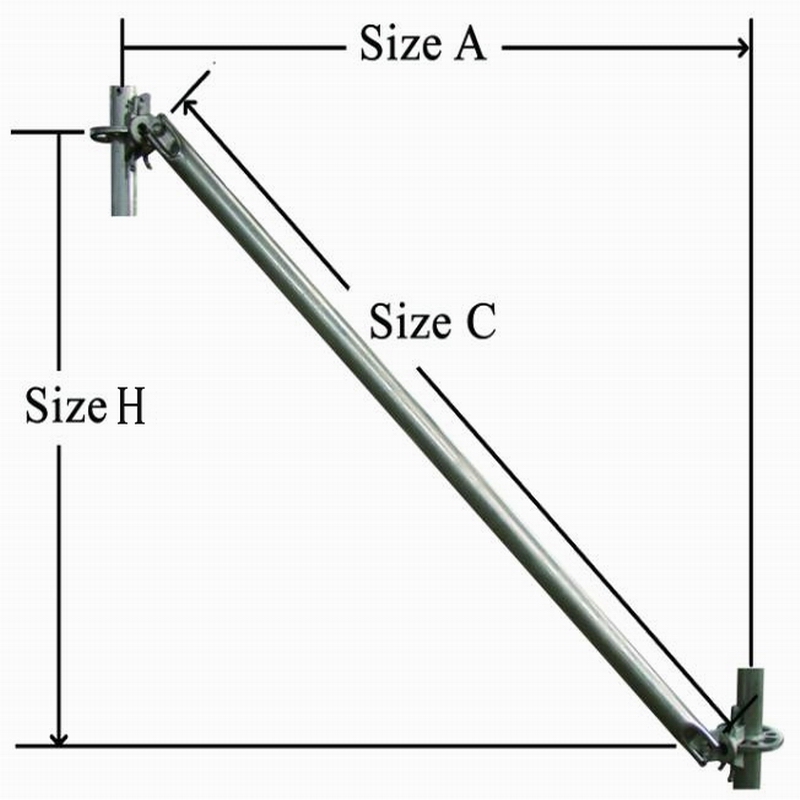

Code Description Material Size Weight(kg) Weight(lbs)
RS.DB.305200 3.05x2.0M Diagonal Brace Ø48.3x2.5mm; Q235 A: 3048mm; H: 2000mm; C: 3513mm 11.33  24.98
RS.DB.244200 2.44x2.0M Diagonal Brace A: 2438mm; H: 2000mm; C: 3031mm 9.97  21.98
RS.DB.213200 2.13x2.0M Diagonal Brace A: 2134mm; H: 2000mm; C: 2810mm 9.35  20.62
RS.DB.183200 1.83x2.0M Diagonal Brace A: 1829mm; H: 2000mm; C: 2605mm 8.78  19.36
RS.DB.152200 1.52x2.0M Diagonal Brace A: 1524mm; H: 2000mm; C: 2420mm 8.26  18.21
RS.DB.122200 1.22x2.0M Diagonal Brace A: 1219mm; H: 2000mm; C: 2263mm 7.82  17.24
RS.DB.115200 1.15x2.0M Diagonal Brace A: 1150mm; H: 2000mm; C: 2232mm 7.73  17.04
RS.DB.107200 1.07x2.0M Diagonal Brace A: 1067mm; H: 2000mm; C: 2196mm 7.63  16.82
RS.DB.091200 0.91x2.0M Diagonal Brace A: 914mm; H: 2000mm; C: 2137mm 7.47  16.47
RS.DB.065200 0.65x2.0M Diagonal Brace A: 650mm; H: 2000mm; C: 2059mm 7.25  15.99
RS.DB.061200 0.61x2.0M Diagonal Brace A: 610mm; H: 2000mm; C: 2050mm 7.22  15.92

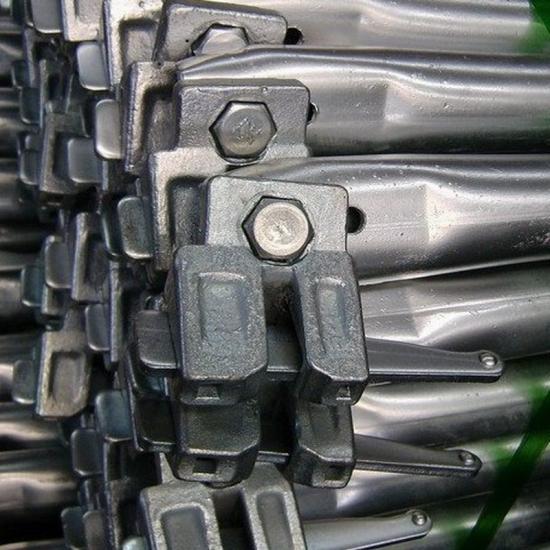

Ring Lock System Scaffolding Diagonal Braces


Features:

Tube Dimension: O.D 48.3x2.5mm. Other tube thickness 3.0mm/2.5mm/2.2mm/2.0mm is also available by request.

Steel Tube Grade: Q235

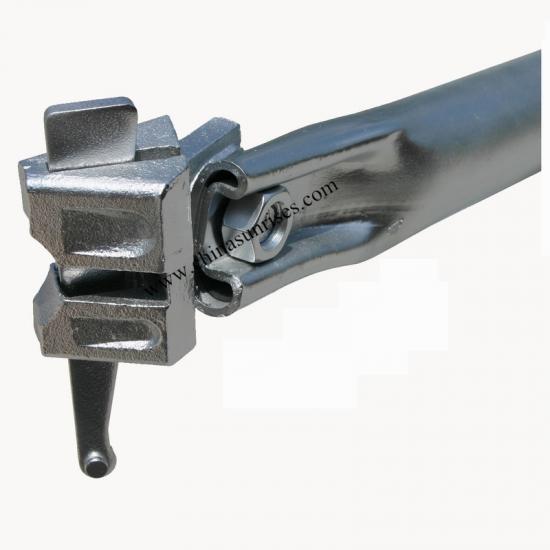

Brace Fitting: Casting Steel

Ledger Wedge Pin: 6mm

Suface Finishing: Hot Dip Galvanized; Powder Coated, Painted


Quality Standard: EN12810
