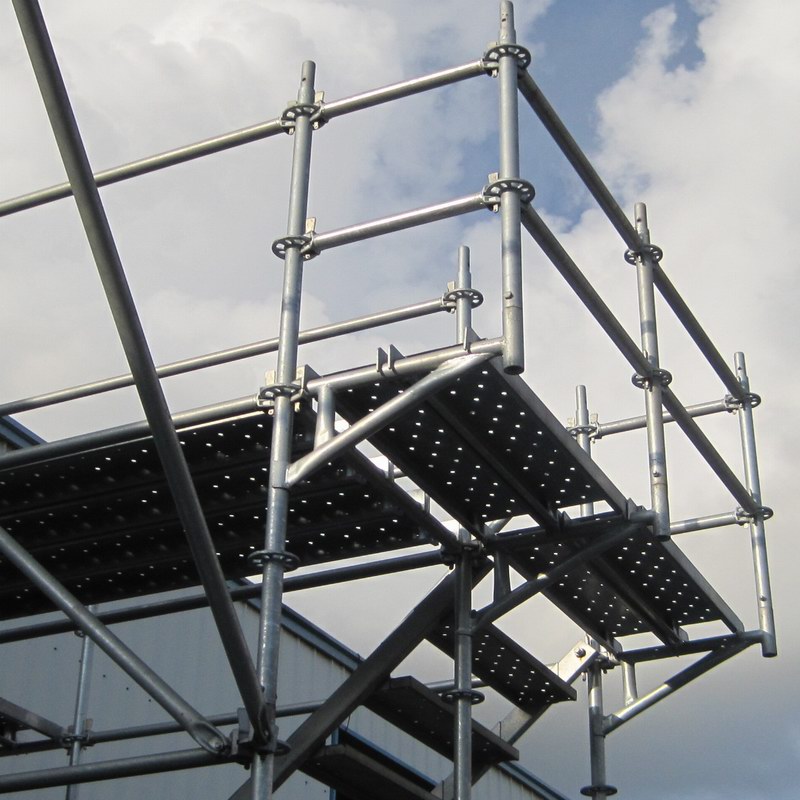

Ring Lock Scaffolding System for Residential Construction

Ring Lock Scaffolding Side Bracket, Board Bracket, Consloe Bracket

Ring Lock Scaffolding Side bracket is used at the edge of a scaffolding to extend the reach or extension off of any side of the scaffolding where sunshade comes.

  • Item NO.:

    RS.SB
  • Lead Time:

    30Days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T or L/C at sight
  • Min order:

    100PCS
  • Color:

    Galvanized Colour or Powder Coated/Painted Colour
  • Material:

    Steel
  • Product Detail

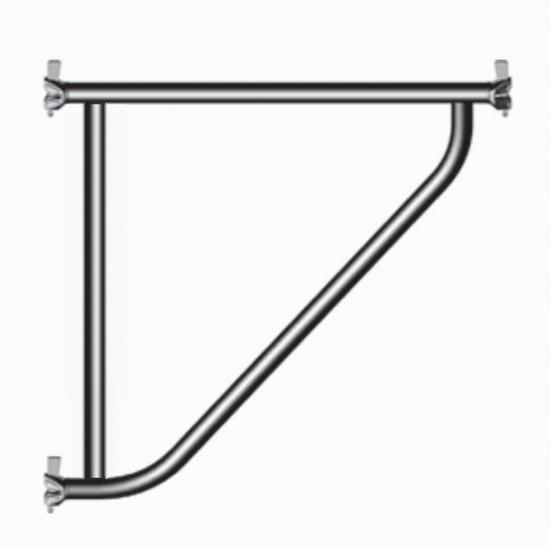

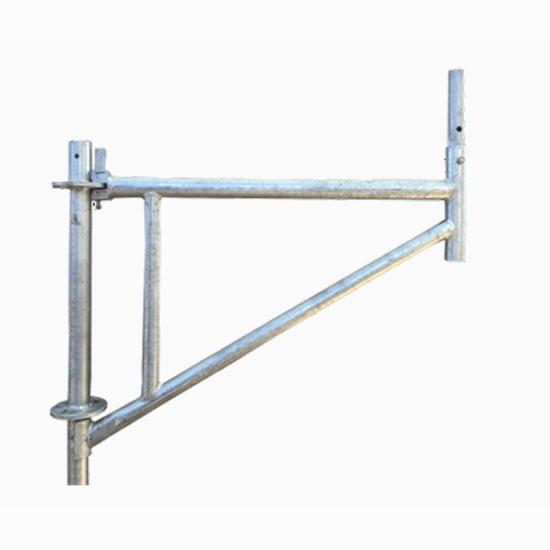

Ring Lock Scaffolding Side Bracket / Board Bracket / Consloe Bracket


Product Details:

Code Description Material Size Weight(kg) Weight(lbs)
RS.SB.040 0.40M Side Bracket Ø48.3x3.25mm; Q235-Q355 400mm (1'4") 4.90 10.80
RS.SB.065 0.65M Side Bracket 650mm (2'2") 6.67 14.71
RS.SB.088 0.88M Side Bracket 880mm (2'11") 8.02 17.68
RS.SB.115 1.15M Side Bracket 1150mm (3'10") 12.30 27.12
RS.SB.039 0.39M Side Bracket 390mm (1'3") 4.14 9.13
RS.SB.073 0.73M Side Bracket 732mm (2'5") 6.68 14.73
RS.SB.109 1.09M Side Bracket 1088mm (3'7") 13.43 29.61

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.

Spigot Size: O.D 38x3x220mm

Steel Tube Grade: Q235-Q355

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Ring Lock Scaffolding Side Bracket
