Ring Lock Scaffolding System for Residential Construction

Hot Dip Galvanized American Type of Scaffolding Steel Planks

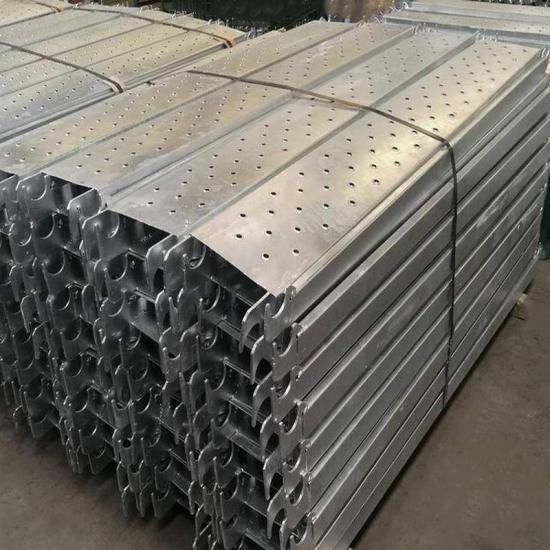

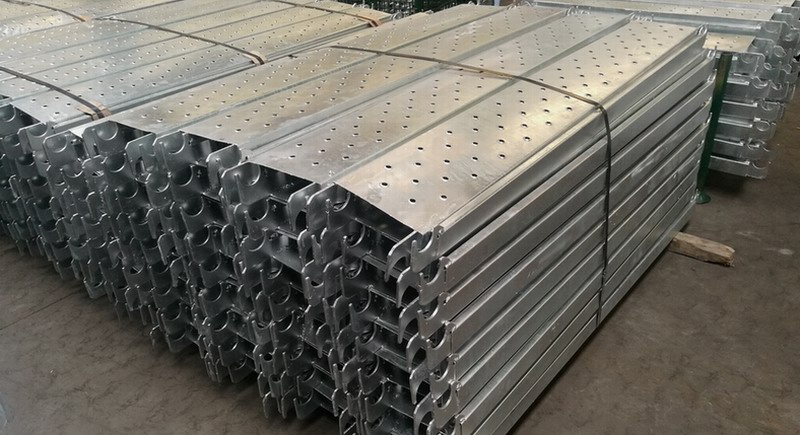

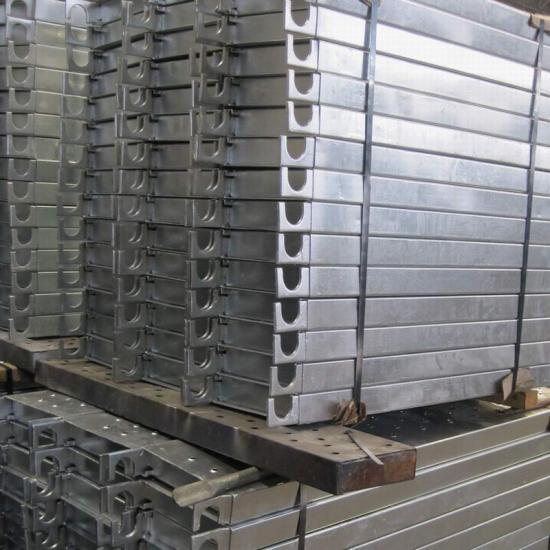

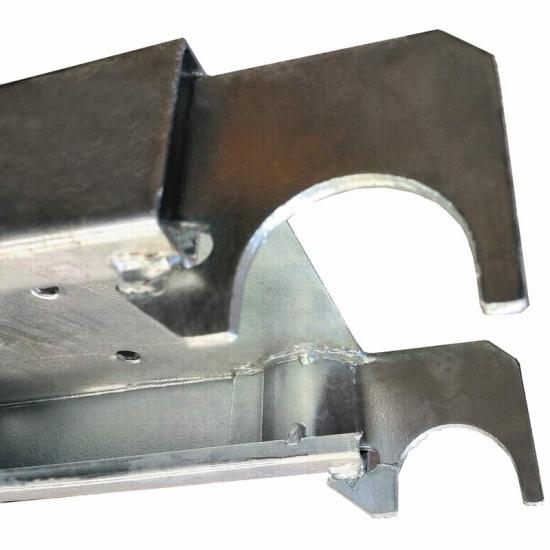

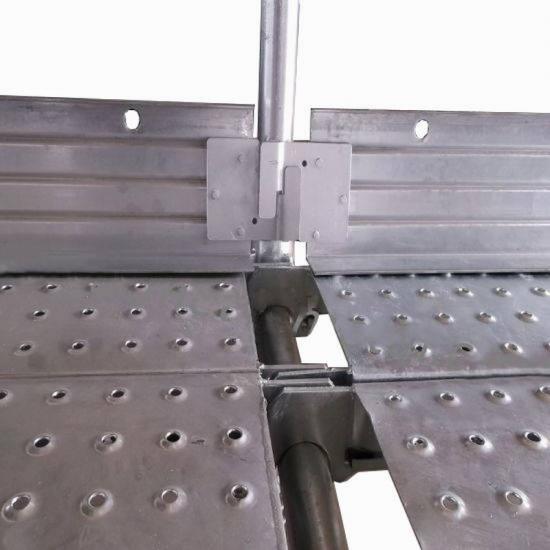

Amercian Type Steel Plank is the right platform for the scaffolding on which people can stand and work. The main features of the planks are optimum strength, stability, durability and traction. The top surface usually has holes which provide traction as well as serve purpose for the water removal as it shall not clog on it. We manufacture various types of platform for different markets.

The planks are fabricated by 1.8mm or 2mm thickness of steel plate, and comply with the requirements of OHSA & ANSI A10.8.

  • Item NO.:

    SP2
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500PCS
  • Color:

    Galvanized Colour
  • Material:

    Steel
  • Product Detail


American Type Steel Plank, 240mm (9.5") wide, t=1.8mm, Safway Style

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
SP2.24305 240x3048mm 9.5" x 10' 19.80  43.66
SP2.24244 240x2438mm 9.5" x 8' 16.20  35.72
SP2.24213 240x2134mm 9.5" x 7' 14.50  31.97
SP2.24183 240x1829mm 9.5" x 6' 12.68  27.96
SP2.24152 240x1524mm 9.5" x 5' 10.90  24.03
SP2.24122 240x1219mm 9.5" x 4' 9.12  20.11
SP2.24115 240x1150mm 9.5" x 3'-10" 8.84  19.49
SP2.24106 240x1067mm 9.5" x 3'-6" 8.25  18.19
SP2.24091 240x914mm 9.5" x 3' 7.36  16.23
SP2.24065 240x650mm 9.5" x 2'-2" 5.79  12.77
SP2.24061 240x610mm 9.5" x 2' 5.55  12.24
* Material: Steel grade Q235. Plank width 240mm, height 63.5mm,thickness 1.8mm.

* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.



American Type Steel Plank, 230mm (9") wide, t=1.8mm, Safway Style

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
SP2.23305 230x3048mm 9" x 10' 19.35  42.67
SP2.23244 230x2438mm 9" x 8' 15.88  35.02
SP2.23213 230x2134mm 9" x 7' 14.15  31.2
SP2.23183 230x1829mm 9" x 6' 12.41  27.36
SP2.23152 230x1524mm 9" x 5' 10.67  23.53
SP2.23122 230x1219mm 9" x 4' 8.94  19.71
SP2.23115 230x1150mm 9" x 3'-10" 8.68  19.14
SP2.23106 230x1067mm 9" x 3'-6" 8.19  18.06
SP2.23091 230x914mm 9" x 3' 7.20  15.88
SP2.23065 230x650mm 9" x 2'-2" 5.70  12.57
SP2.23061 230x610mm 9" x 2' 5.47  12.06
* Material: Steel grade Q235. Plank width 230mm, height 63.5mm,thickness 1.8mm.

Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
