Ring Lock Scaffolding System for Residential Construction

Ring Lock System Scaffolding Level Brace, Plain Brace, Diagonal Ledger

Level Brace, also called Plain Brace, is main component of system scaffolding which use as diagonal ledger. It is used in the large bay mobile scaffolding tower and gives additional strength to the tower structure and keep the tower stable.

  • Item NO.:

    RS.LB
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou
  • Payment:

    T/T
  • Min order:

    100
  • Color:

    Hot dip galvanized, Silver
  • Product Detail

Ring Lock Scaffolding Level Brace / Plain Brace / Diagonal Ledger


Product Details:

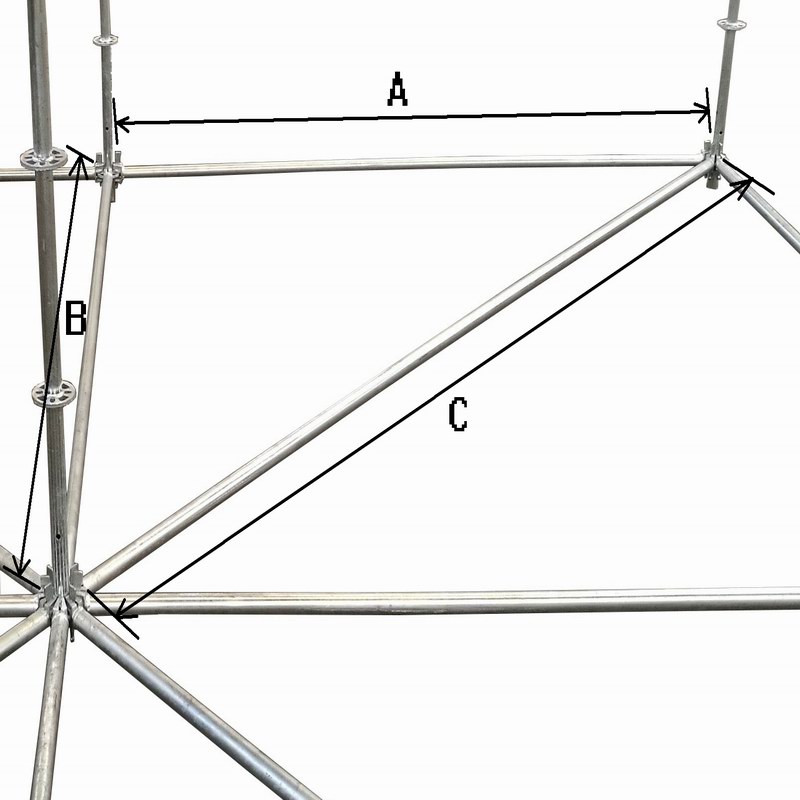

Code Description Material Size Weight(kg) Weight(lbs)
RS.LB.305305 3.05x3.05M Level Brace Ø48.3x3.25mm; Q235-Q355 A: 3048mm; B: 3048mm; C: 4310mm 16.00  35.28
RS.LB.305244 3.05x2.44M Level Brace A: 3048mm; B: 2438mm; C: 3903mm 14.54  32.06
RS.LB.305213 3.05x2.13M Level Brace A: 3048mm; B: 2134mm; C: 3720mm 13.88  30.61
RS.LB.244244 2.44x2.44M Level Brace A: 2438mm; B: 2438mm; C: 3448mm 12.91  28.47
RS.LB.244213 2.44x2.13M Level Brace A: 2438mm; B: 2134mm; C: 3240mm 12.16  26.81
RS.LB.213213 2.13x2.13M Level Brace A: 2134mm; B: 2134mm; C: 3018mm 11.36  25.05




Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.

Steel Tube Grade: Q235-Q355

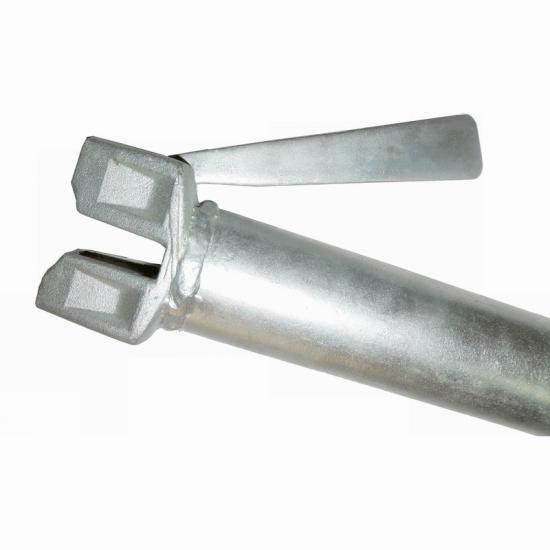

Ledger Fitting: Casting Steel

Ledger Wedge Pin: 6mm

Suface Finishing: Hot Dip Galvanized; Powder Coated, Painted


Quality Standard: EN12810
