Punched Hole Guard Rail Brace for Frame Scaffolding

Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform.


Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person from leaving the area bounded by the platform.


  • Item NO.:

    GRPH
  • Lead Time:

    20days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500PCS
  • Color:

    Galvanized Colour
  • Material:

    Steel
  • Product Detail

Punched Hole Guard Rails

Code Size (Metric) Size  (Imperial) Weight(kg) Weight(lbs)
 GRPH.10 3048mm 10' 4.61  10.17
 GRPH.8 2438mm 8' 3.71  8.18
 GRPH.7 2134mm 7' 3.26  7.19
 GRPH.6 1829mm 6' 2.81  6.20
 GRPH.5 1524mm 5' 2.36  5.20
 GRPH.4 1219mm 4' 1.91  4.21
 GRPH.3 914mm 3' 1.46  3.22
 GRPH.2 610mm 2' 1.01  2.23

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we

how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
Related products
Puched Hole Cross Braces
Punched Hole Cross Braces for H Frames
Punched Hole Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.
View More
Snap On Cross Braces
Snap On Cross Braces for American Scaffolding Frames
Snap On Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.
View More

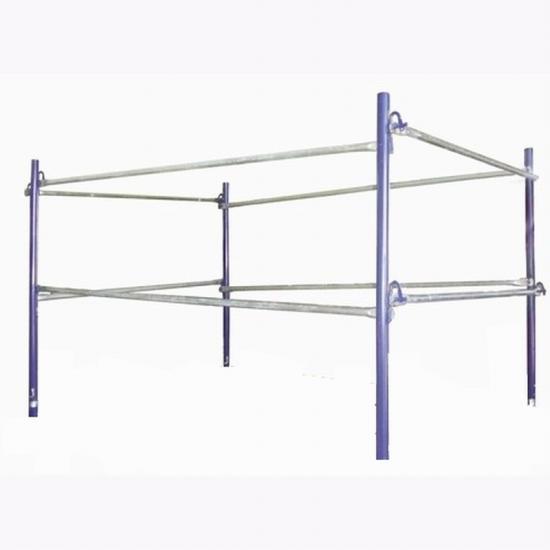

Snap On Guard Rail
Galvanized Snap On Guard Rail Braces for Scaffolding Frames
Guardrail Brace is one important part of frame scaffolding system, it provides fall protection to the people when working on the scaffold platform. Scaffold guard rail is made by dia.1.25" x 0.0787"t (O.D 32x2.0mm) pre-galvanized tube, or by black tube and then do electric galvanized, which endures hits and all kind of forces, preventing a person f1
View More
Scaffolding Guardrail Post
Powder Coated Scaffolding Guardrail Post for Scaffolding Frames
Guardrail Posts are set up on top of the scaffolding platform for installing guardrail braces. They provide fall protection to the people when working on the scaffold platform. Guardrail Posts are made by dia.1.65" x 0.09"t (O.D 42x2.3mm) or dia. 1.69"x0.095"t (O.D 43x2.5mm) steel tubes. They are strong engough to hold the guardrail braces.
View More
D60 Ring Lock Shoring Scaffolding Ledger
D60 Ring Lock Shoring Scaffolding Ledger / Horizontal
D60 Ring Lock High Load Shoring Scaffolding: It is used in Heavy Duty Load Requirement Construction Support, Including Infrastructure Scaffolding Like Bridge, High Speedway Construction, Industrial Scaffolding like Offshore Construction and High Load Concrete Formwork Temporary Scaffolding. The Vertical is made by O.D60x3.5mm high grade steel tube 1
View More
European Type Steel Prop
Shoring Prop Cover Thread
Shoring Prop is a kind of adjustable vertical pipe suport for concrete formwork suporting, is widely used for building, tunnel, mine construction.
View More
H-shoring Frame
Ladder Style H-shoring Frame Scaffolding
H-Shoring Frame is a knid of traditional shoring scaffolding, it is a kind ladder frame for heavy duty support. It is made from O.D.60x3.5mm or O.D. 60x4.0mm high quality steel tube for frame leg, and O.D. 42x2.2mm tube for frame horizontals.
View More

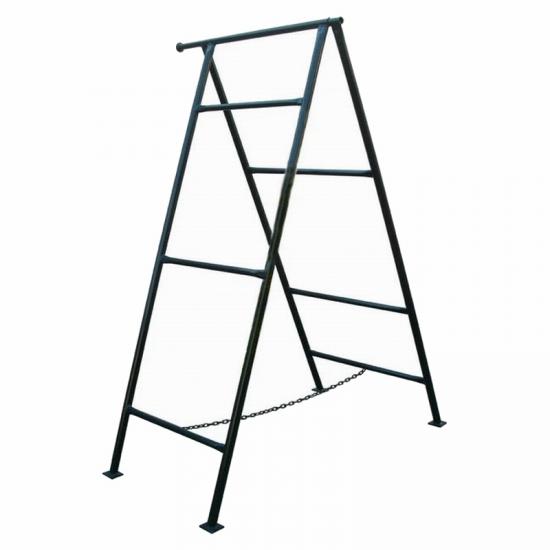

Australian Scaffolding A Frame
