Ring Lock Scaffolding System for Residential Construction

Ring lock Scaffolding Standard, Vertical Post

German Type Ring lock Scaffolding Standard, Vertical Post

German Type Ringlock Scaffolding,also called Allround scaffolding, typical product layher scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform / grandstand for events, and also plays a heavy load duty in many kinds of project.

Scaffolding Components: Standard, Ledger, Level Braces, Diagonal Brace, Side Bracket, Plank, Stair.

Item NO.:
RS.S.xxxLP
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Painted or Powder Coated Colou
Ｍaterial:
Steel

Inquire now

Product Detail

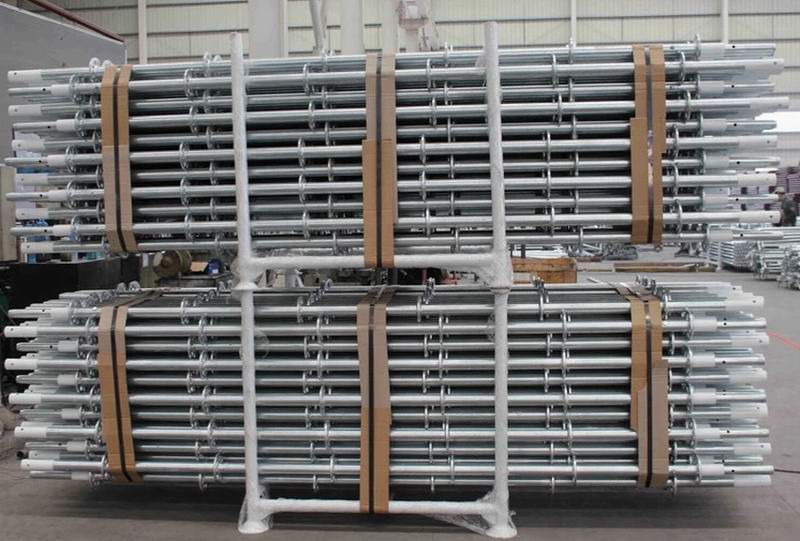

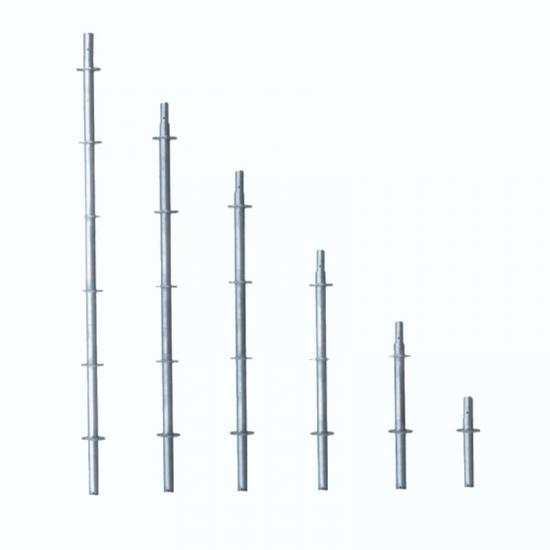

German Type Ring Lock Scaffolding Standard / Vertical Post (with Long Spigot)

Product Details:

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
RS.S.400LP	4.00M Standard, Long Spigot Pin	Ø48.3x3.25mm, Q355; Spigot Ø38x3x520mm, Q235	4000mm (13'1")	19.49	42.98
RS.S.350LP	3.50M Standard, Long Spigot Pin		3500mm (11'6")	17.24	38.01
RS.S.300LP	3.00M Standard, Long Spigot Pin		3000mm (9'10")	14.99	33.05
RS.S.250LP	2.50M Standard, Long Spigot Pin		2500mm (8'2")	12.73	28.07
RS.S.200LP	2.00M Standard, Long Spigot Pin		2000mm (6'7")	10.48	23.11
RS.S.150LP	1.50M Standard, Long Spigot Pin		1500mm (4'11")	8.23	18.15
RS.S.100LP	1.00M Standard, Long Spigot Pin		1000mm (3'3")	5.97	13.16
RS.S.050LP	0.50M Standard, Long Spigot Pin		500mm (1'8")	3.72	8.20

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Spigot Size: O.D 38x3x520mm

Steel Tube Grade: Q235-Q355

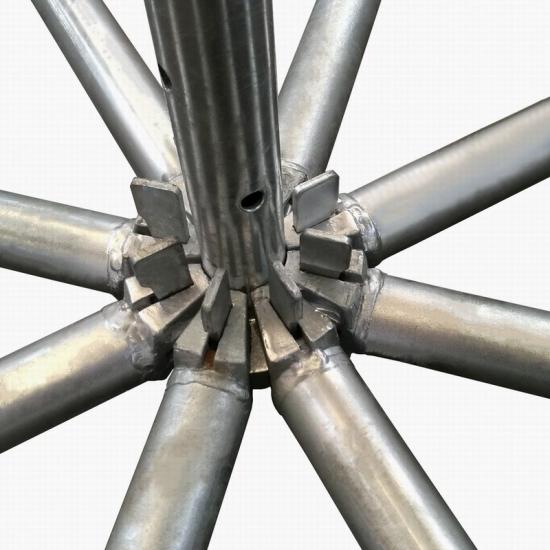

Rossette Distance: 500mm

Surface Finishing: Hot dip Galvanized is recommended; Powder Coated, Painted is also available.

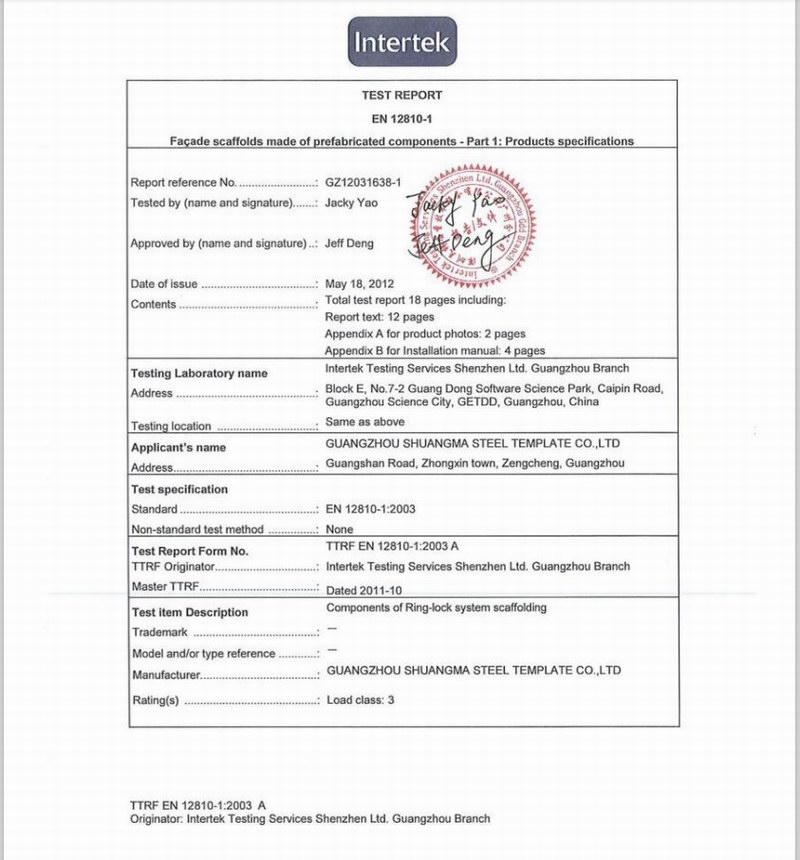

Quality Standard: EN12810

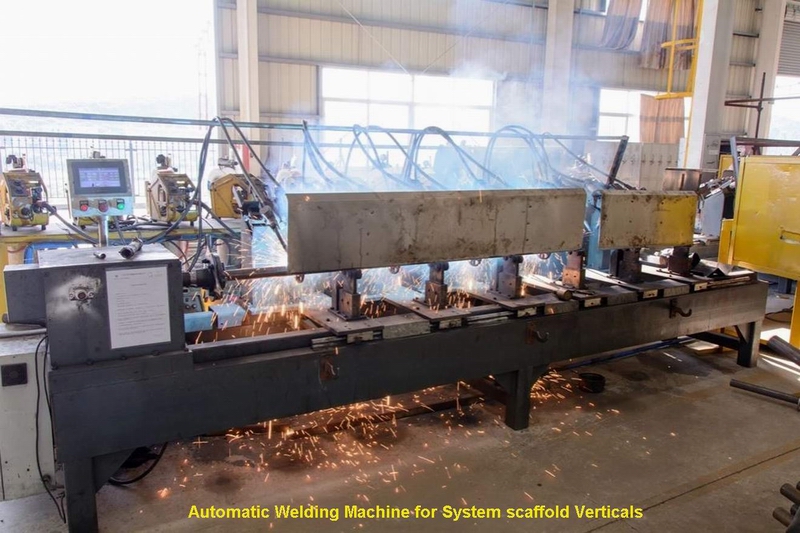

Welding Process: Automatic welding
