Punched Hole Cross Braces for H Frames

Punched Hole Cross braces enable scaffolding frames to maximize their loading capacity by balancing the frames on both ends.

  • Item NO.:

    BRPH
  • Lead Time:

    20days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500pairs
  • Color:

    Galvanized Colour
  • Material:

    Steel
  • Product Detail

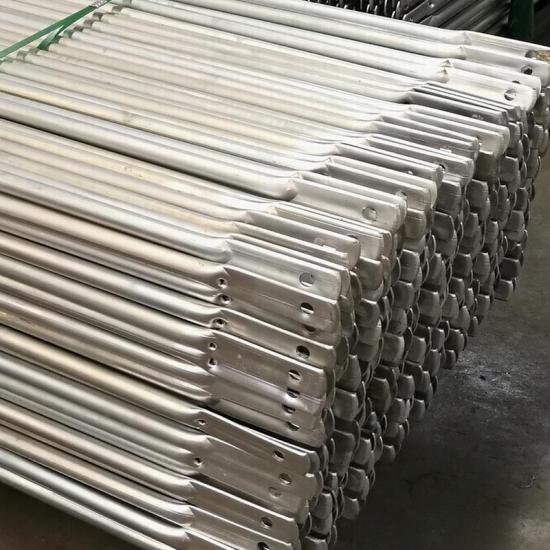

Punched Hole Cross Braces / X-Braces for Scaffolding Frames

Features:

* They are made by dia. 1" x 0.071"t (O.D25.4x1.8mm) pre-galvanized tubes, or made by black tubes and then do electric galvanized. Various lengths are available.

* Punched hole style, no cracking at two ends atfer punching.

* Long lasting from being rusted.

* Save much cost, cheaper than hot dip galvanized

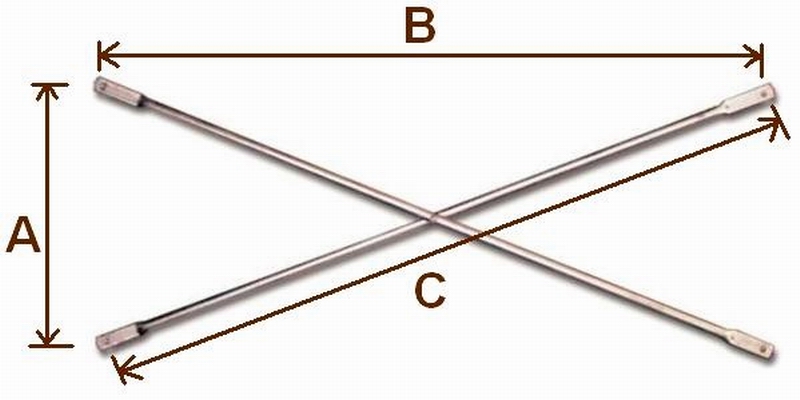

Code Size BxA (Metric) Size BxA (Imperial) Weight(kg) Weight(lbs)
 BRPH.104 3048x1219mm 10'x4' 6.91  15.24
 BRPH.103 3048x914mm 10'x3' 6.70  14.77
 BRPH.102 3048x610mm 10'x2' 6.55  14.44
 BRPH.84 2438x1219mm 8'x4' 5.76  12.70
 BRPH.83 2438x914mm 8'x3' 5.51  12.15
 BRPH.82 2438x610mm 8'x4' 5.32  11.73
 BRPH.74 2134x1219mm 7'x4' 5.21  11.49
 BRPH.73 2134x914mm 7'x3' 4.96  10.94
 BRPH.72 2134x610mm 7'x2' 4.71  10.39
 BRPH.64 1829x1219mm 6'x4' 4.63  10.21
 BRPH.63 1829x914mm 6'x3' 4.36  9.61
 BRPH.62 1829x610mm 6'x2' 4.12  9.08
 BRPH.54 1524x1219mm 5'x4' 4.16  9.17
 BRPH.53 1524x914mm 5'x3' 3.86  8.51
 BRPH.52 1524x610mm 5'x2' 3.52  7.76
