Powder Coated Multifunctional Baker Scaffolding

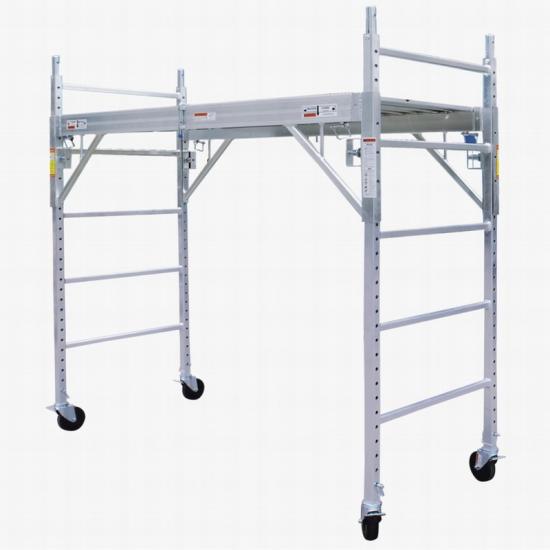

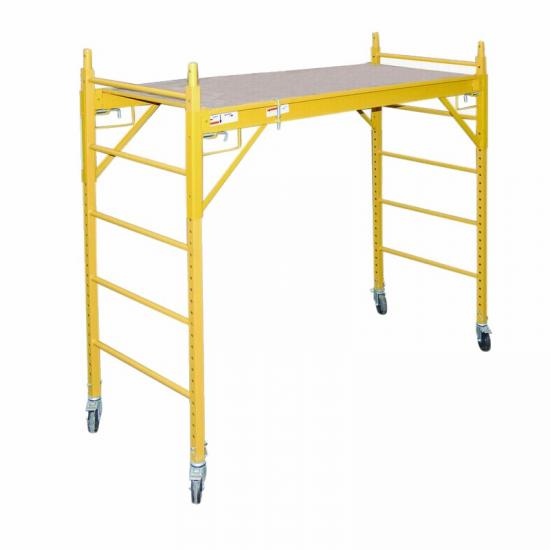

Multi-functional Scaffolding, also called Baker Scaffold, is a kind of light weight mobile scaffold for home uses, in-house plastering, decoration, electrician working. The scaffold can be flexibly adjusted in different working height, and can be moved and stored easily. It is usually to be powder coated in yellow colour.
  • Item NO.:

    MFS
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    250sets
  • Color:

    Powder Coated Yellow colour
  • Material:

    Steel
  • Product Detail

Product Features:

Scaffold in 29" wide and 6' long;

The main frame is fabricated by SHS 1.5"x1.5"x0.0787"t square tube;

The platform is made by steel frame + 0.5"t fire-proof LVL plywood board. The platform has trapdoor for people climb up inside the scaffold;

Use snap pins to safe lock the scaffold components, such as main frames, outriggers, casters.

The scaffold meets OHSA requirements, load capacity is up to 1000lbs.

The scaffold is easy to erecting and dismantling.

The scaffold is packed in carton box, convenient for transportation and storage.


Product Details:

Multi-functional Scaffolding / Baker Scaffold / Baby Tower

Code Description Weight(kg) Weight(lbs)
MFS.6 6' Multifunctional Scaffold 64.81  142.91
MFS.MF Main Frame 29"Wx65"H 11.31  24.94

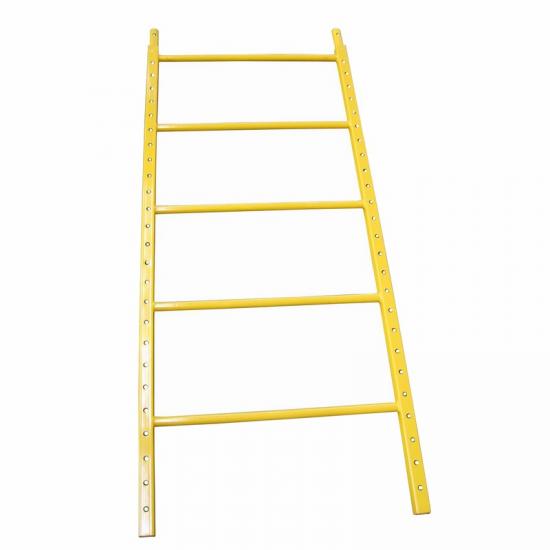

MFS.EF Extension Frame 29"Wx39"H 6.96  15.35

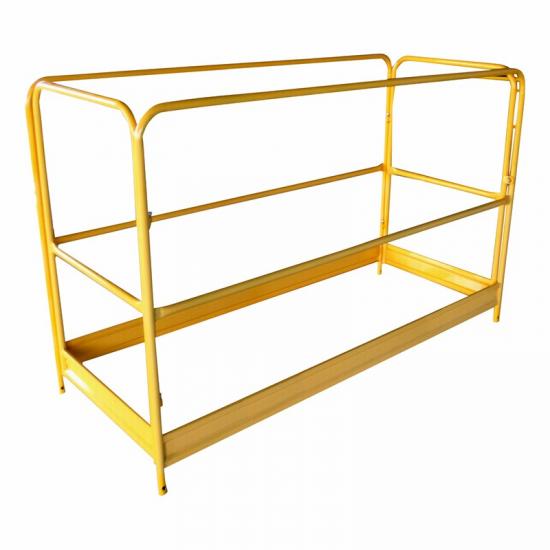

MFS.GR Guard Rail Set 36.62  80.75

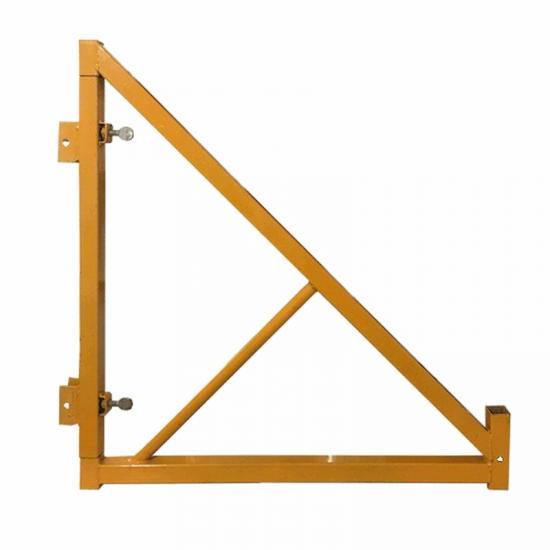

MFS.WOTR Wide Outrigger 7.72  17.01
MFS.NOTR Narrow Outrigger 2.69  5.93
MFS.C5 5" Caster 2.20  4.85

Baker Scaffold, Multifunctional Scaffolding Components

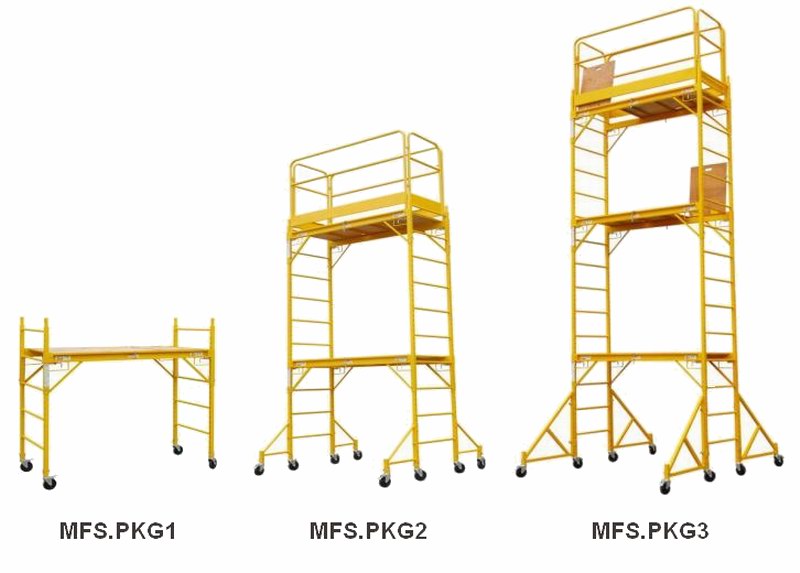

Multi-functional Scaffold Sales Package

Code Description Weight(kg) Weight(lbs)
MFS.PKG1 29"Wx72"Lx70"H Multi-functional Scaffold Package 64.81 142.91
MFS.PKG2 29"Wx72"Lx135"H Multi-functional Scaffold Package 180.5 398.00
MFS.PKG3 29"Wx72"Lx200"H Multi-functional Scaffold Package 256.96 566.60
