Cross Lock Scaffolding Ledger / Horizontal

Cross Lock Scaffolding is a kind of new modular scaffolding system which in simple structure and fabricated with few accessories, it can provide easy erection and dismantling, and speeded and high efficiency performance, and it is use for residential, commercial construction.

Scaffolding Components: Standard, Ledger.

Item NO.:
CRS.L
Lead Time:
20days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
1000PCS
Color:
Galvainized Colour; Painted Red or Orange Colour

Inquire now

Product Detail

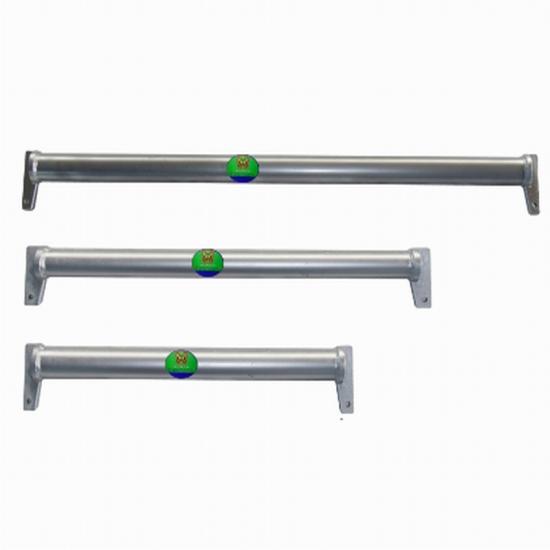

Cross Lock Scaffolding Ledger / Horizontal

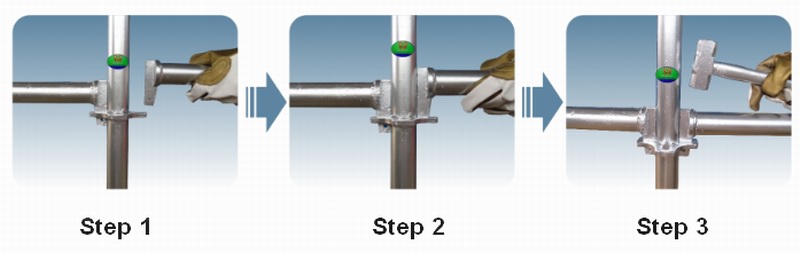

Erecting Instruction:

Product Details:

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
CRS.L.240	2.4M Ledger	Ø48x3.0; Q235-Q355	2400mm	8.30	18.30
CRS.L.180	1.8M Ledger		1800mm	6.30	13.89
CRS.L.150	1.5M Ledger		1500mm	5.30	11.69
CRS.L.120	1.2M Ledger		1200mm	4.30	9.48
CRS.L.090	0.9M Ledger		900mm	3.30	7.28
CRS.L.060	0.6M Ledger		600mm	2.30	5.07

Features:

Tube Dimension: O.D 48.3x3.0mm. Other tube thickness 3.5mm/3.25 is available by request.

Steel Tube Grade: Q235-Q355

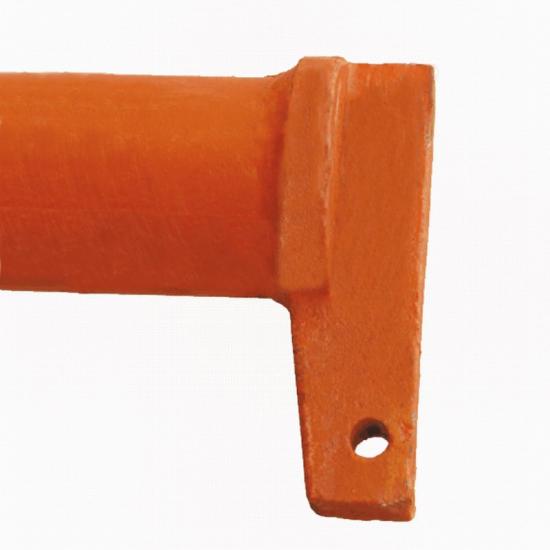

Ledger Node Connector: Casting Steel

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Welding Process: CO2 / Mixture gas shielding welding

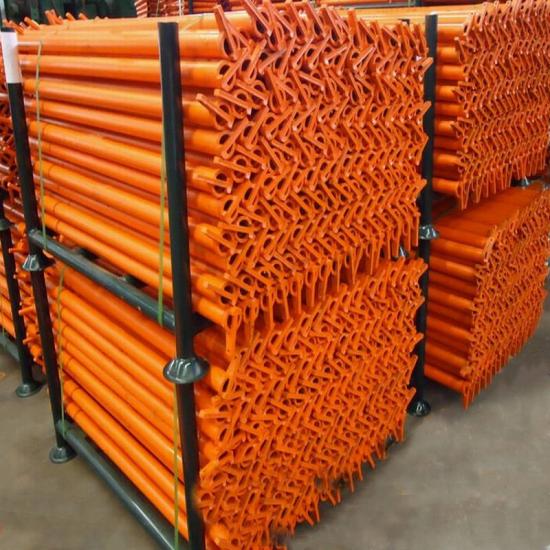

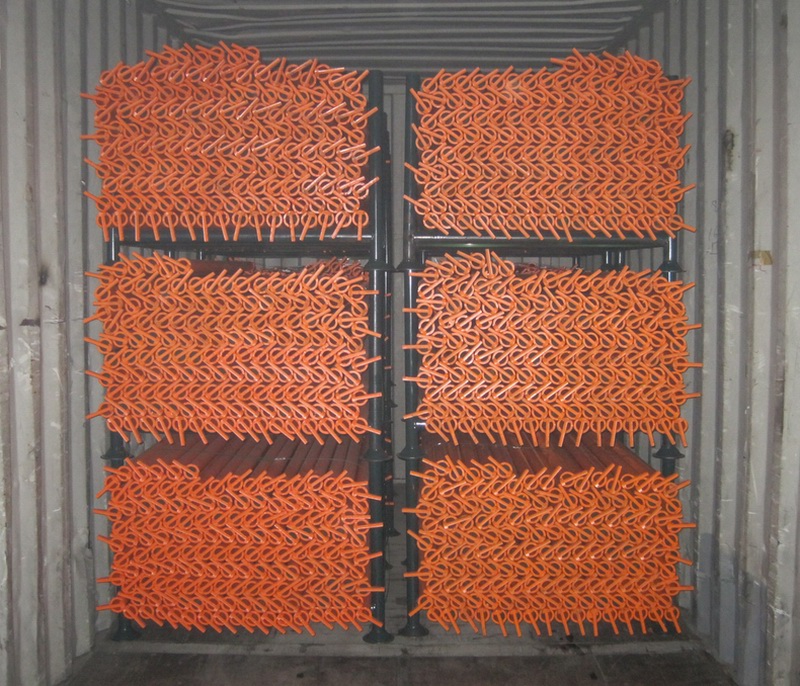

Packing and Loading: Packed on racks
