Acrow props are easy to erect and able to be handled by a single person, ensuring reliable and economical formwork and scaffolding applications.

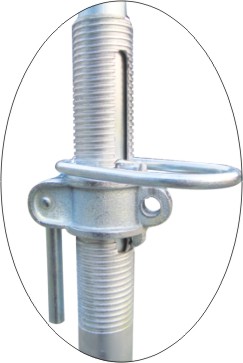

Heavy duty acrow props are made with O.D 48.3mm inner pipe & O.D 60.3mm outer pipe, with thickness 3.5-4.0mm, 8mm base/top plate, dia.16mm G pin or Collar Pin, and cast steel jack nut, are available in varies sizes covering a range from 1090mm to 4950mm with axial compression working load limits ranging from 7kN to 42.5kN.
Product Details:

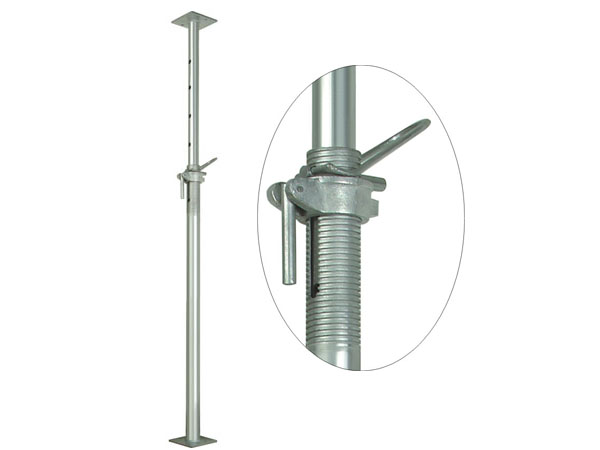

Heavy Duty Acro Prop / Steel Prop / Shoring Prop (Open thread), 4.0mm thickness
| Code | Adjustment (Metric) | Adjustment (Imperial) | Specification | Weight(kg) | Weight(lbs) |
| HDPR.#0.DO4 | 1090-1880mm | 3'7"--6'2" | Outer pipe OD60x4mm, Inner pipe OD48x4mm, End plate150x150x8mm, Open thread. | 15.52 | 34.22 |
| HDPR.#1.DO4 | 1620-2620mm | 5'4"--8'7" | 19.04 | 41.98 | |
| HDPR.#2.DO4 | 1950-3220mm | 6'5"--10'7" | 21.96 | 48.42 | |
| HDPR.#3.DO4 | 2590-3860mm | 8'6"--12'8" | 24.69 | 54.44 | |
| HDPR.#4.DO4 | 3200-4950mm | 10'6"--16'3" | 30.04 | 66.24 |
Heavy Duty Acro Prop / Steel Prop / Shoring Prop (Open thread), 3.5mm thickness
| Code | Adjustment (Metric) | Adjustment (Imperial) | Specification | Weight(kg) | Weight(lbs) |
| HDPR.#0.DO3.5 | 1090-1880mm | 3'7"--6'2" | Outer pipe OD60x3.5mm, Inner pipe OD48x3.5mm, End plate150x150x8mm, Open thread. | 14.35 | 31.64 |
| HDPR.#1.DO3.5 | 1620-2620mm | 5'4"--8'7" | 17.46 | 38.50 | |
| HDPR.#2.DO3.5 | 1950-3220mm | 6'5"--10'7" | 20.04 | 44.20 | |
| HDPR.#3.DO3.5 | 2590-3860mm | 8'6"--12'8" | 22.45 | 49.51 | |
| HDPR.#4.DO3.5 | 3200-4950mm | 10'6"--16'3" | 27.19 | 59.94 |
* Steel Grade: Q235 or Q355
* Finishing: hot dip galvanized, electric galvanized, powder coated, painted.
