Ring Lock Scaffolding System for Residential Construction

Mesh Ladder, Step Ladder, Steel Ladder, Straight Stair

Economical Mesh Ladder, Step Ladder, Steel Ladder, Straight Stair for Frame Scaffolding

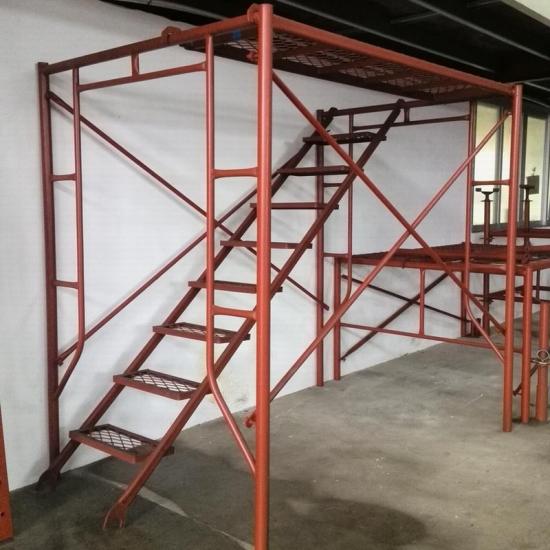

Mesh Ladders / Step Ladders / Steel Ladders / Straight Stairs are the economical stair acesses for H frames. The stair treads are made by 52x26x2.0mm steel oval tube, and the treads are made by mesh plates or punched hole plates or strip plates. They are used for 1219x1930mm H frames or cross lock scaffolding, for 1.83m or 2m scaffold bay.

Item NO.:
ML
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
50PCS
Color:
Galvainized Colour; Painted Blue, Red, Orange, Yel
Ｍaterial:
Steel

Inquire now

Product Detail

Mesh Ladder / Steel Ladder / Steel Ladder / Straight Stair

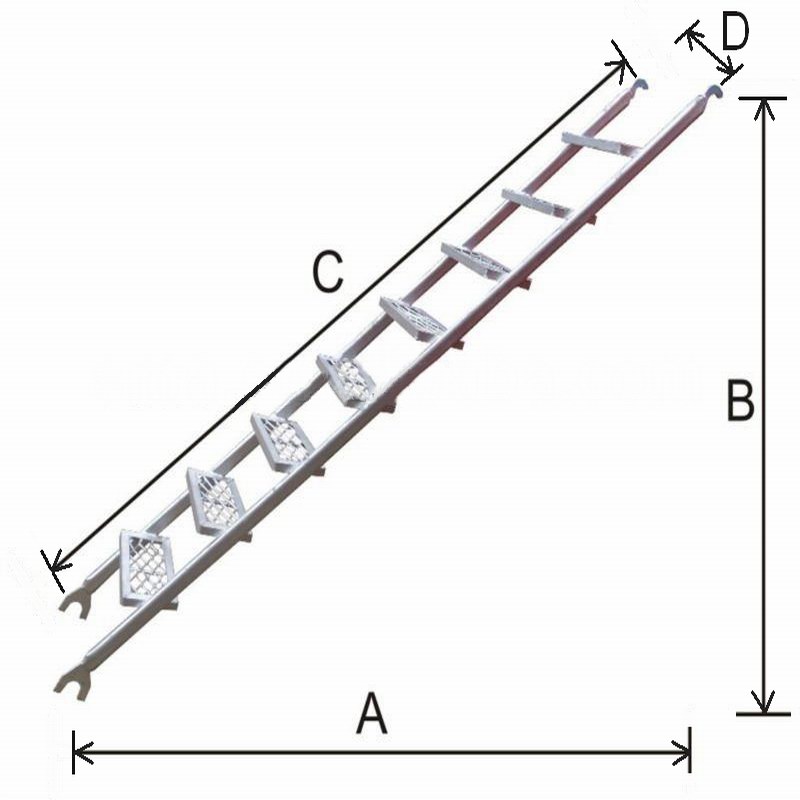

Code	Description	Stair Bay (A)	Stair Height (B)	Stair Length (C)	Stair Width (D)	Weight(kg)	Weight(lbs)
ML.2677	Stair 2677	1829mm	1955mm	2677mm	450mm	21.50	47.40
ML.2710	Stair 2710	1829mm	2000mm	2710mm	450mm	21.60	47.62
ML.2860	Stair 2860	2048mm	2000mm	2860mm	450mm	25.00	55.12

* Steel material: Q235. Stringer tube 52x26x2.0mm. Stair treads: mesh steps or punching steps.

* Finishing: Hot dip galvanized, painted.

Steel Step Ladder

Galvanized Mesh Ladders for H Frames

Step Ladder Scaffolding, Straight Stairs
