Ring Lock Scaffolding System for Residential Construction

1.5m Hot Dip Galvanized Steel Stairway for Kwistage System Scaffolding

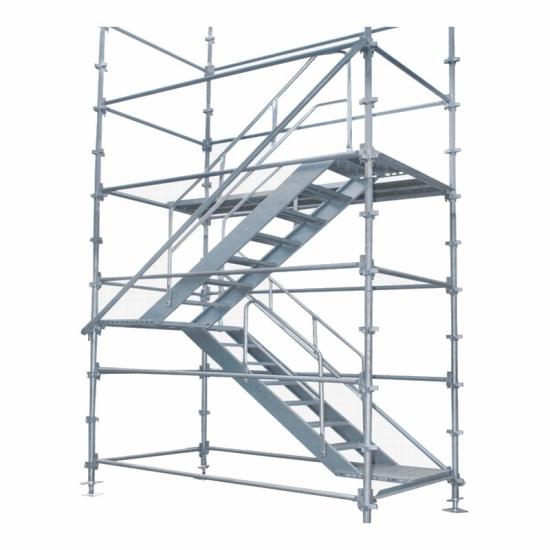

Kwikstage Stairway (Steel) is the safe & easy solution for vertical access in lightweight with non-slip treads and platform. It is fabricated and designed to fit in a 1.27x2.44m scaffolding bay with 1.5m lift height. It is a specially design to fit in 1.2m tranom for two stairs side by side installation. The stairs are hot dip galvanized.

  • Item NO.:

    KS.ST
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    50PCS
  • Color:

    Galvainized Colour; Painted Blue, Red, Orange, Yel
  • Material:

    Steel
  • Product Detail

1.5m Kwikstage Scaffolding Steel Stairway

Code Description Material Stair Bay Stair Height Stair Width Weight(kg) Weight(lbs)
KS.ST.24215 Stairway 2420x1485mm Plate t=1.2mm; Q235 2438mm 1485mm 590mm 36.00  79.38
KS.ST.IHR Stair Inner Handrail Ø34x1.8mm; Q235 6.09  13.43
KS.ST.OHR Stair Outer Handrail 10.65  23.48
* Steel Grade: Q235

* Finishing: Hot dip galvanized, painted.
