Hot Dip Galvanized Cup Lock Scaffolding Ledger

Cup Lock Scaffolding is fabricated by ø48.3x3.25mm (1.90" O.D x 10 gauge) high strength steel tubes. It is a fully Hot Dip Galvanized multi-purpose steel scaffold system suitable for providing general access and supporting vertical loads. The key feature is its bowl locking point which allows up to 4 horizontals to be connected to a vertical in a single fastening action-making it probably the fastest and safest system available.

Cup Lock Scaffolding Components: Standard, Ledger, Diagonal Brace, Side Bracket, Plank, Toe Board, Stair.

Item NO.:
CS.L
Lead Time:
35days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvanized Colour

Inquire now

Product Detail

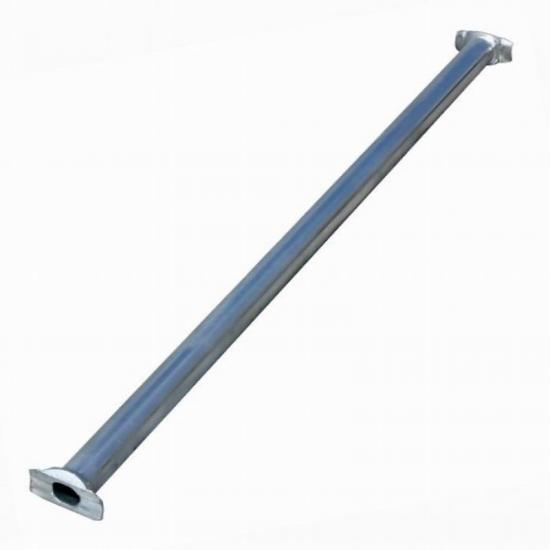

Cup Lock Scaffolding Ledger / Horizontal

Product Details:

Code	Description	Material	Size	Weight (kg)	Weight (lbs)
CS.L.305	3.05M Ledger	Ø48.3x3.25mm; Q235-Q355	3048mm (10')	11.06	24.39
CS.L.300	3.00M Ledger		3000mm (9'10")	10.88	23.99
CS.L.274	2.74M Ledger		2743mm (9')	9.96	21.96
CS.L.250	2.50M Ledger		2500mm (8'2")	9.09	20.04
CS.L.244	2.44M Ledger		2438mm (8')	8.87	19.56
CS.L.230	2.30M Ledger		2300mm (7'7")	8.37	18.46
CS.L.213	2.13M Ledger		2134mm (7')	7.78	17.15
CS.L.210	2.10M Ledger		2100mm (6'11")	7.66	16.89
CS.L.200	2.00M Ledger		2000mm (6'7")	7.30	16.10
CS.L.183	1.83M Ledger		1829mm (6')	6.68	14.73
CS.L.180	1.80M Ledger		1800mm (5'11")	6.58	14.51
CS.L.160	1.60M Ledger		1600mm (5'3")	5.86	12.92
CS.L.152	1.52M Ledger		1524mm (5')	5.59	12.33
CS.L.150	1.50M Ledger		1500mm (4'11")	5.50	12.13
CS.L.130	1.30M Ledger		1300mm (4'3")	4.79	10.56
CS.L.127	1.27M Ledger		1268mm (4'2")	4.68	10.32
CS.L.122	1.22M Ledger		1219mm (4')	4.50	9.92
CS.L.115	1.15M Ledger		1150mm (3'10")	4.25	9.37
CS.L.107	1.07M Ledger		1067mm (3'6")	3.95	8.71
CS.L.100	1.00M Ledger		1000mm (3'3")	3.71	8.18
CS.L.091	0.91M Ledger		914mm (3')	3.40	7.50
CS.L.061	0.61M Ledger		610mm (2')	2.31	5.09

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.

Steel Tube Grade: Q235-Q355

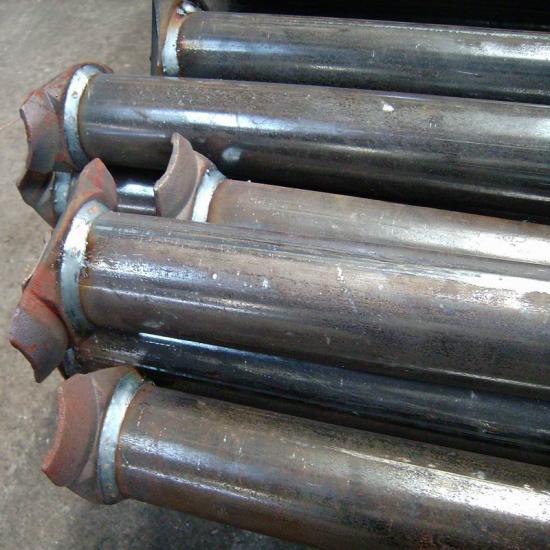

Ledger Blade: Casting Steel

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Quality Standard: EN12810 / BS1139

Welding Process: CO2/Mixture gas Shielding Welding

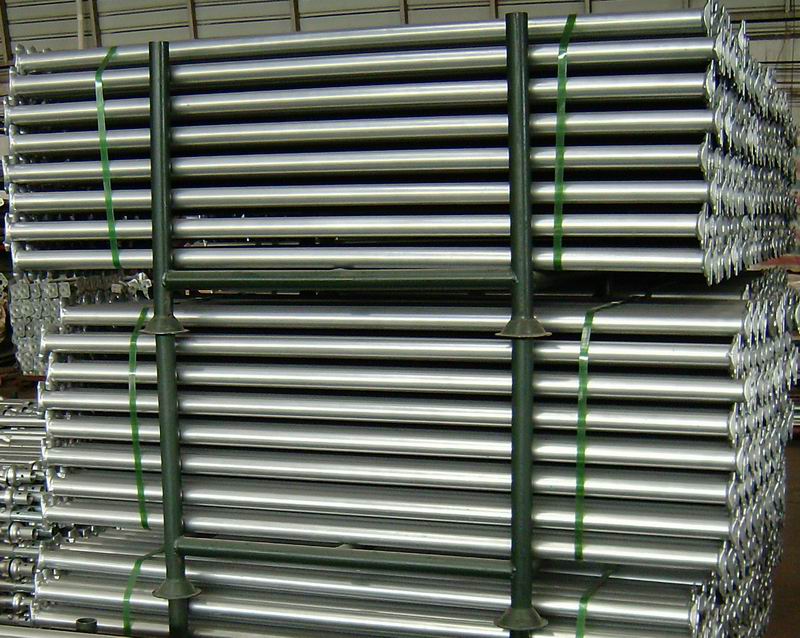

Packing and Loading: On steel racks
