D60 Ring Lock Shoring Scaffolding Ledger / Horizontal

D60 Ring Lock Shoring Scaffolding Ledger
D60 Ring Lock Shoring Scaffolding Ledger D60 Ring Lock Shoring Scaffolding Ledger D60 Ring Lock Shoring Scaffolding Ledger D60 Ring Lock Shoring Scaffolding Ledger D60 Ring Lock Shoring Scaffolding Ledger

D60 Ring Lock Shoring Scaffolding Ledger / Horizontal

D60 Ring Lock High Load Shoring Scaffolding: It is used in Heavy Duty Load Requirement Construction Support, Including Infrastructure Scaffolding Like Bridge, High Speedway Construction, Industrial Scaffolding like Offshore Construction and High Load Concrete Formwork Temporary Scaffolding. The Vertical is made by O.D60x3.5mm high grade steel tube for heavy duty shoring purpose.



Scaffolding Components: Standard, Ledger, Diagonal Brace.


  • Item NO.:

    D60RS.L

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    500PCS

  • Color:

    Galvainized Colour
Inquire now
  • Product Detail

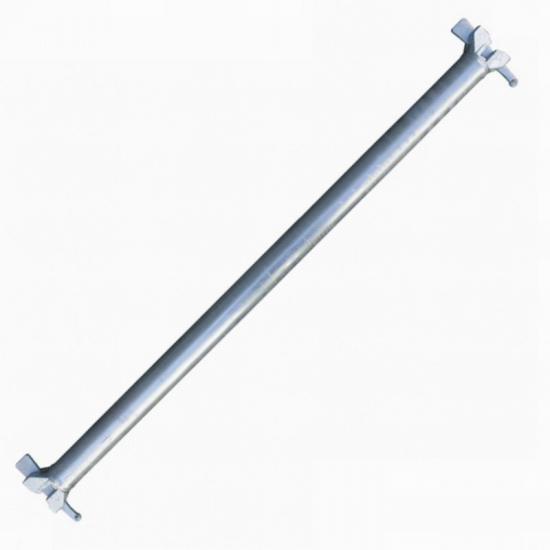

D60 Ring Lock High Load Shoring Scaffolding Ledger / Horizontal

Product Details:

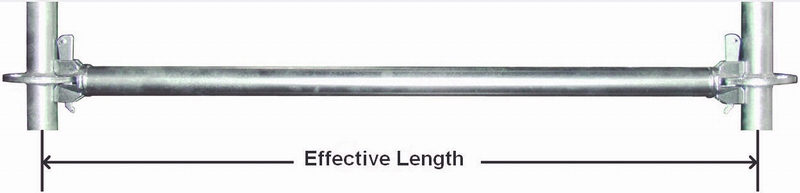

Code Description Material Size Weight(kg) Weight(lbs)
D60RS.L.240 2.40M Ledger Ø48.3x3.0mm; Q235-Q355 2400mm (7'10") 8.52  18.79
D60RS.L.180 1.80M Ledger 1800mm (5'11") 6.53  14.40
D60RS.L.150 1.50M Ledger 1500mm (4'11") 5.53  12.19
D60RS.L.120 1.20M Ledger 1200mm (3'11") 4.92  10.85
D60RS.L.090 0.90M Ledger 900mm (2'11") 3.53  7.78
D60RS.L.060 0.60M Ledger 600mm (1'11") 2.53  5.58



Features:

Tube Dimension: O.D 48.3x3.0mm. Other tube thickness 3.5mm/3.25mm/2.75mm/2.5mm is available by request.
Steel Tube Grade: Q235-Q355

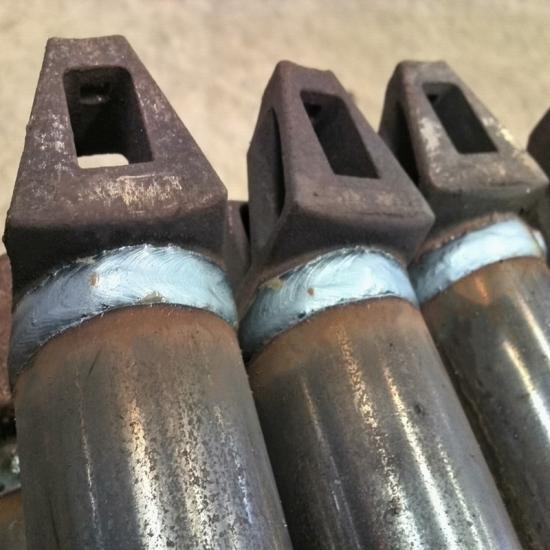

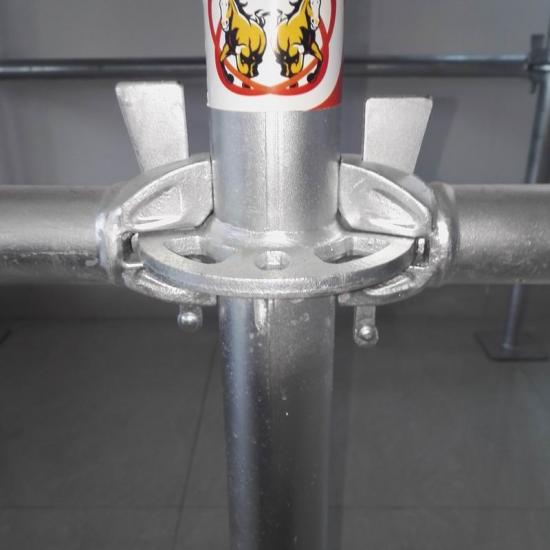

Ledger Node Connector: Casting Steel
Wedge Pin: 6mm

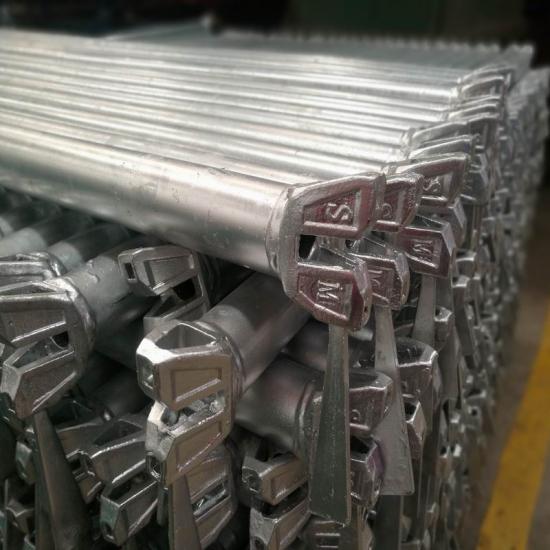

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Quality Standard: EN12810

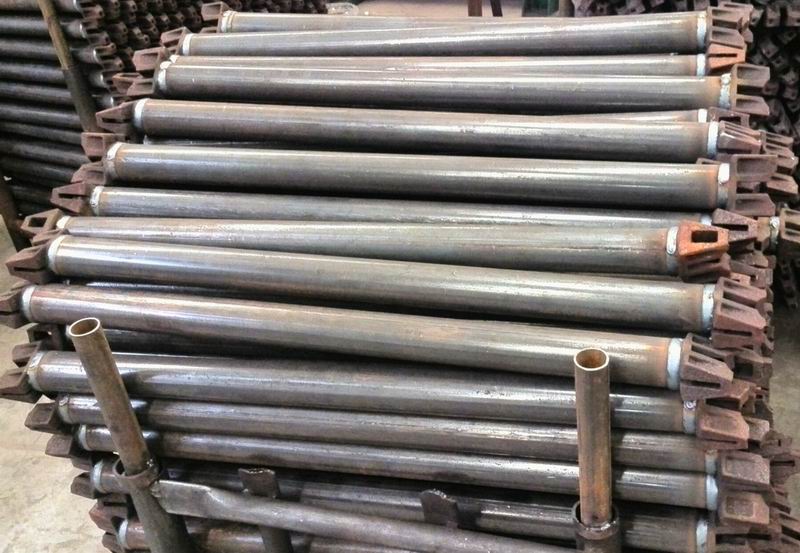

Welding Process: Automatic welding

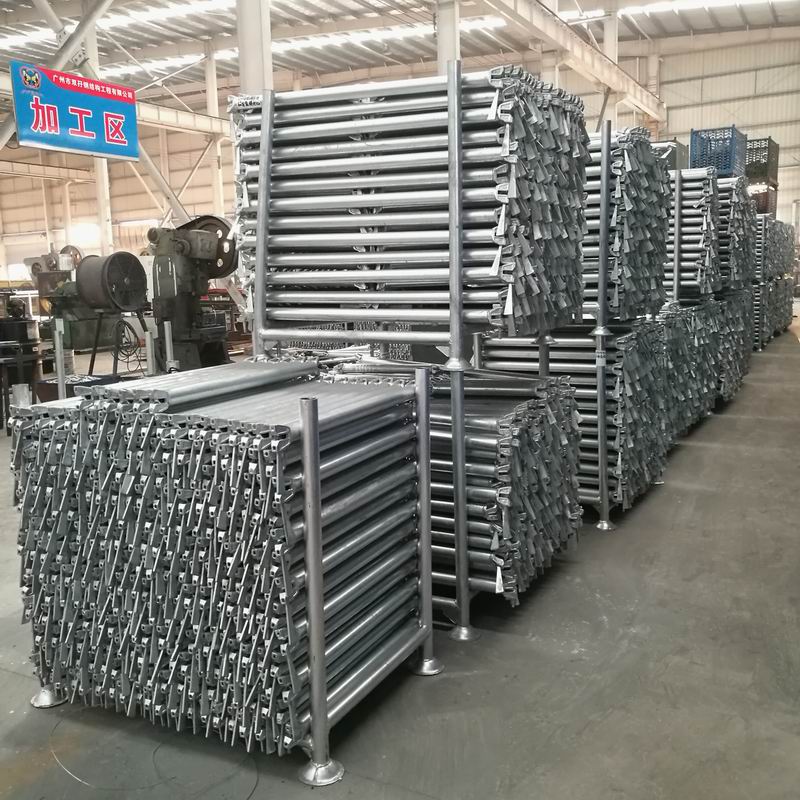

Packing and Loading: On Steel Racks
