South Africa Type Kwikstage Scaffolding Ledger

South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Ledger is made from O.D48.3mm x 2.5mm Scaffold Tube with C-pressing ends and wedge pins.

The main components of SA Kwikstage Scaffolding include: Standard, Ledger, Diagonal Brace, Hook-on Plank, Toe Board, Stair or Ladder, Cantilever Bracket, Strip Beam, decking Panel, and so on.

Item NO.:
KS.L(SA)
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Painted Blue, Red, Orange, Yel

Inquire now

Product Detail

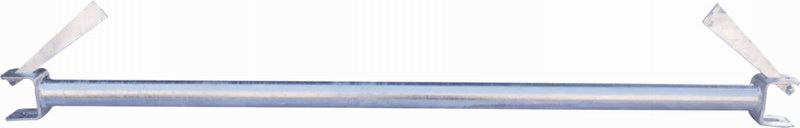

South Africa Type Kwikstage Scaffolding Ledger / Horizontal (C Pressing End)

Product Details:

Code	Description	Material	Size	Weight (kg)	Weight (lbs)
KS.L.300C	3.00M C-Ledger	Ø48x2.5; Q235-Q355	3000mm	9.21	20.31
KS.L.270C	2.70M C-Ledger		2700mm	8.37	18.46
KS.L.250C	2.50M C-Ledger		2500mm	7.81	17.22
KS.L.200C	2.00M C-Ledger		2000mm	6.41	14.13
KS.L.180C	1.80M C-Ledger		1800mm	5.85	12.90
KS.L.160C	1.60M C-Ledger		1600mm	5.29	11.66
KS.L.150C	1.50M C-Ledger		1500mm	5.01	11.05
KS.L.129C	1.29M C-Ledger		1295mm	4.43	9.77
KS.L.122C	1.22M C-Ledger		1219mm	4.22	9.31
KS.L.120C	1.20M C-Ledger		1200mm	4.16	9.17
KS.L.100C	1.00M C-Ledger		1000mm	3.60	7.94
KS.L.090C	0.90M C-Ledger		900mm	3.32	7.32
KS.L.080C	0.80M C-Ledger		800mm	3.04	6.70
KS.L.060C	0.60M C-Ledger		600mm	2.48	5.47

Features:

Tube Dimension: O.D 48.3x2.5mm. Other tube thickness 3.25mm/3.0mm2.75mm/2.3mm/2.0mm is also available by request.

Steel Tube Grade: Q235-Q355

C-Pressing Ends: t=6mm

Wedge Pins: t=6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Welding Process: CO2/Mixture Gas Shielding Welding
