Ring Lock Scaffolding System for Residential Construction

Galvanized Ring Lock Scaffolding Bay Brace

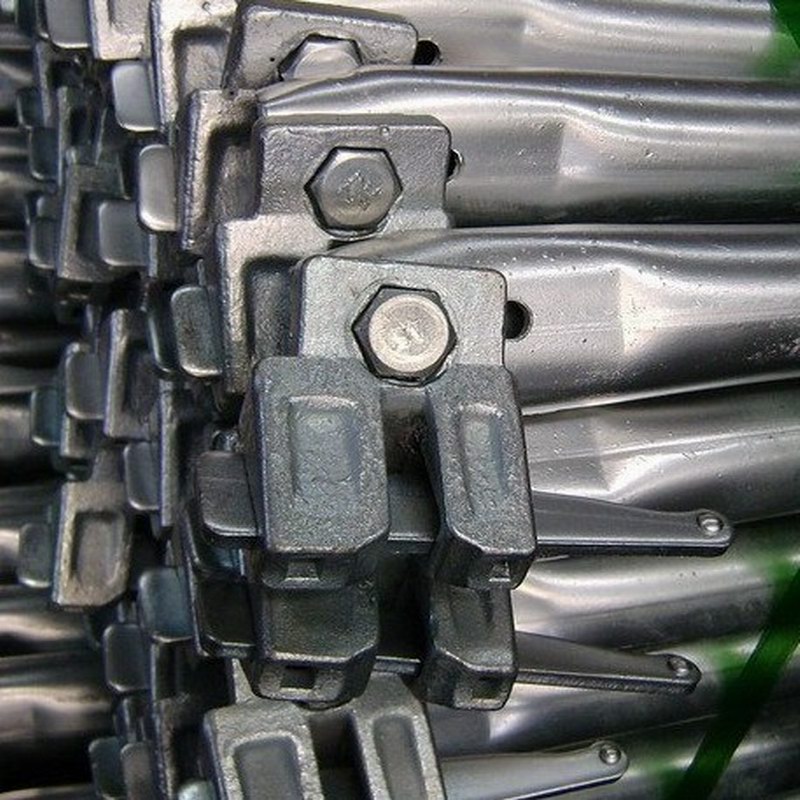

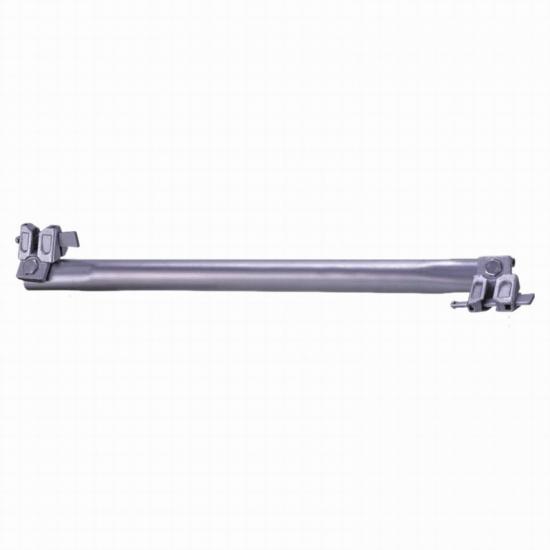

Ring Lock Scaffolding Diagonal Braces, also called Bay Braces or Vertical Braces, serve to give lateral support to the scaffold. They can also be used as guard rails in stair system, or tension and compression members. It is made from O.D 48.3x2.5mm scaffold tube with cast steel brace head and wedge pins at both ends.

Item NO.:
RS.DB.xxx
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
200PCS
Color:
Galvainized Colour; Painted or Powder Coated Blue,

Inquire now

Product Detail

German Type of Ring Lock Scaffolding Diagonal Brace / Bay Brace / Vertical Brace

Product Details:

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
RS.DB.307200	3.07x2.0M Diagonal Brace	Ø48.3x2.5mm; Q235	A: 3072mm; H: 2000mm; C: 3532mm	11.38	25.09
RS.DB.257200	2.57x2.0M Diagonal Brace		A: 2572mm; H: 2000mm; C: 3133mm	10.26	22.62
RS.DB.207200	2.07x2.0M Diagonal Brace		A: 2072mm; H: 2000mm; C: 2767mm	9.23	20.35
RS.DB.157200	1.57x2.0M Diagonal Brace		A: 1572mm; H: 2000mm; C: 2448mm	8.34	18.39
RS.DB.140200	1.40x2.0M Diagonal Brace		A: 1400mm; H: 2000mm; C: 2353mm	8.07	17.79
RS.DB.129200	1.29x2.0M Diagonal Brace		A: 1286mm; H: 2000mm; C: 2295mm	7.91	17.44
RS.DB.109200	1.09x2.0M Diagonal Brace		A: 1088mm; H: 2000mm; C: 2205mm	7.66	16.89
RS.DB.104200	1.04x2.0M Diagonal Brace		A: 1036mm; H: 2000mm; C: 2183mm	7.60	16.76
RS.DB.102200	1.02x2.0M Diagonal Brace		A: 1020mm; H: 2000mm; C: 2177mm	7.58	16.71
RS.DB.088200	0.88x2.0M Diagonal Brace		A: 880mm; H: 2000mm; C: 2125mm	7.43	16.38
RS.DB.073200	0.73x2.0M Diagonal Brace		A: 732mm; H: 2000mm; C: 2080mm	7.31	16.12

Features:

Tube Dimension: O.D 48.3x2.5mm. Other tube thickness 3.0mm/2.5mm/2.2mm/2.0mm is also available by request.

Steel Tube Grade: Q235

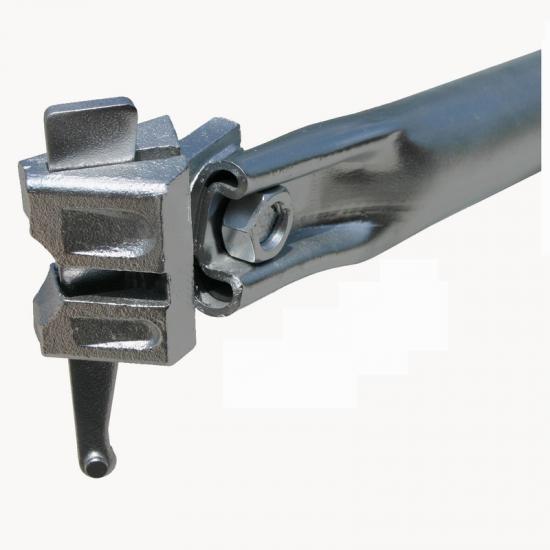

Brace Fitting: Casting Steel

Ledger Wedge Pin: 6mm

Suface Finishing: Hot Dip Galvanized is recommended, Powder Coated, Painted is also available.

Quality Standard: EN12810

RETURN to view other German Type of Ring Lock Scaffolding Components.
