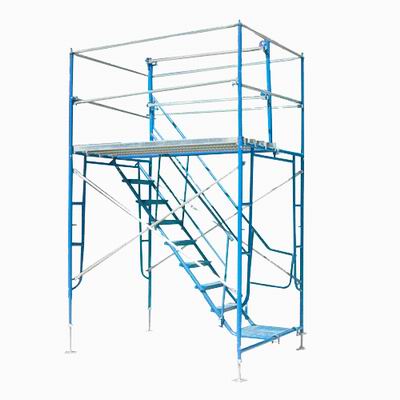

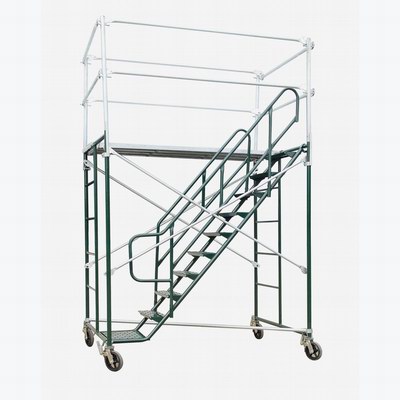

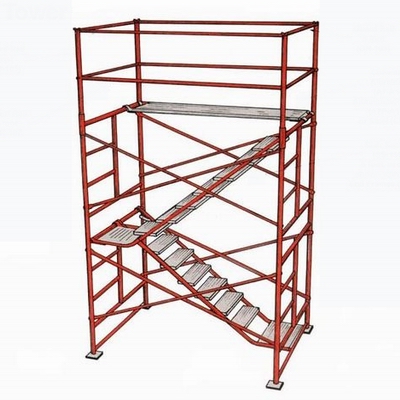

7' Bay Internal Stair for American Frame Scaffolding

Internal Stair is the stairway solutions for temporary access. 7' Bay Internal Stairs towers are constructed utilizing scaffolding frames,cross braces, guardrail brace, planks, stairs. The stair towers are set for7' scaffolding bay, and for 5', 6'4", 6'6", 6'7", 6'8" heights to meet different frame heights.

  • Item NO.:

    JST
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    50PCS
  • Color:

    Galvainized Colour; Painted Blue, Red, Orange, Yel
  • Material:

    Steel
  • Product Detail

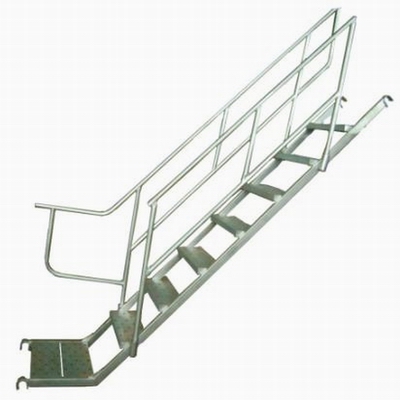

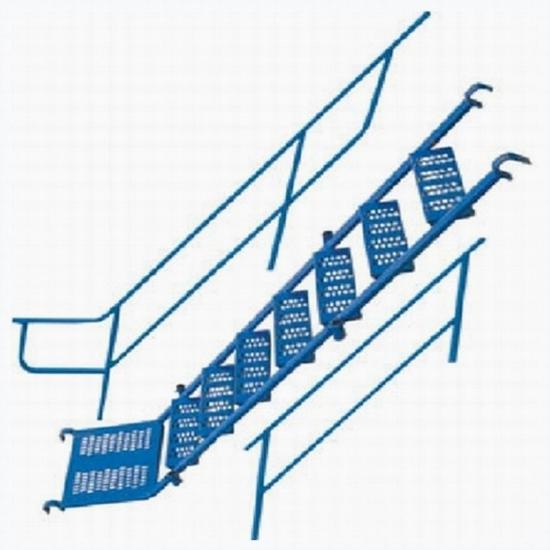

7' Bay Internal Stair for Frame Scaffolding

Code Description Stair Bay Stair Height Stair Width Weight(kg) Weight(lbs)
JST.768 J-Stair for Arch Frame 5'x6'8" 2134mm (7') 2035mm (6'8") 600mm (23.62') 41.28  91.02
JST.766 J-Stair for Arch Frame 5'x6'6" 2134mm (7') 2006mm (6'6") 600mm (23.62') 37.14  81.89
JST.764 J-Stair for Arch Frame 5'x6'4" 2134mm (7') 1955mm (6'4") 600mm (23.62') 36.97  81.52
JST.75 J-Stair for Arch Frame 5'x5' 2134mm (7') 1549mm (5') 600mm (23.62') 36.80  81.14
JST.OHR Outer Handrail for J-Stair 10.75  23.70
JST.IHR Inner Handrail for J-Stair 7.20  15.88
* Steel material: Q235. Stringer tube RHS 50x25x2.0mm. Stair treads: Punching steps.

* Finishing: Hot dip galvanized, painted, powder coated.





Internal Stair Application:

7' Bay Scaffold internal Stair for 5'x5' Mason Frames


7' Bay Scaffold internal Stair for 5'x6'4" or 5'x6'7" H Frames


7' Bay Scaffold internal Stair for 5'x6'8" Snap On Frames
