Ring Lock Scaffolding System for Residential Construction

Economical Nested Lock Scaffolding for Indonesia Market

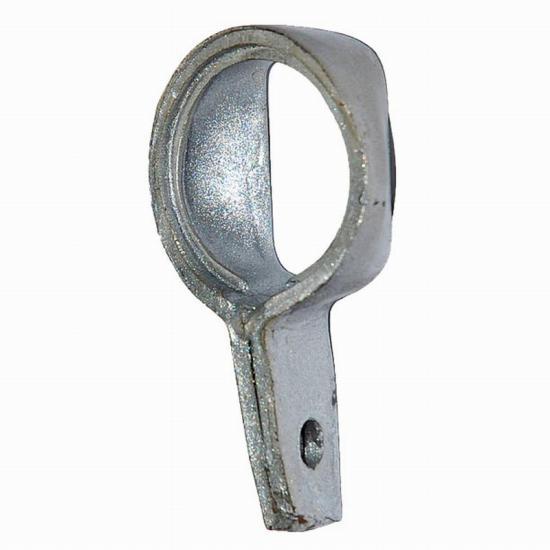

Nested Lock Ledger: A specially designed end joint plug is welded on both ends of the ledger pipe, and the outer semicircle is consistent with the radian of the vertical pipe.

The common sizes of ledgers 1800mm, 1500mm, 1200mm, 900mm, 600mm.

Item NO.:
NS.L
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
50 tons
Color:
Galvainized Colour; Powder Coated/Painted Red, Ora
Ｍaterial:
Steel

Inquire now

Product Detail

Nested Lock Scaffolding Ledger / Horizontal

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
NS.L.240	2.40M Ledger	Ø48x3.25; Q235	2400mm	8.66	19.10
NS.L.180	1.80M Ledger		1800mm	6.51	14.36
NS.L.150	1.50M Ledger		1500mm	5.44	11.99
NS.L.130	1.30M Ledger		1300mm	4.72	10.40
NS.L.120	1.20M Ledger		1200mm	4.36	9.61
NS.L.100	1.00M Ledger		1000mm	3.64	8.03
NS.L.090	0.90M Ledger		900mm	3.28	7.24
NS.L.080	0.80M Ledger		800mm	2.93	6.45
NS.L.070	0.70M Ledger		700mm	2.57	5.66
NS.L.060	0.60M Ledger		600mm	2.21	4.87
NS.L.050	0.50M Ledger		500mm	1.85	4.08

* Other tube thickness 3.5/3.0mm are available also by request.

* Finishing: Hot dip galvanized, powder coated, painted.
