Powder Coated Automatic Self-climbing Scaffolding System

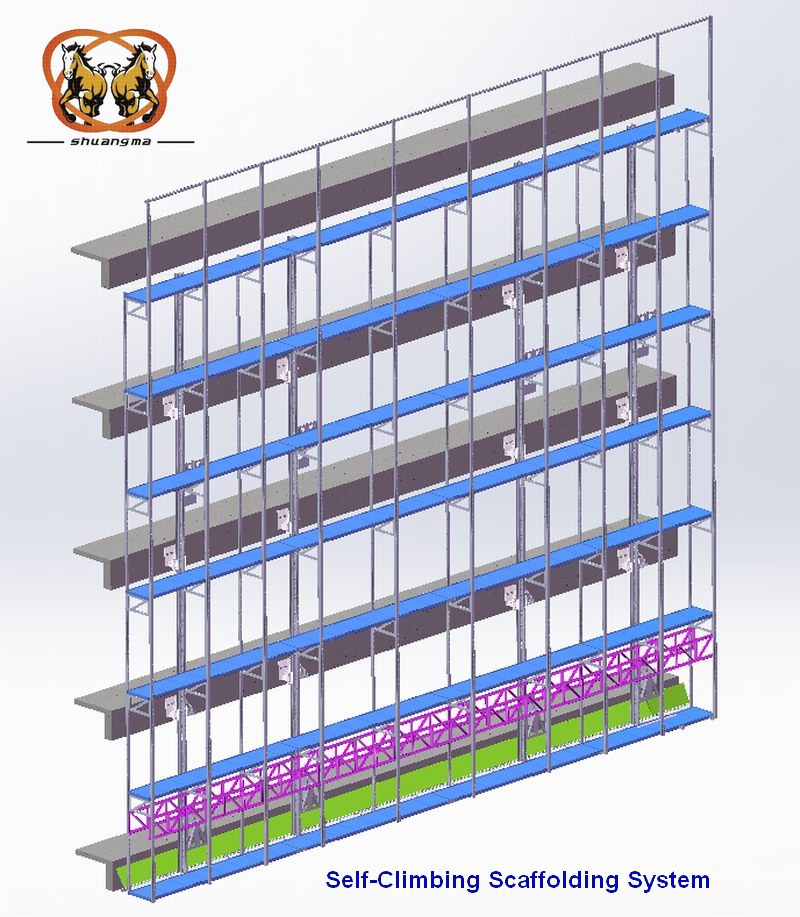

Shuangma Self Climbing Scaffolding Systems is suitable for high-rise buildings and super high-rise shear wall structures. This system integrated with the climbing mechanism makes for one-time installation and lifting. Also its built-in safety screen design can effectively prevent workers and objects falling when operating.
  • Item NO.:

    SELF-CLIMBING SCAFFO
  • Lead Time:

    35days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    50tons
  • Color:

    Powder Coated Blue
  • Material:

    Steel
  • Product Detail

ADVANTAGES OF SELF-CLIMBING SCFFOLDING SYSEM:

* Save material: reduce the usage of sacffolding

* Save manpower: automatic lifting

* Save time: automatic lifting to max within 30min, avoid setting up repeatly

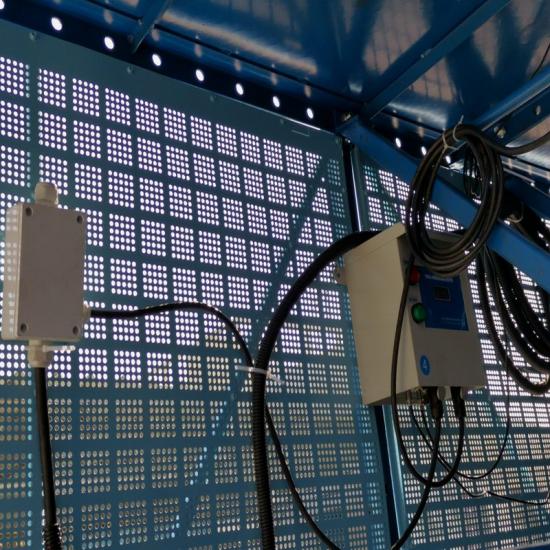

* More independent and more safer: electrical control system

* Professional operation: ensure safety and regular check up

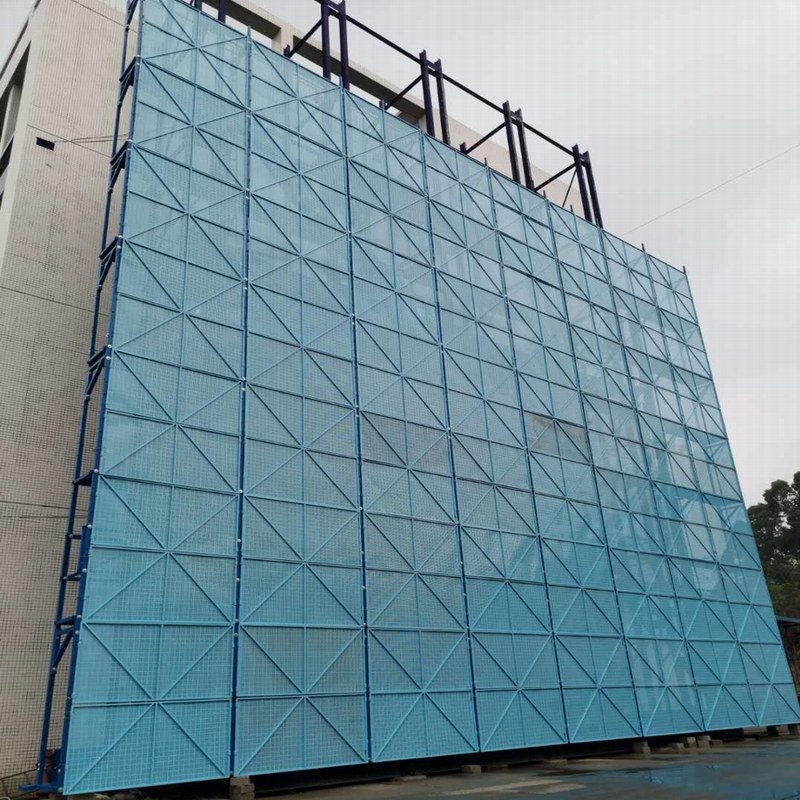

SM-20 Self-climbing Scaffolding Testing Sample Set


Product Paramenters

Product Name SM-20 Shuangma Self Climbing Scaffolding System
Scaffolding Unit Height 12.6-14.4m (41'4"-47'3")
Scaffolding Unit Width 0.9m (3')
One Deck Height 1.8m (6')
Horizontal Span <7.5m (24'7")
Distance From Wall 0.2-0.8m (8"-2'7")
Allowable Deviation ±15mm (0.6")
Elevation Hoist Rated Tonnage 7.5T (16536lbs)
Allowable Loading Capacity <3x2KN/m
Lifting Speed 3m/h (10'/hour)
Surface Treatment Powder Coated
Application High-rise building construction and shear wall structure

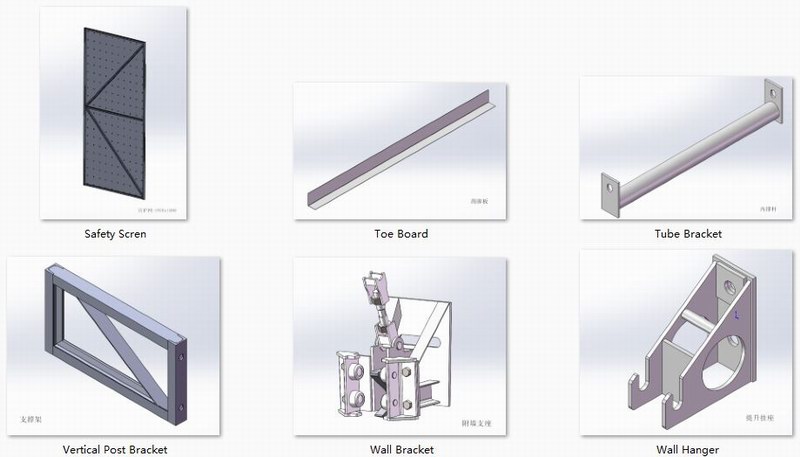

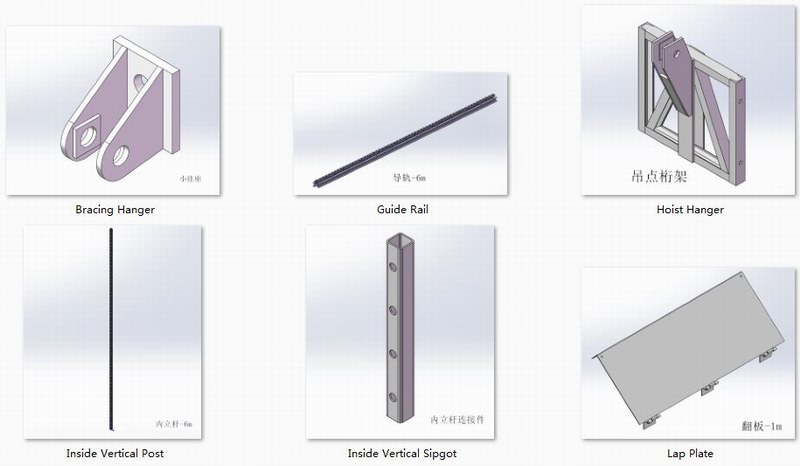

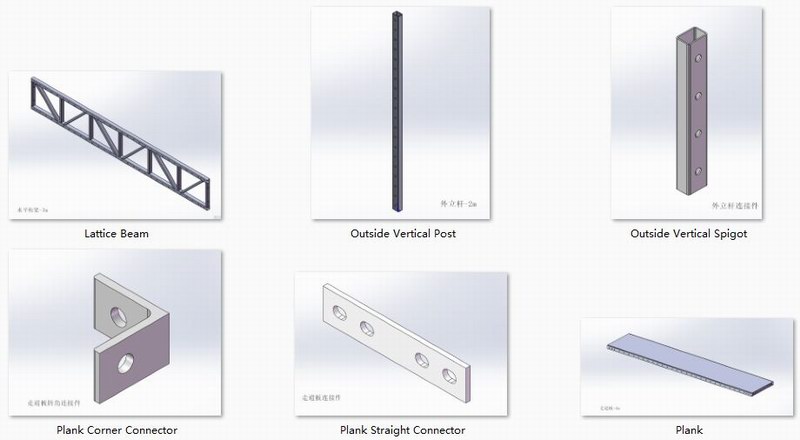

SM-20 SELF-CLIMBING SCFFOLDING COMPONENTS:

Main components: Vertical Post, Guide Rail, Wall Bracket, Wall Hanger, Hoist Hanger, Bracing Hanger, Vertical Post Bracket, Vertical Spigot, Tube Bracket, Plank, Plank Connector, Toe Board, Lap Plate, Safety Screen, Lattice Beam...

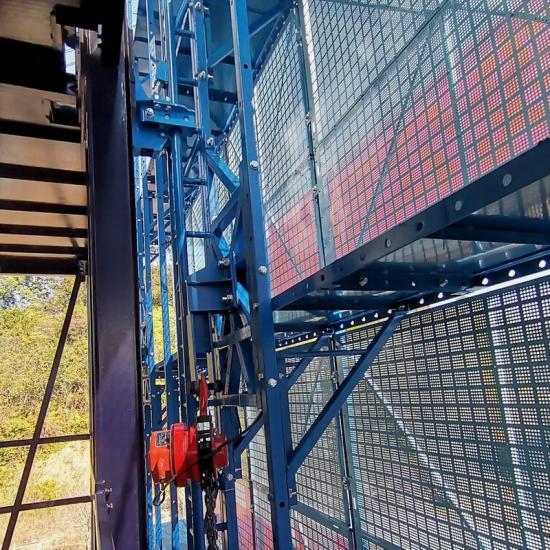

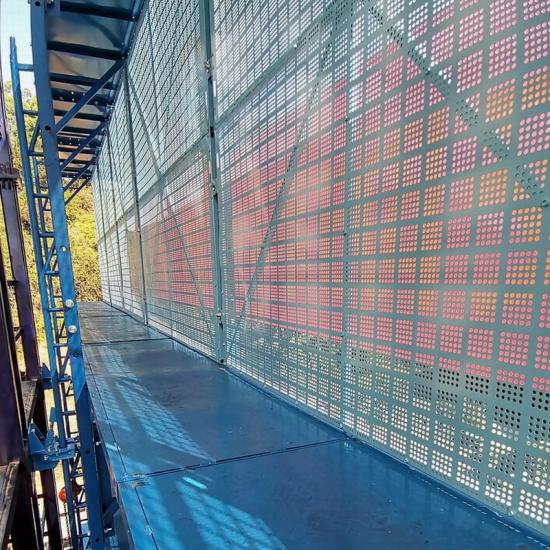

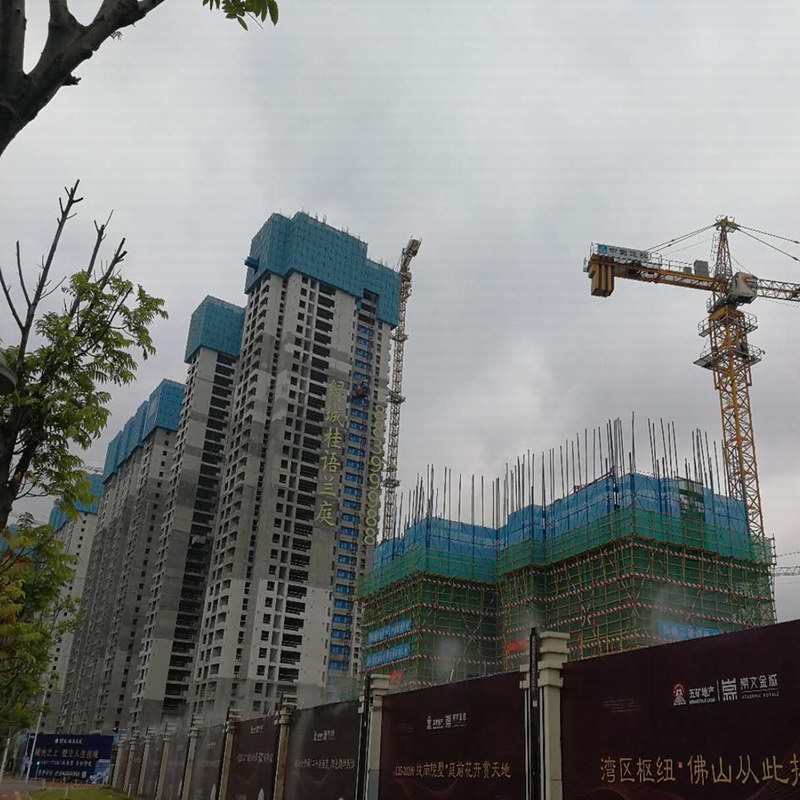

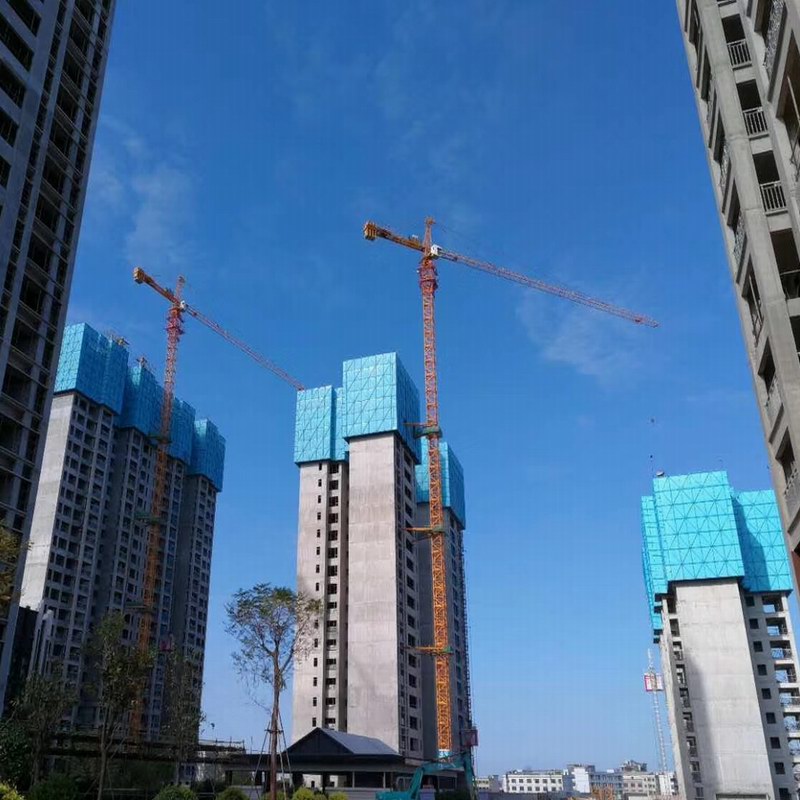

Scaffolding Projects
