South Africa Kwikstage Scaffolding Standard

South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Standards is made from O.D48.3mm x 3.25mm Scaffold Tube with V-lugs.

It is Vertical Parts of Kwikstage Modular System. Kwikstage Scaffolding is commonly used for Concrete Formwork Slab Support, also used in Construction and Building.

The main components of SA Kwikstage Scaffolding include: Standard, Ledger, Diagonal Brace, Hook-on Plank, Toe Board, Stair or Ladder, Cantilever Bracket, Strip Beam, decking Panel, and so on.

Item NO.:
KS.S(SA)
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Painted Blue, Red, Orange, Yel

Inquire now

Product Detail

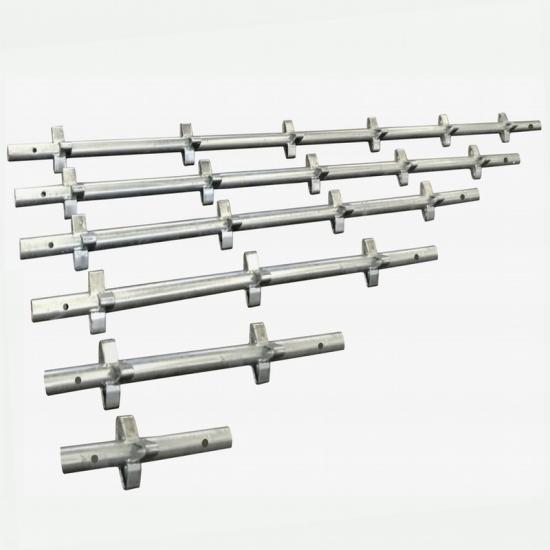

Kwikstage Scaffolding Standard / Vertical (South Africa)

Product Details:

Code	Description	Material	Size	Weight (kg)	Weight (lbs)
KS.S.400SA	4.00M Standard SA	Ø48x3.25; Q235-Q355	4000mm	19.37	42.71
KS.S.350SA	3.50M Standard SA		3500mm	16.95	37.37
KS.S.300SA	3.00M Standard SA		3000mm	14.53	32.04
KS.S.250SA	2.50M Standard SA		2500mm	12.11	26.70
KS.S.200SA	2.00M Standard SA		2000mm	9.69	21.37
KS.S.150SA	1.50M Standard SA		1500mm	7.26	16.01
KS.S.100SA	1.00M Standard SA		1000mm	4.84	10.67
KS.S.050SA	0.50M Standard SA		500mm	2.42	5.34
KS.S.PIN	0.20M Spigot Pin	Ø38x3; Q235	203mm	0.56	1.23

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Spigot Size: O.D 38x3x203mm

Steel Tube Grade: Q235-Q355

V-lug Distance: 500mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Welding Process: CO2/Mixture Gas Shielding Welding

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we

Subject : South Africa Kwikstage Scaffolding Standard

Tags :

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related products

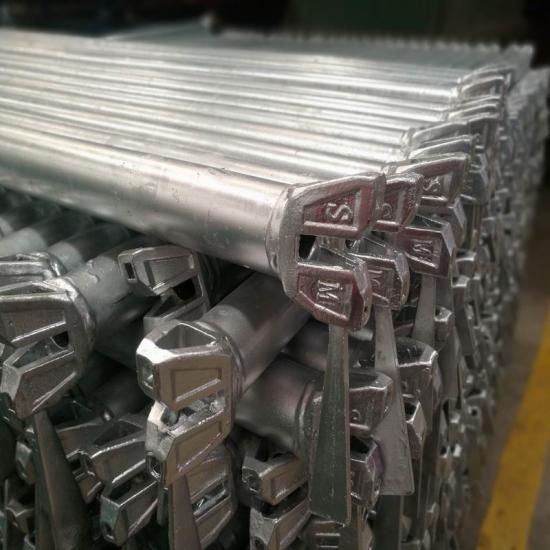

South Africa Type Kwikstage Scaffolding Ledger

South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Ledger is made from O.D48.3mm x 2.5mm Scaffold Tube with C-pressing ends and wedge pins. The main components of SA Kwikstage Scaffolding include: Standard, Ledger, Diagonal Brace, Hook-on Plank, Toe Board, Stair or Ladder, Cantilever Bracket, Strip Beam, decking 1

6061-T6 Aluminium Mobile Scaffolding Tower

Aluminum Mobile scaffolding tower is widely used in exhibition setups, indoor decoration or outside construction. It can be movable with caster wheels.We also can customize it according to your drawings. Components of a complete set scaffolding tower: Rung Frame, Rung Ladder Frame,Horizontal Brace, Diagonal Brace, Plain Brace, Stabilizer, Joint Pin1

Powder Coated Flip Lock American Scaffolding Frame

American Type Flip Lock Series Scaffolding Frame is designed and complied to the requirements of OHSA & ANSI A10.8. It is made by dia.1.625" or 1.69" high quality steel tubes with thickness 0.09" or 0.095". The locking device is flip lock. The frame is in 3' or 5' wide, and finishing is powder coating.

Adjustable Screw Jacks for System Scaffolding

System Scaffolding Screw Jack is the adjustable base for modular system scaffolding. It provides not only heavy duty load bearing support to the scaffolding, but also provide leveling adjustment. Solid screw jack is made by the solid steel rod with dia.37.5mm after rolling the thread. Hollow screw jack is made by O.D 38x5mm or 5.5mm sealess steel t1

Cross Lock Scaffolding Ledger / Horizontal

Cross Lock Scaffolding is a kind of new modular scaffolding system which in simple structure and fabricated with few accessories, it can provide easy erection and dismantling, and speeded and high efficiency performance, and it is use for residential, commercial construction. Scaffolding Components: Standard, Ledger.

Economical Nested Lock Scaffolding for Indonesia Market

Nested Lock Ledger: A specially designed end joint plug is welded on both ends of the ledger pipe, and the outer semicircle is consistent with the radian of the vertical pipe. The common sizes of ledgers 1800mm, 1500mm, 1200mm, 900mm, 600mm.

Powder Coated Canadian Type of Frame Scaffolding

Canadian Lock Series Scaffolding Frames are manufactured using high strength 1.69″ O.D. x 0.095"t steel tubing, and feature fully coped joints for superior strength and durability. The frames are available in Blue Powder Coated, or Hot-dipped Galvanized finish. All of our frames come with pair of 1″ coupling pins and spring retainers, to kee1

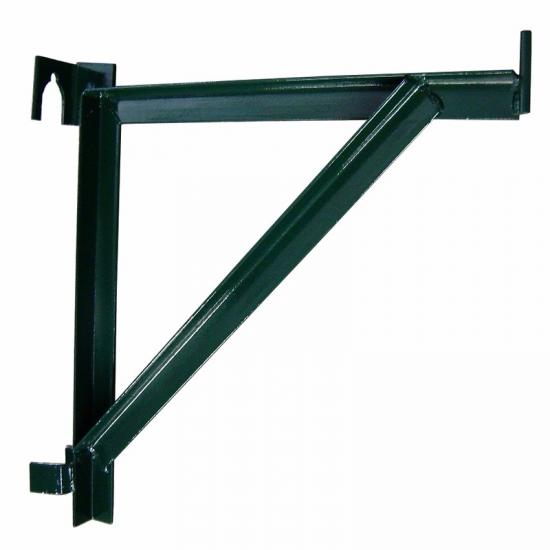

Powder Coated Tubular Side Bracket with Saddle Hanger
