Ring Lock Scaffolding System for Residential Construction

Powder Coated Scaffolding Guardrail Post for Scaffolding Frames

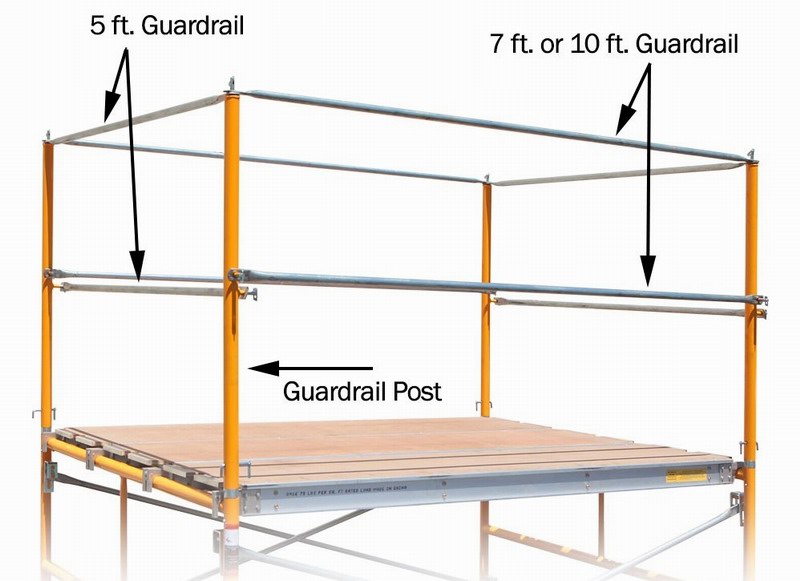

Guardrail Posts are set up on top of the scaffolding platform for installing guardrail braces. They provide fall protection to the people when working on the scaffold platform.

Guardrail Posts are made by dia.1.65" x 0.09"t (O.D 42x2.3mm) or dia. 1.69"x0.095"t (O.D 43x2.5mm) steel tubes. They are strong engough to hold the guardrail braces.

Item NO.:
GRP
Lead Time:
20days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
200PCS
Color:
Galvanized Colour, Powder Coated Colour: Red, Blue
Ｍaterial:
Steel

Inquire now

Product Detail

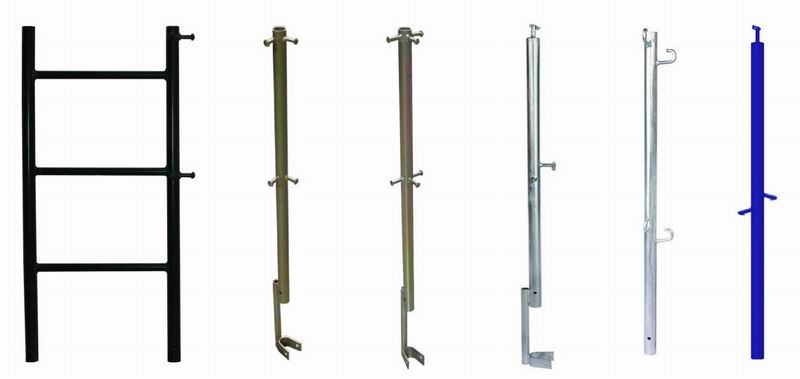

Guard Rail Post for Scaffolding Frames:

Code	Description	Weight(kg)	Weight(lbs)
GRP.SO.18L	Guard Rail Post with 18" Ladder Snap On	6.34	13.98
GRP.SO.22R	Guard Rail Standard Post 2 Rivets Snap On	3.25	7.17
GRP.SO.23R	Guard Rail Corner Post 3 Rivets Snap On	3.35	7.39
GRP.FL.12R	Guard Rail Post 1x2 Rivets Flip Lock with kicker	3.20	7.06
GRP.FL.13R	Guard Rail Post 1x3 Rivets Flip Lock with kicker	3.03	6.68
GRP.DL.12R	Guard Rail Post with 1x2 Rivets Drop Lock with kicker	3.67	8.09
GRP.DL.13R	Guard Rail Post with 1x3 Rivets Drop Lock with kicker	3.51	7.74
GRP.FL.12RF	Guard Rail Post Female with 1x2 Rivets Flip Lock	2.90	6.39

Surface Treatment: Powder Coated, Electric Galvanized, Hot Dip Galvanized.
