Ring Lock Scaffolding System for Residential Construction
Australian Kwikstage Scaffolding
Home

Modular Scaffolding

Australian Kwikstage Scaffolding

Hot Dip Galvanized Speedshore Kwikstage Scaffolding Vertical Post

Speedshore Kwikstage Standard
Speedshore Kwikstage Standard Speedshore Kwikstage Standard Speedshore Kwikstage Standard

Hot Dip Galvanized Speedshore Kwikstage Scaffolding Vertical Post

Speed Shore Kwikstage scaffolding is the type of heavy duty kwiskstage system scaffold that used for concrete slab formwork solutions with sleeved standard, C-ledgers, trigger brace, solid adjustable screw jack base , forkhead jacks, rail post etc.

  • Item NO.:

    KS.S

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    500PCS

  • Color:

    Galvainized Colour; Painted Blue, Red, Orange, Yel

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

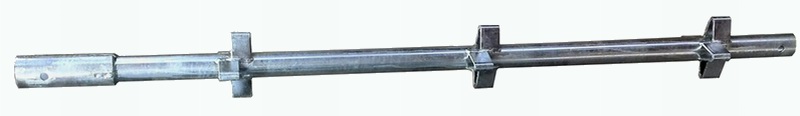

Speed Shore Kwikstage Scaffolding Standard / Vertical (with Socket)

Code Description Material Size Weight (kg) Weight (lbs)
KS.S.400S 4.0M Standard Ø48.3x4.0mm; Q235-Q355 3960mm (13') 23.29  51.35
KS.S.350S 3.5M Standard 3465mm (11'4") 20.50  45.20
KS.S.300S 3.0M Standard 2970mm (9'9") 17.71  39.05
KS.S.250S 2.5M Standard 2475mm (8'1") 14.92  32.90
KS.S.200S 2.0M Standard 1980mm (6'6") 12.13  26.75
KS.S.150S 1.5M Standard 1485mm (4'10") 9.34  20.59
KS.S.100S 1.0M Standard 990mm (3'3") 6.55  14.44
KS.S.050S 0.5M Standard 495mm (1'8") 3.76  8.29
KS.S.038S 0.38M Top Standard 381mm (1'3") 2.31  5.09


Features:

Tube Dimension: O.D 48.3x4.0mm. Other tube thickness 3.5mm/3.25mm/3.0mm is also available by request.

Socket Size: O.D 60.3x4.0x170mm

Steel Tube Grade: Q235-Q355

V-lug Distance: 495mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Quality Standard: AS/NZS 1576

Welding Process: CO2/Mixture Gas Shielding Welding
