Ring Lock Scaffolding System for Residential Construction
German Ring Lock Scaffolding
Home

Modular Scaffolding

German Ring Lock Scaffolding

Hot Dip Galvanized Ring Lock Scaffolding Level Brace / Plain Brace

Ring Lock Scaffolding Level Brace
Ring Lock Scaffolding Level Brace Ring Lock Scaffolding Level Brace Ring Lock Scaffolding Level Brace

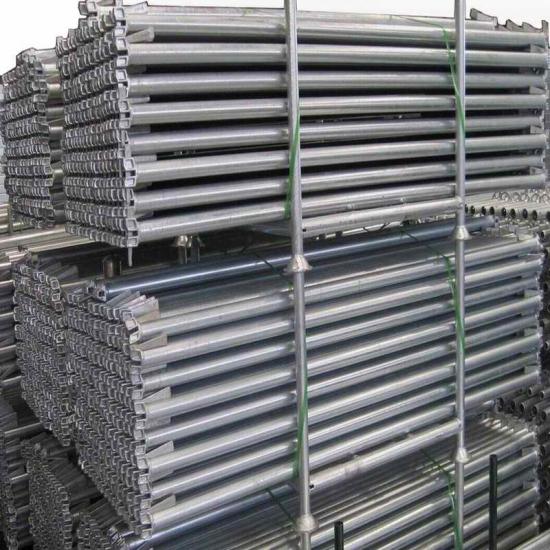

Hot Dip Galvanized Ring Lock Scaffolding Level Brace / Plain Brace

Ring Lock Scaffolding Level Brace, also called Plain Brace, is main component of system scaffolding which use as diagonal ledger. It is used in the large bay mobile scaffolding tower and gives additional strength to the tower structure and keep the tower stable.

  • Item NO.:

    RS.LB.xxx

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    200PCS

  • Color:

    Galvainized Colour; Powder Coated or Painted Blue,
Inquire now
  • Product Detail

Ring Lock Scaffolding Level Brace / Plain Brace / Diagonal Ledger


Product Details:

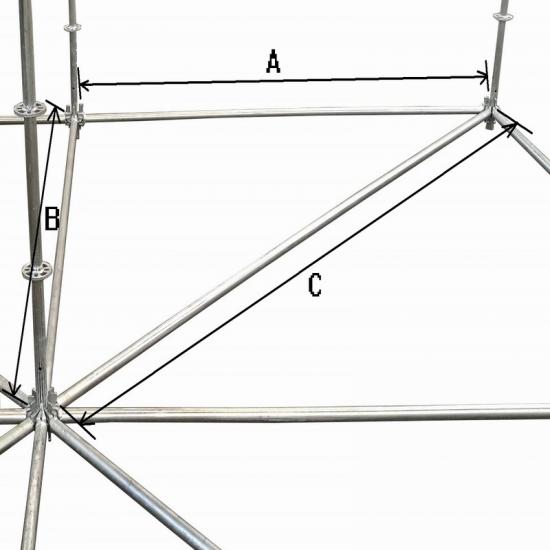

Code Description Material Size Weight(kg) Weight(lbs)
RS.LB.307307 3.07x3.07M Level Brace Ø48.3x3.25mm; Q235-Q355 A: 3072mm; B: 3072mm; C: 4344mm 16.12  35.54
RS.LB.307257 3.07x2.57M Level Brace A: 3072mm; B: 2572mm; C: 4007mm 14.91  32.88
RS.LB.307207 3.07x2.07M Level Brace A: 3072mm; B: 2072mm; C: 3705mm 13.83  30.50
RS.LB.257257 2.57x2.57M Level Brace A: 2572mm; B: 2572mm; C: 3637mm 13.58  29.94
RS.LB.257207 2.57x2.07M Level Brace A: 2572mm; B: 2072mm; C: 3303mm 12.39  27.32
RS.LB.207207 2.07x2.07M Level Brace A: 2072mm; B: 2072mm; C: 2930mm 11.05  24.37

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.

Steel Tube Grade: Q235-Q355

Ledger Fitting: Casting Steel

Ledger Wedge Pin: 6mm

Suface Finishing: Hot Dip Galvanized is recommended, Powder Coated or Painted is also available.


Quality Standard: EN12810
