Ring Lock Scaffolding System for Residential Construction
Aluminum Ring Lock Scaffolding
Home

Aluminum Scaffolding

Aluminum Ring Lock Scaffolding

Aluminum Ring Lock Scaffolding Standard Vertical

Aluminum Ring Lock Scaffolding Standard
Aluminum Ring Lock Scaffolding Standard Aluminum Ring Lock Scaffolding Standard Aluminum Ring Lock Scaffolding Standard Aluminum Ring Lock Scaffolding Standard Aluminum Ring Lock Scaffolding Standard

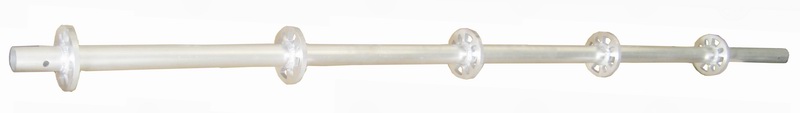

Aluminum Ring Lock Scaffolding Standard Vertical

Aluminum Ring Lock Scaffolding is the industry standard for modular scaffolding and offers unbeatable durability, simplicity and versatility. Ring Lock is the scaffolding of choice globally for residential building, industrial, construction sites, aircraft building and maintenance, performing arts and large events, and so on.

  • Item NO.:

    ARS.S

  • Lead Time:

    50days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    500PCS

  • Color:

    Self Colour, Powder Coating Colour
Inquire now
  • Product Detail

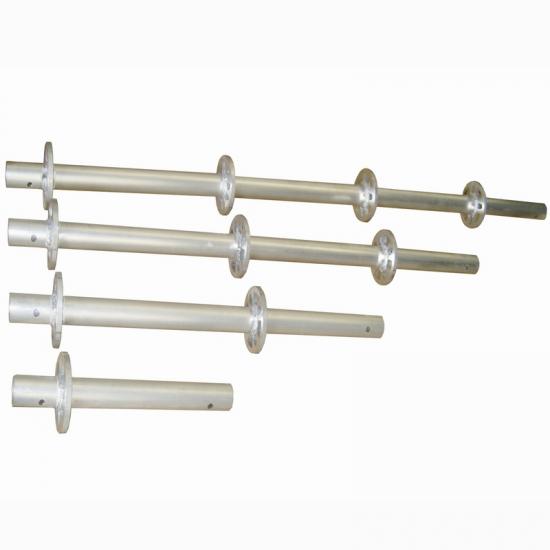

Aluminum Ring Lock Scaffolding Scaffolding Standard / Vertical


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
ARS.V.400 4.00M Standard Ø48.4x4.2mm; Alu. 6061-T6 4000mm (13'1") 8.76  19.32
ARS.V.350 3.50M Standard 3500mm (11'6") 7.72  17.02
ARS.V.300 3.00M Standard 3000mm (9'10") 6.67  14.71
ARS.V.250 2.50M Standard 2500mm (8'2") 5.63  12.41
ARS.V.200 2.00M Standard 2000mm (6'7") 4.59  10.12
ARS.V.150 1.50M Standard 1500mm (4'11") 3.55  7.83
ARS.V.100 1.00M Standard 1000mm (3'3") 2.51  5.53
ARS.V.050 0.50M Standard 500mm (1'8") 1.47  3.24


Features:

Aluminum Tube Dimension: O.D 48.4x4.2mm.

Alu Alloy Grade: 6061-T6, 6082-T6

Surface Finishing: Self-finishing, Powder Coated

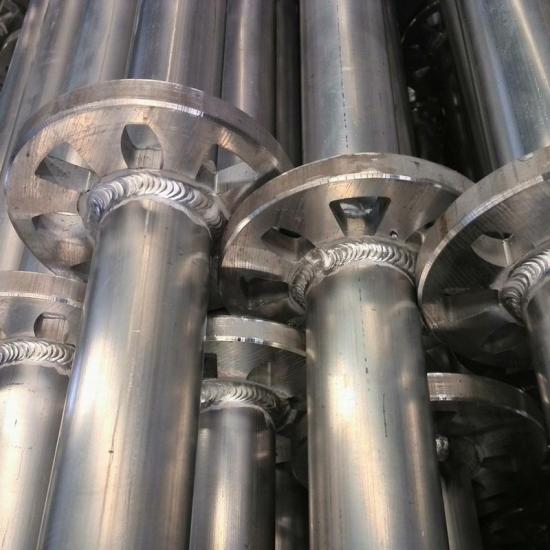

Welding Process: Argon-arc welding
