Ladder Style H-shoring Frame Scaffolding

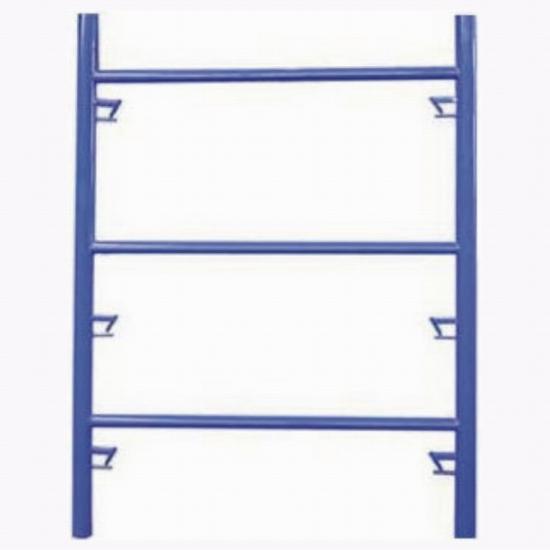

H-Shoring Frame is a knid of traditional shoring scaffolding, it is a kind ladder frame for heavy duty support. It is made from O.D.60x3.5mm or O.D. 60x4.0mm high quality steel tube for frame leg, and O.D. 42x2.2mm tube for frame horizontals.

Item NO.:
HSF
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Painted Blue, Red, Orange, Yel
Ｍaterial:
Steel

Inquire now

Product Detail

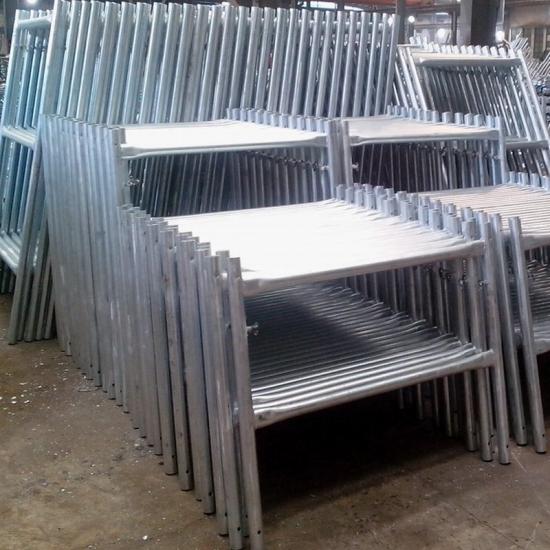

H-Shoring Frame Scaffolding

Main Components or accessories: H-frame, Shoring Brace, Shoring Spigot (Coupling Pin), Shoring Base Jack, Shoring U-head Jack, and so on.

Product Details:

H-Shoring Frames

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
HSF.476	4'x7'6" H-Shoring Frame	Frame leg Ø60.3x3.5mm, Horizontal tube Ø42x2.2mm; Q235-Q355	1219 x 2286mm	32.96	72.68
HSF.464	4'x6'4" H-Shoring Frame		1219 x 1930mm	29.50	65.05
HSF.46	4'x6' H-Shoring Frame		1219 x 1829mm	28.50	62.84
HSF.45	4'x5' H-Shoring Frame		1219 x 1524mm	23.00	50.72
HSF.44	4'x4' H-Shoring Frame		1219x1219mm	20.00	44.10
HSF.43	4'x3' H-Shoring Frame		1219x914mm	14.60	32.19
HSF.264	2'x6'4" H-Shoring Frame		610 x 1930mm	24.50	54.02
HSF.26	2'x6' H-Shoring Frame		610 x 1829mm	23.50	51.82
HSF.25	2‘x5' H-Shoring Frame		610 x 1524mm	19.30	42.56
HSF.24	2'x4' H-Shoring Frame		610 x 1219mm	16.30	35.94
HSF.23	2'x3' H-Shoring Frame		610 x 914mm	12.10	26.68

Shoring Cross Brace

Code	Size (Metric)	Material	Size (Imperial)	Weight(kg)	Weight(lbs)
SF.BR.74	7'x4' Shoring Brace	Ø28x2.0mm; Q235	2134 x 1219mm	6.45	14.22
SF.BR.73	7'x3' Shoring Brace		2134 x 914mm	6.10	13.45
SF.BR.730	7'x30" Shoring Brace		2134 x 762mm	5.96	13.14
SF.BR.72	7'x2' Shoring Brace		2134 x 610mm	5.84	12.88
SF.BR.65	6'x5' Shoring Brace		1829 x 1524mm	6.26	13.80
SF.BR.64	6'x4' Shoring Brace		1829 x 1219mm	5.80	12.79
SF.BR.63	6'x3' Shoring Brace		1829 x 914mm	5.40	11.91
SF.BR.62	6'x2' Shoring Brace		1829 x 610mm	5.10	11.25
SF.BR.54	5'x4' Shoring Brace		1524 x 1219mm	5.15	11.36
SF.BR.53	5'x3' Shoring Brace		1524 x 914mm	4.70	10.36
SF.BR.530	5'x30" Shoring Brace		1524 x 762mm	4.50	9.92
SF.BR.52	5'x2' Shoring Brace		1524 x 610mm	4.36	9.61
SF.BR.44	4'x4' Shoring Brace		1219 x 1219mm	4.56	10.05
SF.BR.43	4'x3' Shoring Brace		1219 x 914mm	4.05	8.93
SF.BR.42	4'x2' Shoring Brace		1219 x 610mm	3.65	8.05
SF.MBR	Multi-holes Braces 6'4"-7'3"		1930-2210mm	5.88	12.97

Shoring Frame Accessories

Code	Description	Material	Weight(kg)	Weight(lbs)
SF.TP.36	Top Insert Prop 1050mm (3'6")	Steel Grade: Q235	6.00	13.23
SF.SSJ.24	Shoring Solid Jack Base 24"		7.20	15.88
SF.HSJ.24	Shoring Hollow Jack Base 24"		5.89	12.99
SF.HUJ.24	Shoring Hollow U-head Jack 24"		8.30	18.30
SF.BP.66	Shoring Base Plate 6"x6"		2.27	5.01
SF.BP.88	Shoring Base Plate 8"x8"		3.69	8.14
SF.UH.88	Shoring U Head 8"x8"		5.75	12.68
SF.UH.89	Shoring U Head 8"x9"		6.15	13.56
SF.CLP	Collar Lock Pin		0.42	0.93
SF.CP	Coupling Pin		0.52	1.15
