Ring Lock Scaffolding System for Residential Construction

Aluminum Kwikstage Scaffolding Ledger / Horizontal

Aluminium Kwikstage Scaffolding system provides a highly flexible and easy to assemble scaffolding system that has been designed along the same lines as the steel Kwikstage range of products.

Item NO.:
AKS.L
Lead Time:
50days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
800PCS
Color:
Self-Colour; Powder Coating Colour

Inquire now

Product Detail

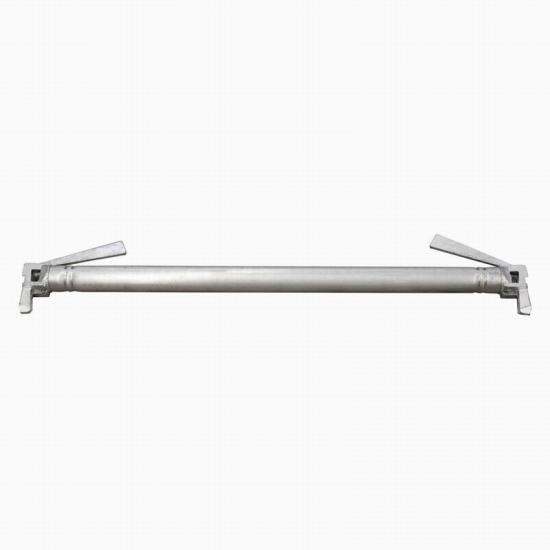

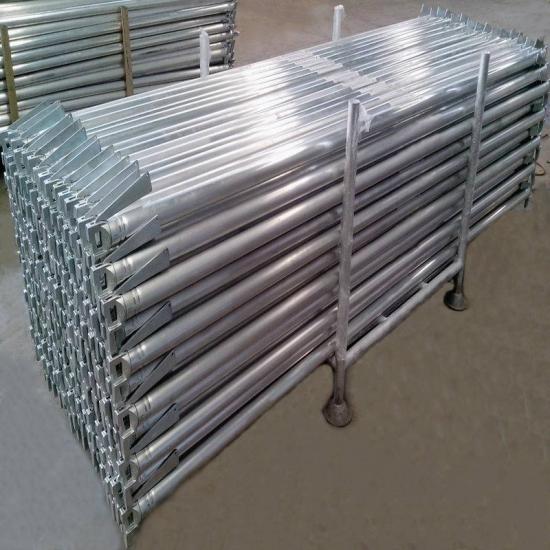

Aluminum Kwikstage Ledger / Horizontal

Product Details:

Code	Description	Material	Size	Weight (kg)	Weight (lbs)
AKS.L.307	3.07M Ledger	Alu. Alloy 6061-T6, Ø50.3x3.2mm	3072mm	5.72	12.61
AKS.L.257	2.57M Ledger		2572mm	5.08	11.20
AKS.L.207	2.07M Ledger		2072mm	4.45	9.81
AKS.L.157	1.57M Ledger		1572mm	3.80	8.38
AKS.L.109	1.09M Ledger		1088mm	3.11	6.86
AKS.L.073	0.73M Ledger		732mm	2.75	6.06

AKS.L.305	3.05M Ledger		3048mm	5.68	12.52
AKS.L.244	2.44M Ledger		2438mm	4.91	10.83
AKS.L.213	2.13M Ledger		2134mm	4.52	9.97
AKS.L.183	1.83M Ledger		1829mm	4.13	9.11
AKS.L.152	1.52M Ledger		1524mm	3.74	8.25
AKS.L.122	1.22M Ledger		1219mm	3.35	7.39
AKS.L.091	0.91M Ledger		914mm	2.95	6.50
AKS.L.061	0.61M Ledger		610mm	2.56	5.64
AKS.L.127	1.27M Ledger		1268mm	3.42	7.54
AKS.L.076	0.76M Ledger		762mm	2.77	6.11
AKS.L.068	0.68M Ledger		680mm	2.67	5.89

AKS.L.300	3.00M Ledger		3000mm	5.62	12.39
AKS.L.250	2.50M Ledger		2500mm	4.99	11.00
AKS.L.200	2.00M Ledger		2000mm	4.35	9.59
AKS.L.150	1.50M Ledger		1500mm	3.71	8.18
AKS.L.100	1.00M Ledger		1000mm	3.07	6.77
