Ring Lock Scaffolding System for Residential Construction

Cross Lock Scaffolding Standard / Vertical

Cross Lock Scaffolding is a kind of new modular scaffolding system which in simple structure and fabricated with few accessories, it can provide easy erection and dismantling, and speeded and high efficiency performance, and it is use for residential, commercial construction.

Scaffolding Components: Standard (Vertical), Ledger (Horizontal).

Item NO.:
CRS.S
Lead Time:
20days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
1000PCS
Color:
Galvainized Colour, Painted Red / Orange Colour

Inquire now

Product Detail

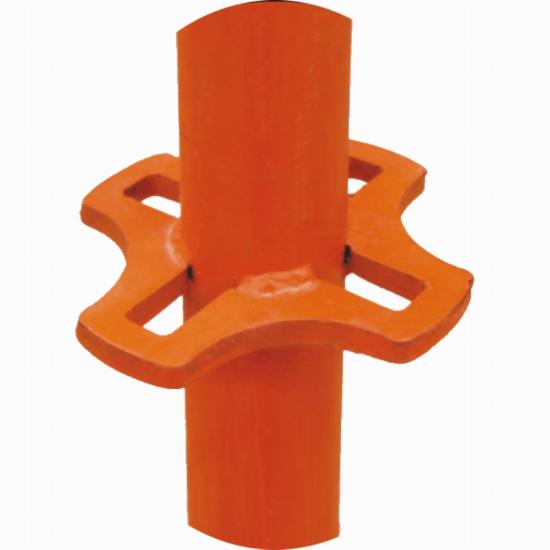

Cross Lock Scaffolding Standard / Vertical

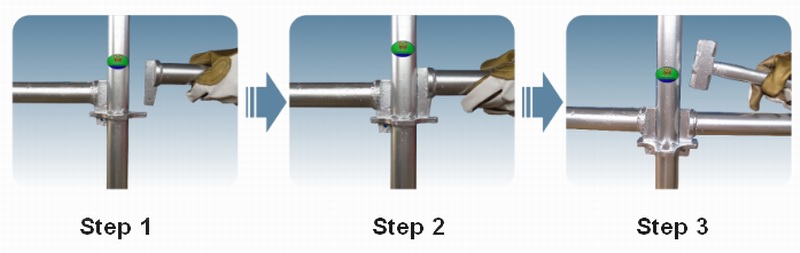

Erecting Instruction:

Product Details:

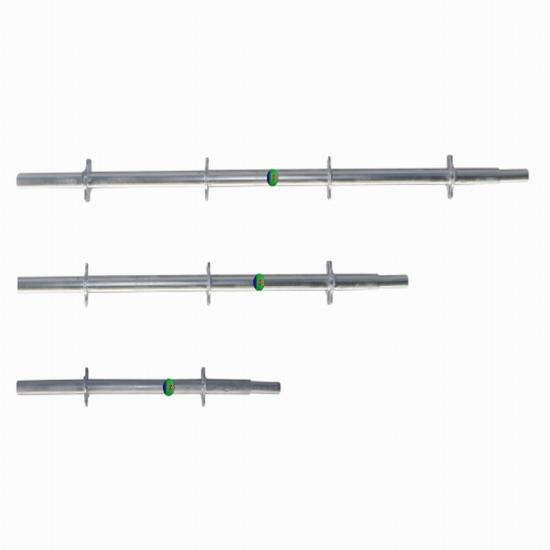

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
CRS.S.300	3.0M Standard	Ø48x3.0; Q235-Q355	3000mm	12.67	27.94
CRS.S.240	2.4M Standard		2400mm	10.31	22.73
CRS.S.180	1.8M Standard		1800mm	7.95	17.53
CRS.S.120	1.2M Standard		1200mm	5.59	12.33
CRS.S.090	0.9M Standard		900mm	4.24	9.35
CRS.S.060	0.6M Standard		600mm	3.24	7.14

Features:

Tube Dimension: O.D 48.3x3.0mm. Other tube thickness 3.5mm/3.25 is available by request.

Steel Tube Grade: Q235-Q355

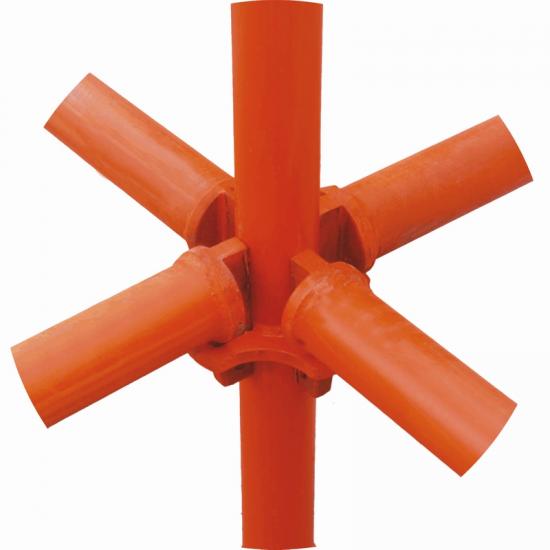

Ledger Node Connector: Casting Steel

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Welding Process: CO2 / Mixture gas shielding welding

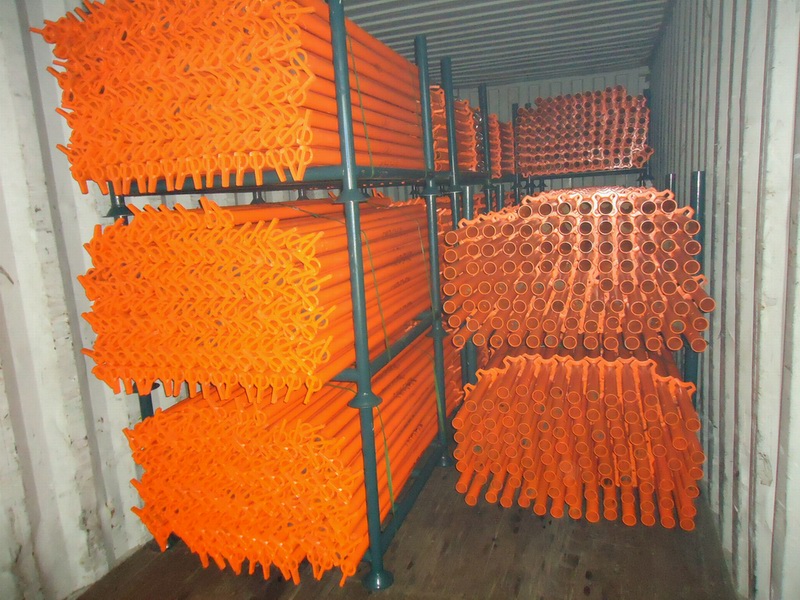

Packing and Loading: Packed on racks

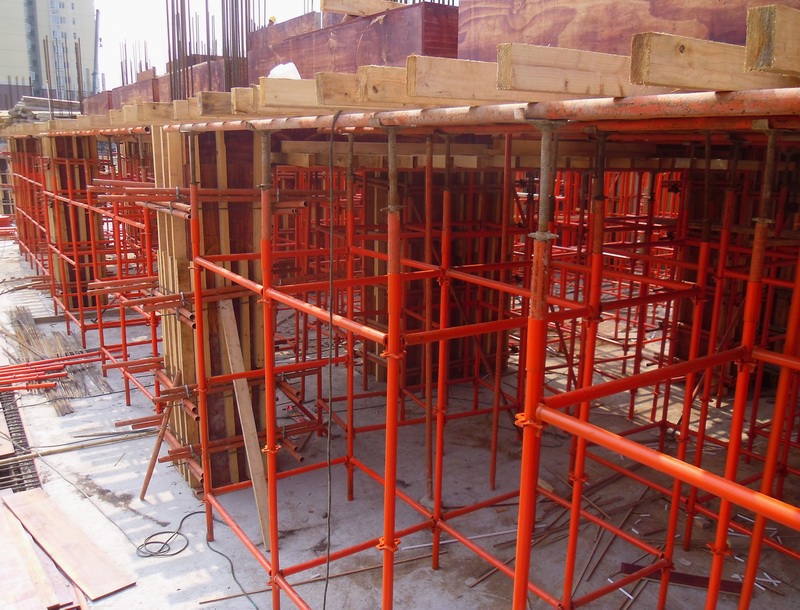

Cross Lock Scaffolding House Project:
