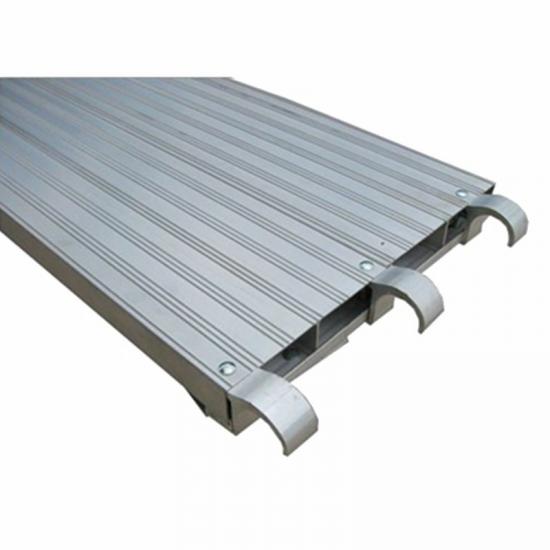

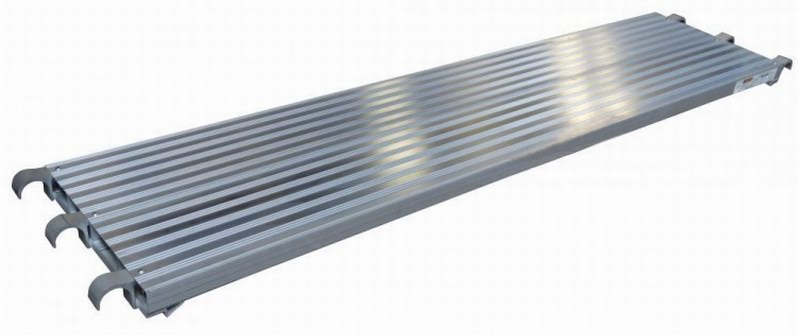

American Style Full Aluminum Plank 19" Wide

All aluminum Plank is made by 6061-T6 or 6082-T6 aluminum extrusion, plank width 19" (483mm), plank length from 3' to 10'.

The plank complies with OHSA & ANSI A10.8 requirements. Safety load is 75lb/ft2.

  • Item NO.:

    AP

  • Lead Time:

    40days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    300PCS

  • Color:

    Self-colour

  • Ｍaterial:

    Aluminium
Inquire now
  • Product Detail

American Type All Aluminum Plank 483mm (19") wide

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
AP.10 483x3048mm 19" x 10' 18.22  40.18
AP.8 483x2438mm 19" x 8' 14.98  33.03
AP.7 483x2134mm 19" x 7' 13.36  29.46
AP.6 483x1829mm 19" x 6' 11.73  25.86
AP.5 483x1524mm 19" x 5' 10.11  22.29
AP.4 483x1219mm 19" x 4' 8.49  18.72
AP.3 483x914mm 19" x 3' 6.86  15.13
