Traditional Painted Steel Formworks

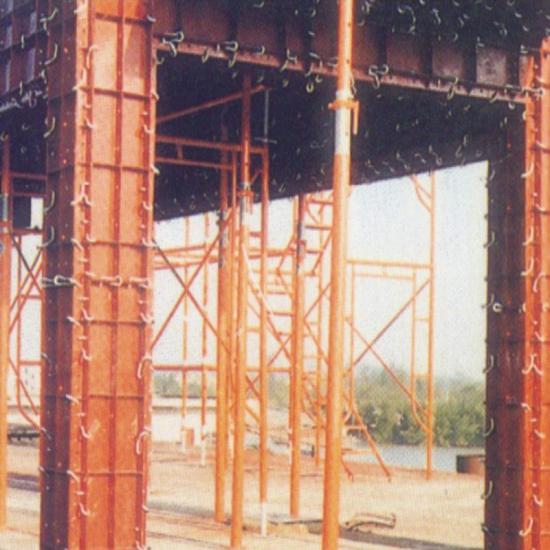

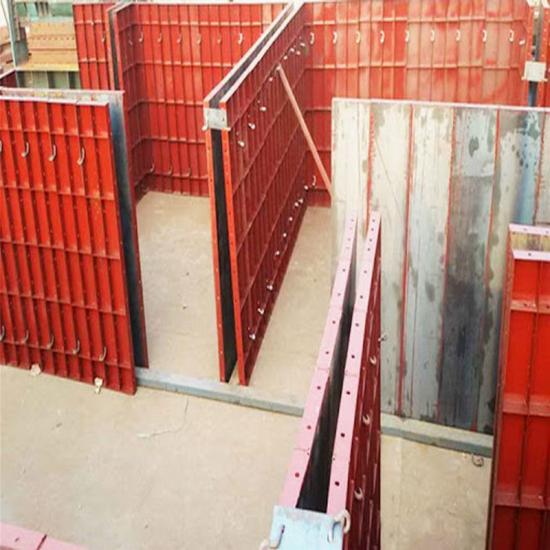

Steel formwork is a temporary setup for storing concrete until it sets. Formworks are wide used for slabs, walls, beams, columns' concrete casting in building construction. Steel is a perfect material for making formwork because it will never bend or warp while pouring concrete. Steel formwork has the capability to store a large amount of concrete. Steel is unyielding which makes it non-adherable with concrete. It is possible to stack steel plates for making taller and wider structures.
  • Item NO.:

    STEEL FORMWORK
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500PCS
  • Color:

    Painted Red colour
  • Material:

    Steel
  • Product Detail

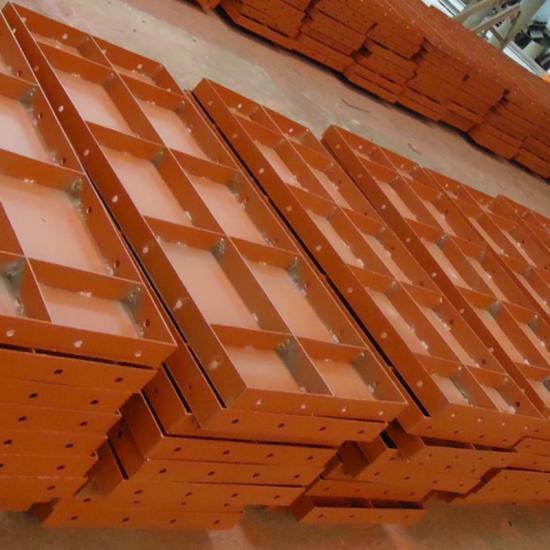

Traditional Steel Formworks

Panel Plate thinckness: 3mm

Rib Plate thickness: 4-5mm

Steel Grade: Q235

Finishing: Painted

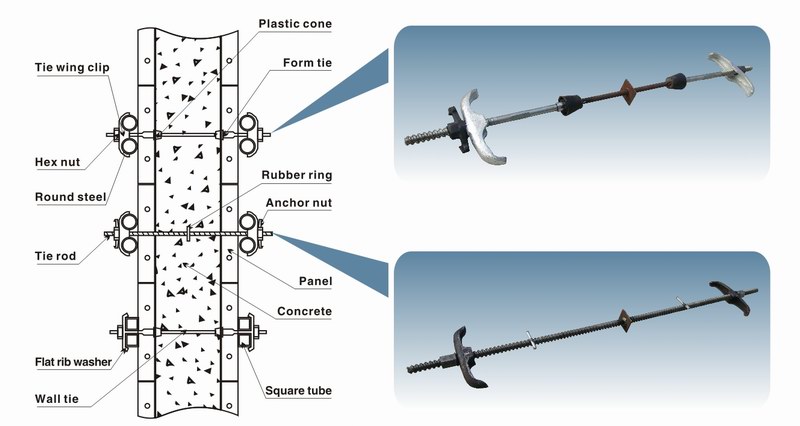

Mean of Formwork Jointing: By U-clips or By Pins.


Common Size of steel formworks:

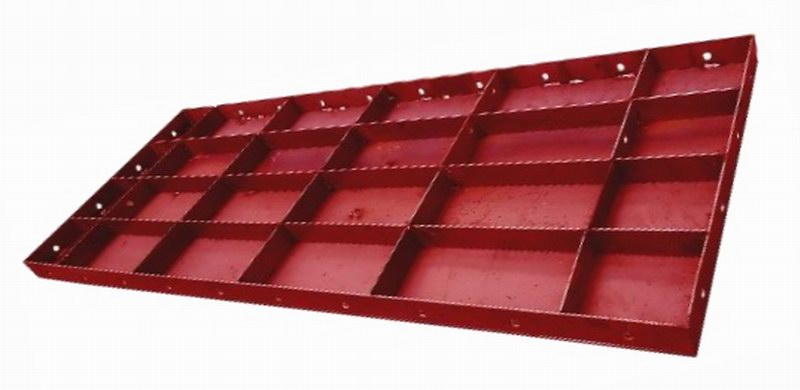

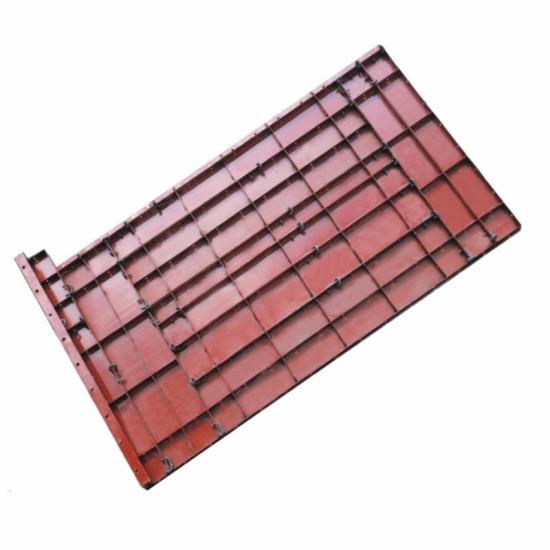

1. FLAT FORMWORK

Width(mm) 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 800
Length (mm) 450, 600, 750, 900, 1200, 1500, 1800
Rib Height (mm) 55
Traditional Steel Formworks





2. INSIDE CORNER FORM

Width (mm)
150x150, 100x100,
Length (mm) 450, 600, 750, 900, 1200, 1500
Rib Height (mm) 55

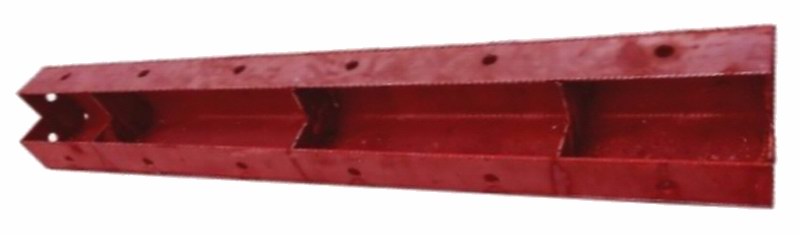

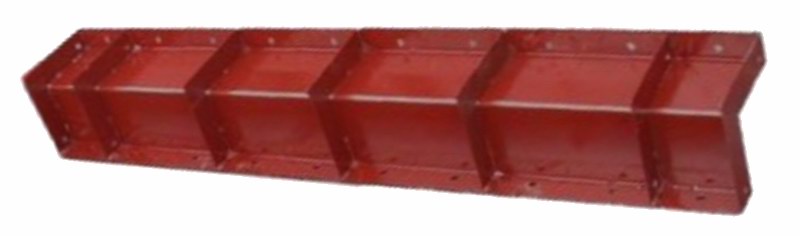

3. OUTSIDE CORNER FORM

Width (mm) 150x150, 100x100
Length (mm) 450, 600, 750, 900, 1200, 1500
Rib Height (mm) 55





4. ANGLE CORNER FORM

Width (mm) 50x50
Length (mm) 450, 600, 750, 900, 1200, 1500
Rib Height (mm) 55

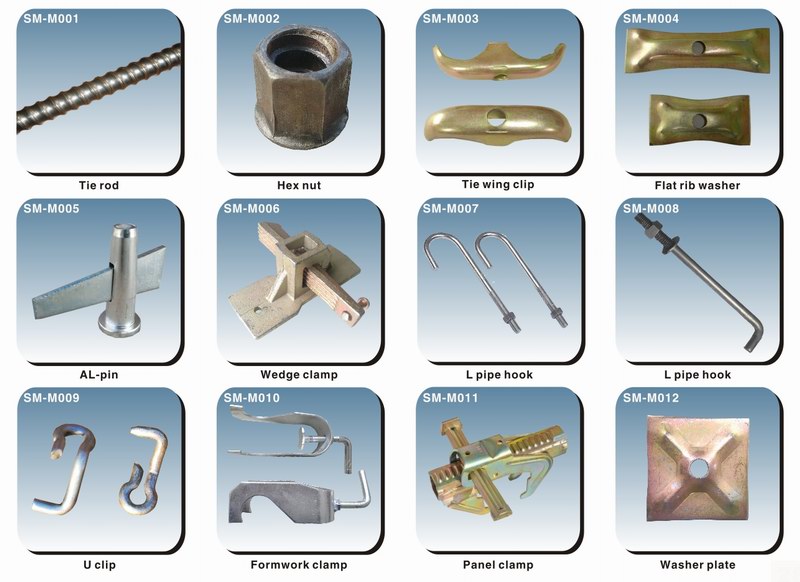

5. FORMWORK ACCESSORIES
