SNAP ON SERIES FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.42x2.3mm (OD.1.625"x0.09" thickness)
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Snap On Lock
* First lock down 165mm(6.5") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 813mm(32"), 610mm(2')
* Coupling Pin: CP3 (Coupling Pin with 1/8" Collar)
* Finishing options: Powder Coated, Hot dip galvainzed

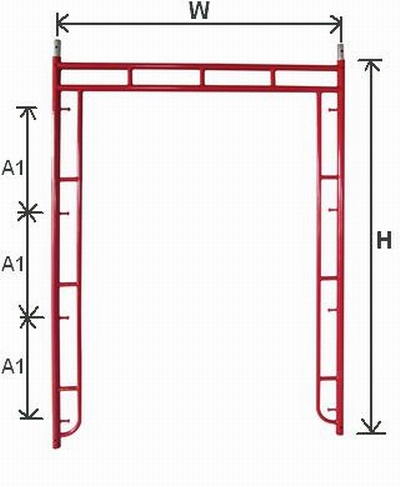

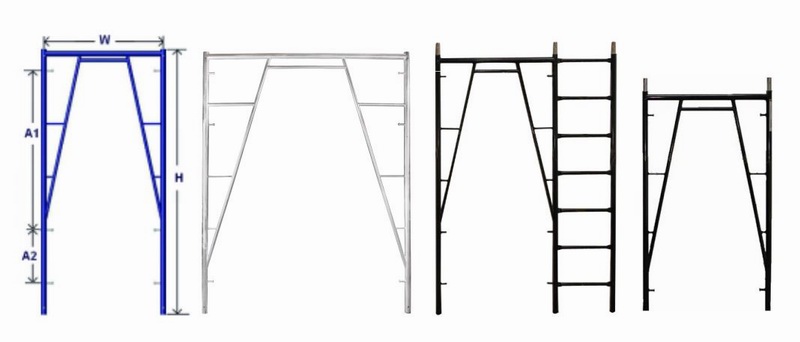

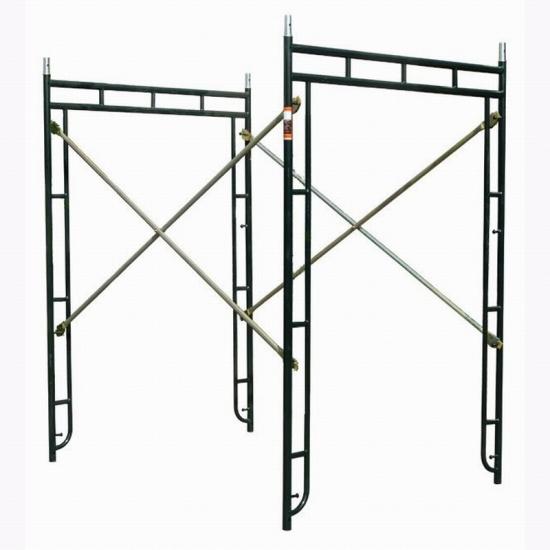

Walk Thru Frame / Arch Frame with Snap-on Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| TF.SO.268 | 2'x6'8" Walk Thru Frame | 610mm (2') | 2032mm (6'8") | 48",16" | 13.30 | 29.33 |
| TF.SO.264 | 2'x6'4" Walk Thru Frame | 610mm (2') | 1930mm (6'4") | 48",16" | 12.80 | 28.22 |
| TF.SO.368L | 3'x6'8" Walk Thru Frame w/ Ladder | 914mm (3') | 2032mm (6'8") | 48",16" | 22.90 | 50.49 |
| TF.SO.368 | 3'x6'8" Walk Thru Frame | 914mm (3') | 2032mm (6'8") | 48",16" | 15.10 | 33.30 |
| TF.SO.364 | 3'x6'4" Walk Thru Frame | 914mm (3') | 1930mm (6'4") | 48",16" | 14.70 | 32.41 |
| TF.SO.35 | 3'x5' Walk Thru Frame | 914mm (3') | 1524mm (5') | 48" | 12.70 | 28.00 |
| TF.SO.468 | 4'x6'8" Walk Thru Frame | 1219mm (4') | 2032mm (6'8") | 48",16" | 19.00 | 41.90 |
| TF.SO.45 | 4'x5' Walk Thru Frame | 1219mm (4') | 1524mm (5') | 48" | 13.10 | 28.89 |
| TF.SO.44 | 4'x4' Walk Thru Frame | 1219mm (4') | 1219mm (4') | 32" | 11.50 | 25.36 |
| TF.SO.564 | 5'x6'4" Walk Thru Frame | 1524mm (5') | 1930mm (6'4") | 48",16" | 19.60 | 43.22 |
| TF.SO.568 | 5'x6'8" Walk Thru Frame | 1524mm (5') | 2032mm (6'8") | 48",16" | 20.00 | 44.10 |

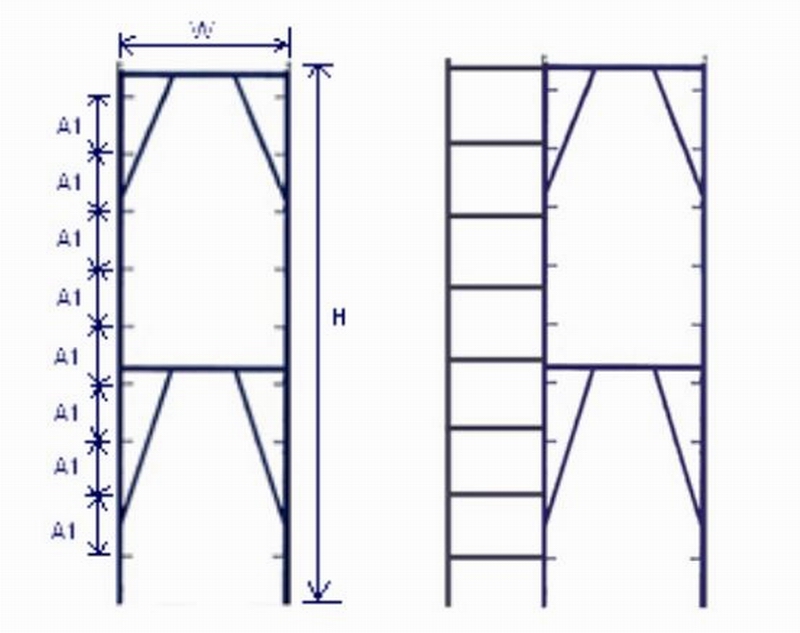

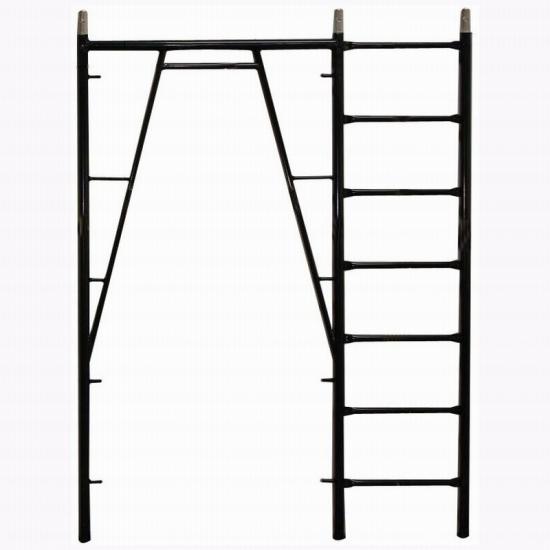

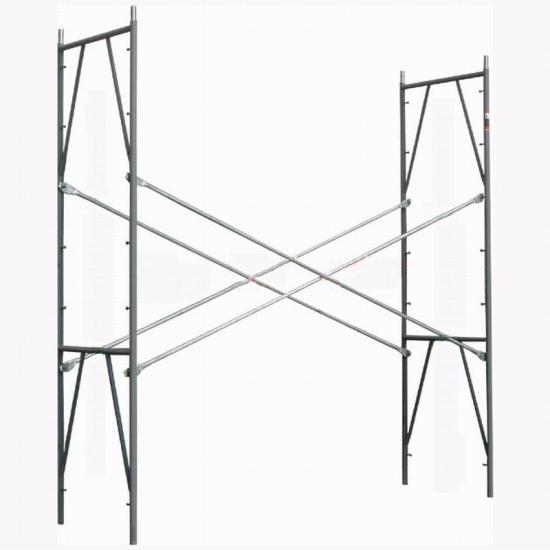

Apartment Frame with Snap-on Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| APF.SO.3118 | 3'x11'8" Apartment Frame | 914mm (3') | 3556mm (11'8") | 48",32",16" | 25.00 | 55.13 |
| APF.SO.3108 | 3'x10'8" Apartment Frame | 914mm (3') | 3251mm (10'8") | 48",32",16" | 23.50 | 51.82 |
| APF.SO.388 | 3'x8'8" Apartment Frame | 914mm (3') | 2642mm (8'8") | 48",32",16" | 19.80 | 43.66 |
| APF.SO.2108 | 2'x10'8" Apartment Frame | 610mm (2') | 3251mm (10'8") | 48",32",16" | 22.10 | 48.73 |
| APF.SO.288 | 2'x8'8" Apartment Frame | 610mm (2') | 2642mm (8'8") | 48",32",16" | 18.40 | 40.57 |
| APF.SO.3108L | 3'x10'8" Apartment Frame w/ Ladder | 914mm (3') | 3251mm (10'8") | 48",32",16" | 35.50 | 78.28 |
| APF.SO.388L | 3'x8'8" Apartment Frame w/ Ladder | 914mm (3') | 2642mm (8'8") | 48",32",16" | 29.60 | 65.27 |

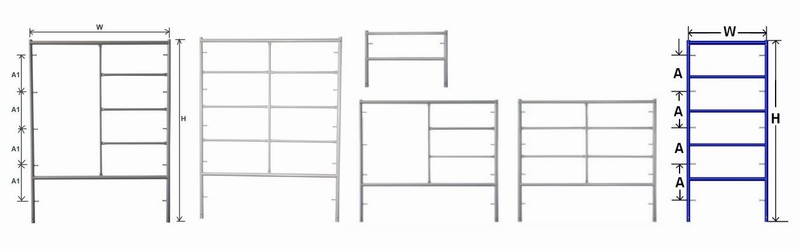

Masonery Frame / Box Frame with Snap-on Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| SBF.SO.568 | 5'x6'8" Single Box Frame | 1524mm (5') | 2032mm (6'8") | 48",32",16" | 20.60 | 45.42 |
| DBF.SO.568 | 5'x6'8" Double Box Frame | 1524mm (5') | 2032mm (6'8") | 48",32",16" | 22.90 | 50.49 |
| SBF.SO.55 | 5'x5' Single Box Frame | 1524mm (5') | 1524mm (5') | 32",16" | 16.90 | 37.26 |
| DBF.SO.55 | 5'x5' Double Box Frame | 1524mm (5') | 1524mm (5') | 32",16" | 18.40 | 40.57 |
| SBF.SO.54 | 5'x4' Single Box Frame | 1524mm (5') | 1219mm (4') | 32" | 14.60 | 32.19 |
| DBF.SO.54 | 5'x4' Double Box Frame | 1524mm (5') | 1219mm (4') | 32" | 15.40 | 33.96 |

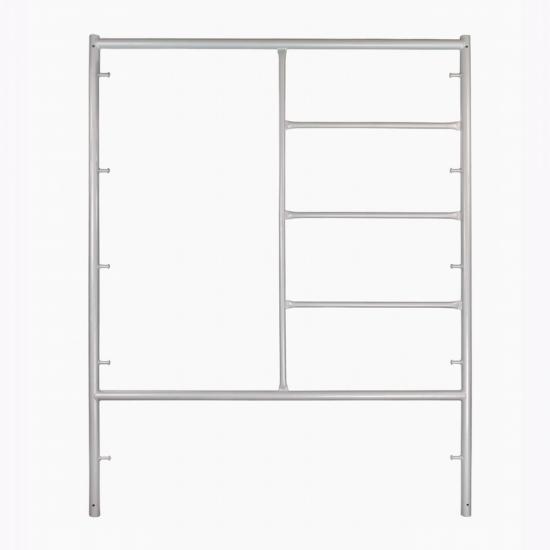

| BF.SO.540 | 5'x40" Box Frame | 1524mm (5') | 1016mm (40“) | 32" | 13.10 | 28.89 |
| BF.SO.53 | 5'x3' Box Frame | 1524mm (5') | 914mm (3') | 2' | 11.60 | 25.58 |
| BF.SO.440 | 4'x40" Box Frame | 1219mm (4') | 1016mm (40“) | 32" | 10.70 | 23.59 |
| BF.SO.420 | 4'x20" Box Frame | 1219mm (4') | 508mm (20”) | - | 8.30 | 18.30 |
| BF.SO.340 | 3'x40" Box Frame | 914mm (3') | 1016mm (40“) | 32" | 9.30 | 20.51 |
| BF.SO.320 | 3'x20" Box Frame | 914mm (3') | 508mm (20”) | - | 6.90 | 15.21 |
| BF.SO.240 | 2'x40" Box Frame | 610mm (2') | 1016mm (40“) | 32" | 7.90 | 17.42 |
| BF.SO.220 | 2'x20" Box Frame | 610mm (2') | 508mm (20”) | - | 5.60 | 12.35 |
| BF.SO.368 | 3'x6'8" Box Frame | 914mm (3') | 2032mm (6'8") | 48",32",16" | 17.40 | 38.37 |
| BF.SO.268 | 2'x6'8" Box Frame | 610mm (2') | 2032mm (6'8") | 48",32",16" | 14.50 | 31.97 |
| BF.SO.26 | 2'x6' Box Frame | 610mm (2') | 1829mm (6') | 48",32",16" | 13.50 | 29.77 |
Canopy Frame with Snap-on Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| CAF.SO.576 | 5'x7'6" Canopy Frame Snap-on | 1524mm (5') | 2286mm (7'6") | 48",24" | 25.10 | 55.35 |
| CAF.SO.676 | 6'x7'6" Canopy Frame Snap-on | 1829mm (6') | 2286mm (7'6") | 48",24" | 26.60 | 58.65 |

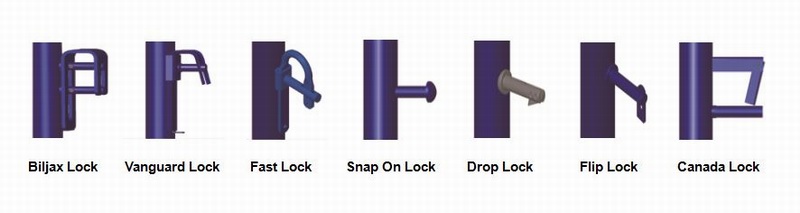

Typical Locking Device Options for American Scaffolding Frame
