Ring Lock Scaffolding System for Residential Construction

Galvanized Scaffolding Double Couplers

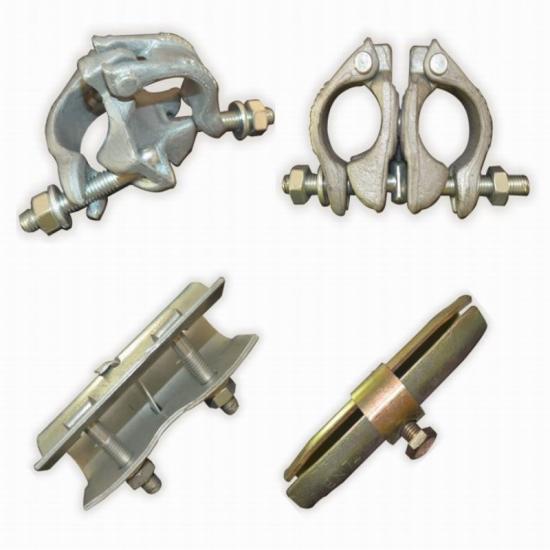

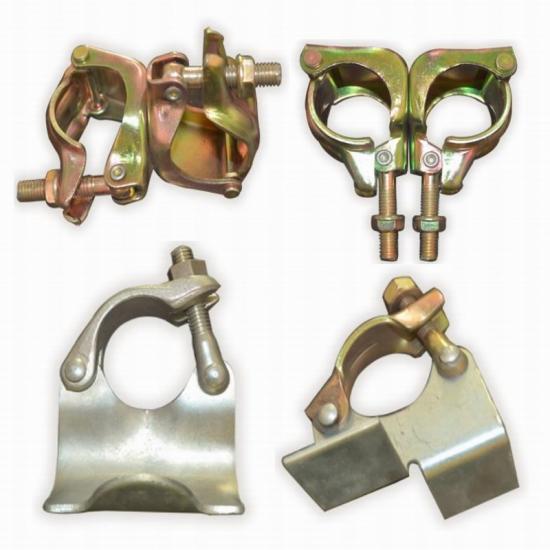

Scaffolding Couplers are the fittings for fixing and stabilizing the steel tubular scfolding.

Simple, orthogonal, sviwel,fixed couplings for worksite barrier, couplings for beams and many other types.

We supply various types of BS1139 / EN74 / AS 1576 / ANSI Standard forged or pressed Double Coupler, Swivel Clamp, Beam Clamp Girder, Sleeve Coupler, Putlog Coupler, Board Clamp...

Item NO.:
COUPLERS
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvanized Colour

Inquire now

Product Detail

Scaffolding Couplers

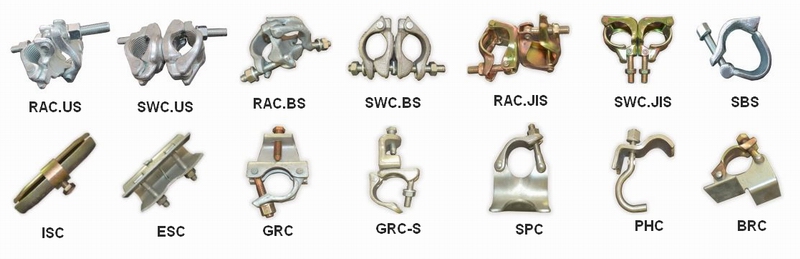

Code	Description	Weight(kg)	Weight(lbs)
RAC.US	Forged Right Angle Coupler (US)	1.52	3.35
SWC.US	Forged Swivel Coupler (US)	1.80	3.97
RAC.BS	Forged Right Angle Coupler (BS)	1.10	2.43
SWC.BS	Forged Swivel Coupler (BS)	1.20	2.65
RAC.JIS	Pressed Right Angle Coupler (JIS)	1.10	2.43
SWC.JIS	Pressed Swivel Coupler (JIS)	1.20	2.65
SBS	Side by Side Clamp	1.30	2.87
ISC	Internal Sleeve Coupler	0.70	1.54
ESC	External Sleeve Coupler	1.20	2.65
GRC	Fixed Gravlok Coupler	1.75	3.86
GRC-S	Swivel Gravlok Coupler	1.80	3.97
SPC	Single Putlog Coupler	0.80	1.76
HPC	Half Putlog Coupler	0.60	1.32
BRC	Board Retainer Clamp	0.65	1.43

Surface Treatment: Hot Dip Galvanized, Electric Galvanized
