Ring Lock Scaffolding System for Residential Construction

American Style Aluminum Plywood Plank for Scaffolding

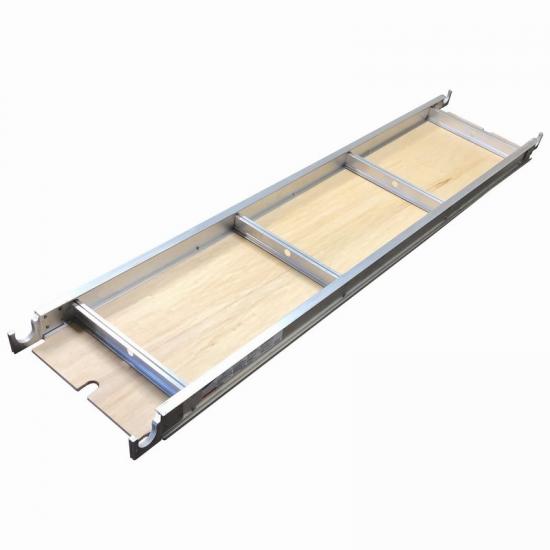

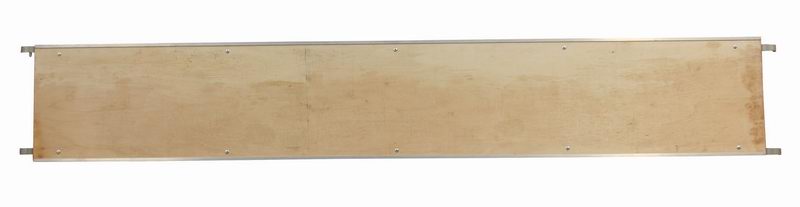

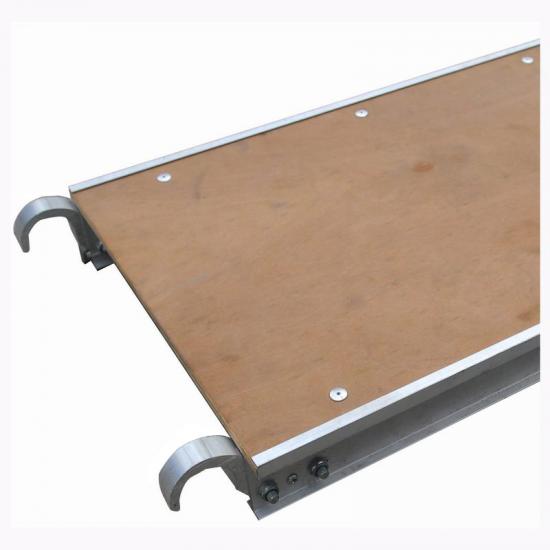

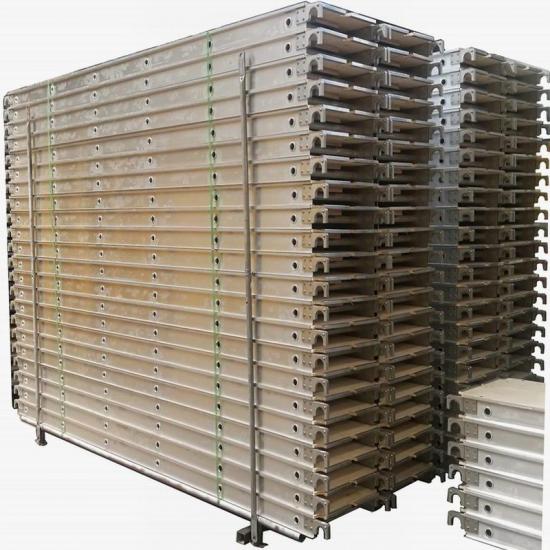

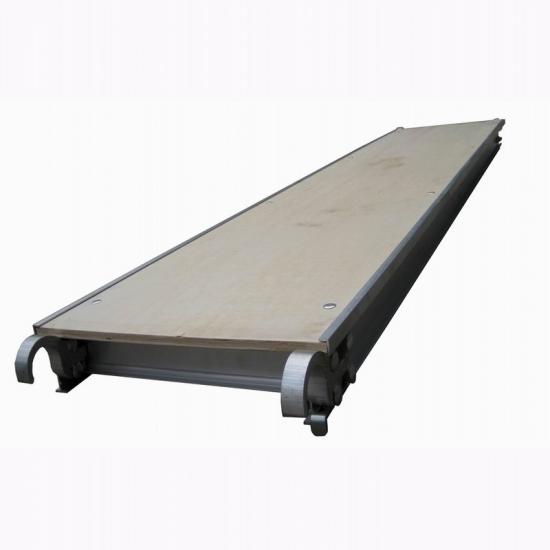

Aluminum Plywood Plank is made by 6061-T6 or 6082-T6 aluminum extrusion and fire-proof plywood panel, plank width 19" (483mm), plank length from 3' to 10'.


The plank complies with OHSA & ANSI A10.8 requirements. Safety load is 75lb/ft2.

  • Item NO.:

    APW
  • Lead Time:

    40days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    300PCS
  • Color:

    Self-colour
  • Material:

    Aluminium
  • Product Detail

19" Aluminum Plywood Plank (American Style)

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
APW.10 483x3048mm 19" x 10' 20.84  45.95
APW.8 483x2438mm 19" x 8' 16.30  35.94
APW.7 483x2134mm 19" x 7' 14.58  32.15
APW.6 483x1829mm 19" x 6' 12.86  28.36
APW.5 483x1524mm 19" x 5' 11.12  24.52
APW.4 483x1219mm 19" x 4' 9.40  20.73
APW.3 483x914mm 19" x 3' 7.30  16.10

* Material: Aluminium Alloy grade 6061-T6.

* Plywood Panel: t=1/2" (12.7mm), WBP glue, fireproofing.
