CANADIAN LOCK SERIES FRAME SCAFFOLDING
Features:
* Material Specification: Steel grade Q235, frame leg OD.43x2.5mm
* Frame Width: 1524mm(5'), 1219mm(4'), 914mm(3')
* Locking Device: Canadian Lock
* First lock down 152mm(6") on frame leg
* Locking Space: 1219mm(4'), 914mm(3'), 610mm(2')
Coupling Pin: CP1 (Coupling Pin with 1" Collar) or CP2 (Taped Coupling Pin with 1" Collar)
* Finishing options: Powder Coated, Hot Dip Galvanized

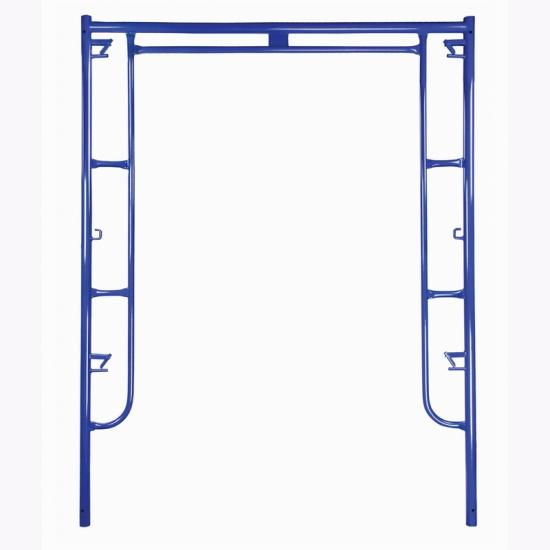

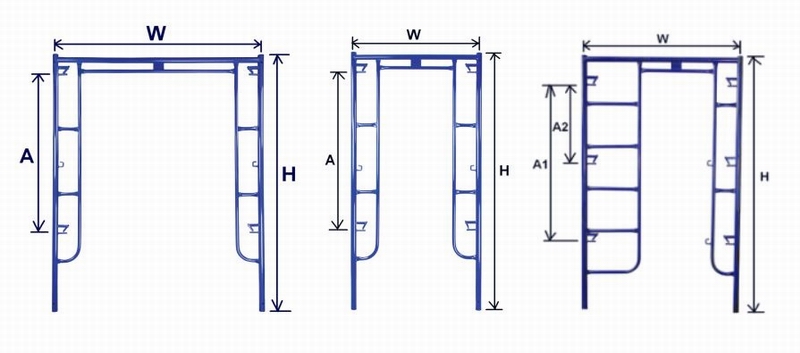

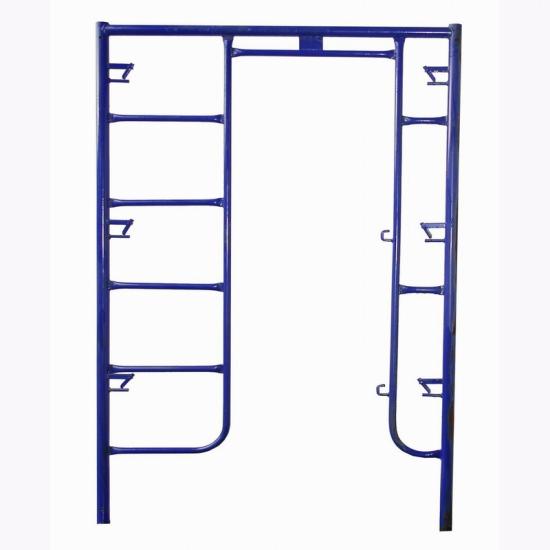

Arch Frame / Walk Thru Frame with Canadian Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| TF.CAL.464 | 4'x6'4" Walk Thru Frame | 1219mm (4') | 1930mm (6'4") | 48" | 18.60 | 41.01 |
| TF.CAL.466 | 4'x6'6" Walk Thru Frame | 1219mm (4') | 1981mm (6'6") | 48" | 18.85 | 41.55 |
| TF.CAL.564 | 5'x6'4" Walk Thru Frame | 1524mm (5') | 1930mm (6'4") | 48" | 19.67 | 43.37 |
| TF.CAL.566 | 5'x6'6" Walk Thru Frame | 1524mm (5') | 1981mm (6'6") | 48" | 20.23 | 44.6 |
| TF.CAL.366 | 3'x6'6" Walk Thru Frame | 914mm (3') | 1981mm (6'6") | 48" | 17.77 | 39.18 |
| TF.CAL.364 | 3'x6'4" Walk Thru Frame | 914mm (3') | 1930mm (6'4") | 48" | 17.52 | 38.62 |
| TF.CAL.3964 | 3'9"x6'4" Walk Thru Frame | 1143mm (3'9") | 1930mm (6'4") | 48" | 18.32 | 40.39 |
| TF.CAL.3966 | 3'9"x6'6" Walk Thru Frame | 1143mm (3'9") | 1981mm (6'6") | 48" | 20.12 | 44.36 |

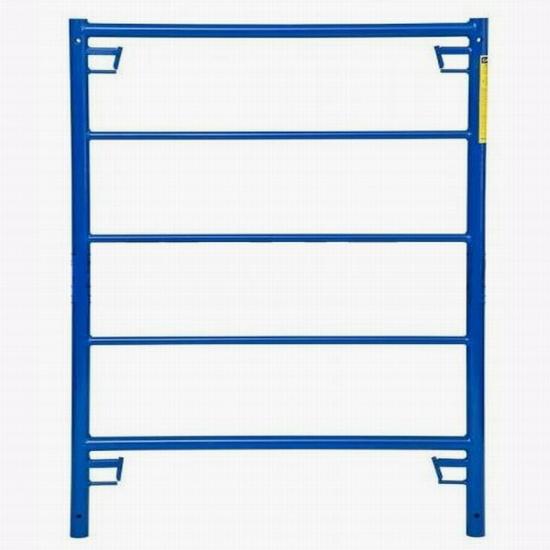

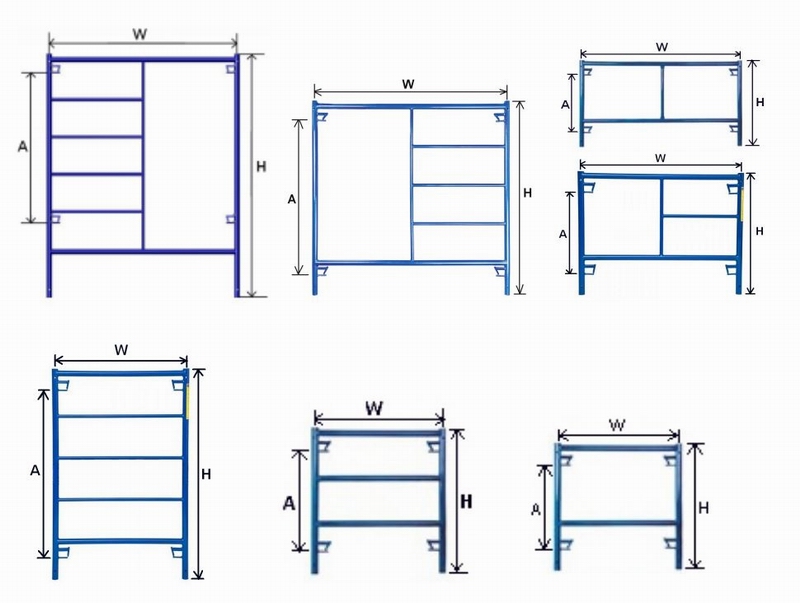

Mason Frame / Box Frame / Ladder Frame with Canada Lock
| Code | Description | Width (W) | Height (H) | Lock Space (A) | Weight(kg) | Weight(lbs) |
| MF.CAL.56 | 5'x6' Mason Frame | 1524mm (5') | 1829mm (6') | 48" | 20.22 | 44.58 |
| MF.CAL.564 | 5'x6'4" Mason Frame | 1524mm (5') | 1930mm (6'4") | 48" | 22.22 | 49 |
| MF.CAL.45 | 4'x5' Mason Frame | 1219mm (4') | 1524mm (5') | 48" | 17.16 | 37.84 |
| MF.CAL.55 | 5'x5' Mason Frame | 1524mm (5') | 1524mm (5') | 48" | 19.17 | 42.26 |
| MF.CAL.43 | 4'x3' Mason Frame | 1219mm (4') | 914mm (3') | 24" | 12.29 | 27.09 |
| MF.CAL.44 | 4'x4' Mason Frame | 1219mm (4') | 1219mm (4') | 36" | 14.13 | 31.15 |
| MF.CAL.53 | 5'x3' Mason Frame | 1524mm (5') | 914mm (3') | 24" | 17.16 | 37.84 |
| MF.CAL.531 | 5'x31" Mason Frame | 1524mm (5') | 787mm (31") | 24" | 12.46 | 27.48 |
| MF.CAL.35 | 3'x5' Mason Frame | 914mm (3') | 1524mm (5') | 48" | 13.99 | 30.85 |
| MF.CAL.34 | 3'x4' Mason Frame | 914mm (3') | 1219mm (4') | 36" | 12.47 | 27.49 |
| MF.CAL.33 | 3'x3' Mason Frame | 914mm (3') | 914mm (3') | 24" | 10.34 | 22.79 |
| MF.CAL.315 | 31"x5' Mason Frame | 787mm (31") | 1524mm (5') | 48" | 13.16 | 29.02 |
| MF.CAL.313 | 31"x3' Mason Frame | 787mm (31") | 914mm (3') | 24" | 8.46 | 18.66 |

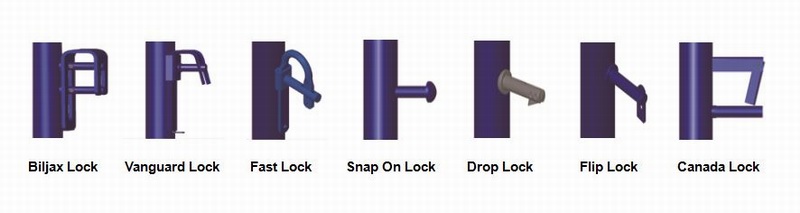

Typical Locking Device Options for American Scaffolding Frame.
