Powder Coated Angle Iron Side Bracket with Bell Hanger

Side brackets allow for the extension of the scaffold platform beyond the legs, usually by a multiple of plank widths. When used with frame scaffolds, the side bracket is placed at the leg and is parallel to the frame or bearer.

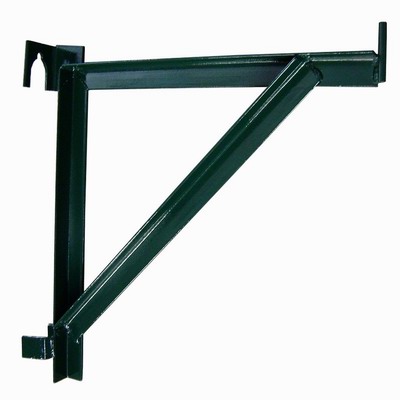

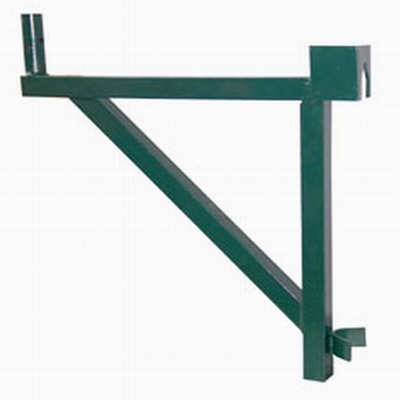

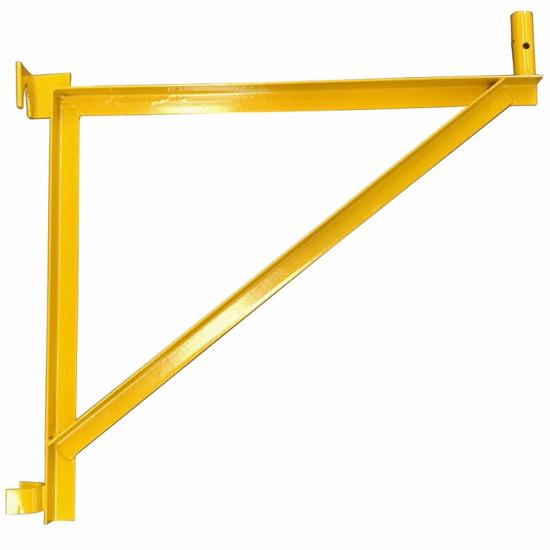

Angle Iron Side Bracket is the kind of bracket made by angle iron, with bell hanger.

Item NO.:
SBAS
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
200PCS
Color:
Powder Coated: Blue, Red, Orange, Yellow
Ｍaterial:
Steel

Inquire now

Product Detail

Angle Iron Side Bracket

Code	Description	Weight(kg)	Weight(lbs)
SBAS.12S	12" Side Bracket Angle Iron with Stud/Bell Hanger	3.29	7.25
SBAS.20S	20" Side Bracket Angle Iron with Stud/Bell Hanger	4.94	10.89
SBAS.24S	24" Side Bracket Angle Iron with Stud/Bell Hanger	5.35	11.80
SBAS.30S	30" Side Bracket Angle Iron with Stud/Bell Hanger	7.01	15.46
SBAS.12P	12" Side Bracket Angle Iron with Coupling Pin/Bell Hanger	4.06	8.95
SBAS.20P	20" Side Bracket Angle Iron with Coupling Pin/Bell Hanger	5.06	11.16
SBAS.24P	24" Side Bracket Angle Iron with Coupling Pin/Bell Hanger	5.28	11.64
SBAS.30P	30" Side Bracket Angle Iron with/Coupling Pin/Bell Hanger	7.12	15.70

Surface Finishing: Powder Coated
