Shoring Prop Cover Thread

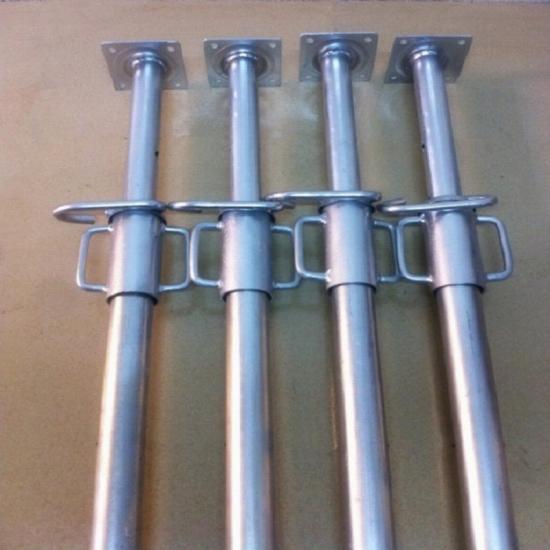

Shoring Prop is a kind of adjustable vertical pipe suport for concrete formwork suporting, is widely used for building, tunnel, mine construction.


  • Item NO.:

    PR.DC
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou
  • Payment:

    T/T
  • Min order:

    500
  • Color:

    Orange, Blue, Yellow, Red
  • Product Detail

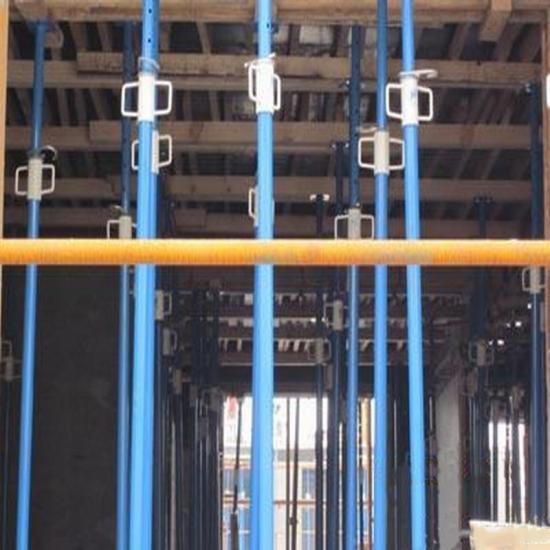

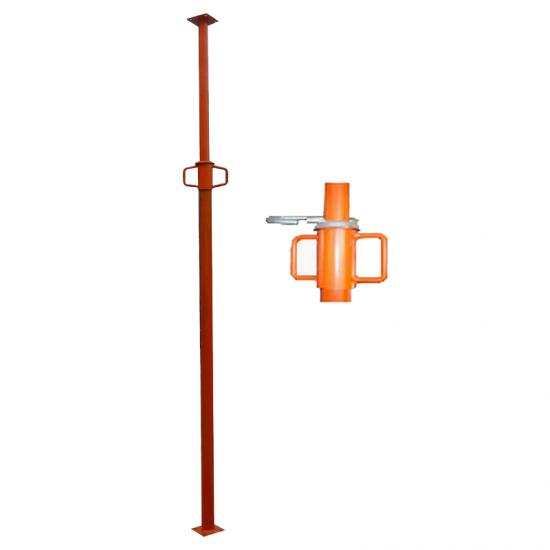

European Type of Shoring Prop is a kind of cover thread vertical shoring scaffolding for construction. Made by OD48mm Inner Tube / OD56mm Outer Tube or OD41mm Inner Tube / OD48mm Outer Tube, with Prop Sleeve Cup, Prop G Pins, Prop Base Plate and Top Plate (Top U Head / Fork Head) use as vertical support for concrete formwork system of slab formwork, roof formwork, table formwork, wall formwork , beam formwork and construction scaffolding buildings.


Product Details:

Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=2.5mm

Code Size (Metric) Size (Imperial) Specification Weight(kg) Weight(lbs)
MDPR.18.DC2.5 1100-1800mm 3'7"--5'11" Outer pipe OD56x2.5mm, Inner pipe OD48x2.5mm, End plate120x120x5mm, Cover thread. Grade Q235 9.19  20.25
MDPR.29.DC2.5 1600-2900mm 5'3"--9'6" 12.57  27.71
MDPR.32.DC2.5 1800-3200mm 5'11"--10'6" 13.46  29.67
MDPR.36.DC2.5 2000-3600mm 6'7"--11'10" 14.68  32.37
MDPR.40.DC2.5 2200-4000mm 7'3"--13'2" 15.90  35.06
MDPR.45.DC2.5 2500-4500mm 8'2--14'9" 17.40  38.37
MDPR.50.DC2.5 2900-5000mm 9'6"--16'5" 18.85  41.57


Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=2.2mm

Code Size (Metric) Size (Imperial) Specification Weight(kg) Weight(lbs)
MDPR.18.DC2.2 1100-1800mm 3'7"--5'11" Outer pipe OD56x2.2mm, Inner pipe OD48x2.2mm, End plate120x120x5mm, Cover thread. 8.48  18.70
MDPR.29.DC2.2 1600-2900mm 5'3"--9'6" 11.25  24.81
MDPR.32.DC2.2 1800-3200mm 5'11"--10'6" 12.26  27.04
MDPR.36.DC2.2 2000-3600mm 6'7"--11'10" 13.34  29.42
MDPR.40.DC2.2 2200-4000mm 7'3"--13'2" 14.42  31.80
MDPR.45.DC2.2 2500-4500mm 8'2--14'9" 15.75  34.73
MDPR.50.DC2.2 2900-5000mm 9'6"--16'5" 17.04  37.57


Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=2.0mm

Code Size (Metric) Size (Imperial) Specification Weight(kg) Weight(lbs)
MDPR.18.DC2.0 1100-1800mm 3'7"--5'11" Outer pipe OD56x2.0mm, Inner pipe OD48x2.0mm, End plate120x120x5mm, Cover thread. 8.00  17.65
MDPR.29.DC2.0 1600-2900mm 5'3"--9'6" 10.51  23.18
MDPR.32.DC2.0 1800-3200mm 5'11"--10'6" 11.46  25.26
MDPR.36.DC2.0 2000-3600mm 6'7"--11'10" 12.44  27.44
MDPR.40.DC2.0 2200-4000mm 7'3"--13'2" 13.43  29.61
MDPR.45.DC2.0 2500-4500mm 8'2--14'9" 14.64  32.29
MDPR.50.DC2.0 2900-5000mm 9'6"--16'5" 15.82  34.88


Medium Duty Steel Prop / Shoring Prop / Post Shore (Cover thread), t=1.8mm

Code Size (Metric) Size (Imperial) Specification Weight(kg) Weight(lbs)
MDPR.18.DC1.8 1100-1800mm 3'7"--5'11" Outer pipe OD56x1.8mm, Inner pipe OD48x1.8mm, End plate120x120x5mm, Cover thread. 7.52  16.59
MDPR.29.DC1.8 1600-2900mm 5'3"--9'6" 9.77  21.55
MDPR.32.DC1.8 1800-3200mm 5'11"--10'6" 10.64  23.47
MDPR.36.DC1.8 2000-3600mm 6'7"--11'10" 11.54  25.44
MDPR.40.DC1.8 2200-4000mm 7'3"--13'2" 12.43  27.40
MDPR.45.DC1.8 2500-4500mm 8'2--14'9" 13.52  29.82
MDPR.50.DC1.8 2900-5000mm 9'6"--16'5" 14.58  32.16
